DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH/ CHANGEOVER SWITCH)

Component Inspection

1.CHECK MIRROR SWITCH & CHANGEOVER SWITCH

  1.  Turn ignition switch OFF.
  2.  Disconnect door mirror remote control switch connector.
  3.  Check door mirror remote control switch.

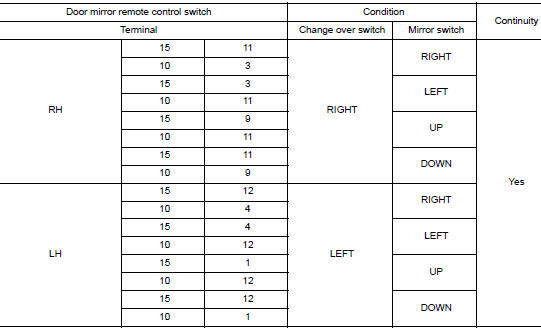

Check mirror switch & changeover switch

Is the inspection result normal? YES >> Inspection End.

NO >> Replace door mirror remote control switch. Refer to MIR-27, "Removal and Installation".
