Nissan Rogue Service Manual: Diagnosis system (BCM) (with intelligent key system)

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Power Window Control System / System description / Diagnosis system (BCM) (with intelligent key system)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode	Description
Ecu Identification	The BCM part number is displayed.
Self Diagnostic Result	The BCM self diagnostic results are displayed.
Data Monitor	The BCM input/output data is displayed in real time.
Active Test	The BCM activates outputs to test components.
Work support	The settings for BCM functions can be changed.
Configuration	The vehicle specification can be read and saved. The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr	The result of transmit/receive diagnosis of CAN communication is displayed.

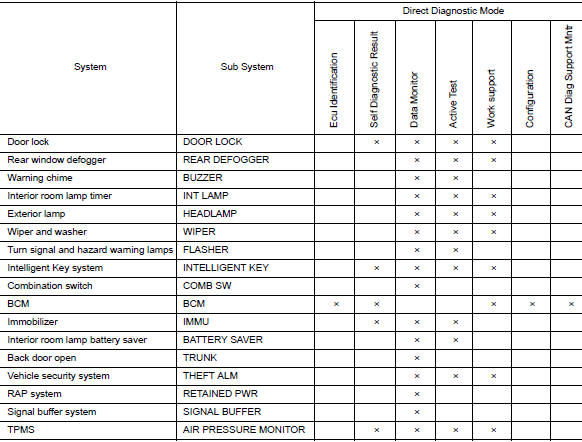

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Application item

RETAINED PWR

RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

DATA MONITOR

Monitor Item [Unit]	Description
DOOR SW-DR [On/Off]	Indicates condition of front door switch LH.
DOOR SW-AS [On/Off]	Indicates condition of front door switch RH.
