Nissan Rogue Service Manual: Component parts

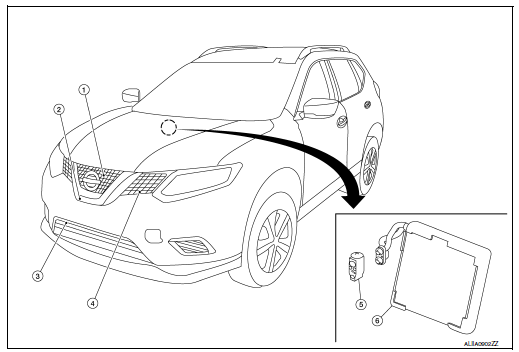

Component Parts Location

Component Parts Location

  1. Condenser
  2. Compressor
  3. Refrigerant pressure sensor
  4. Liquid tank
  5. Expansion valve
  6. Evaporator

Component Description

Component

Description

Compressor Intakes, compresses and discharges refrigerant to circulate refrigerant inside the refrigerant system.
Condenser Cools refrigerant discharged from compressor and transforms it to liquid refrigerant.
Liquid tank Eliminates foreign matter in refrigerant and stores temporarily liquid refrigerant.
Refrigerant pressure sensor Refer to EC-482, "Component Function Check".
Expansion valve Transforms high-pressure liquid refrigerant to mist form low-pressure liquid refrigerant.
Evaporator The mist form liquid refrigerant transforms to gas by evaporation by the air conveyed from blower motor. The air is cooled by the heat by evaporation.
System description
...

System
System Diagram Compressor Pressure relief valve Liquid tank Refrigerant pressure sensor Condenser Expansion valve Evaporator Blower motor  High-pressure gas &n ...
