Nissan Rogue Service Manual: Wiring diagram

EPS SYSTEM

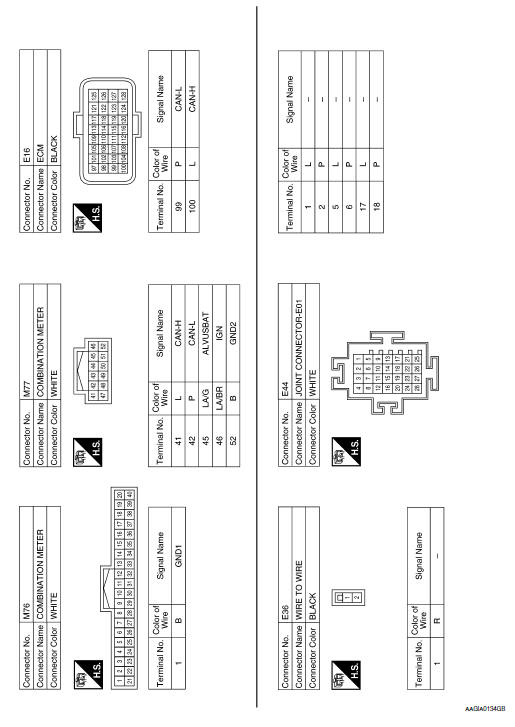

Wiring Diagram

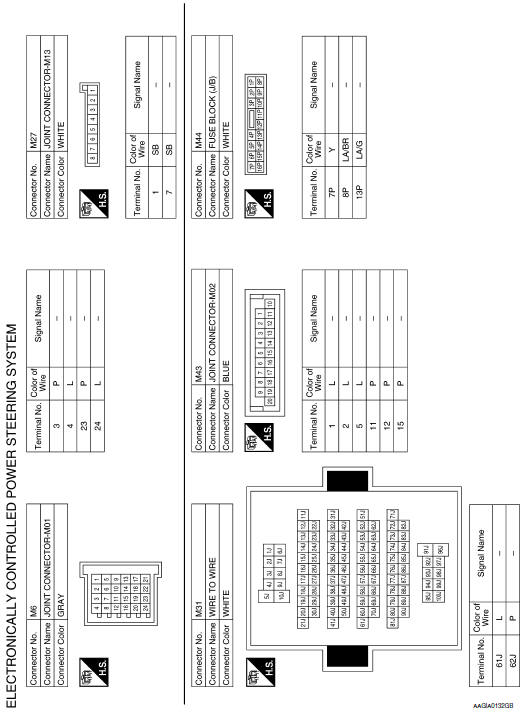

Wiring Diagram

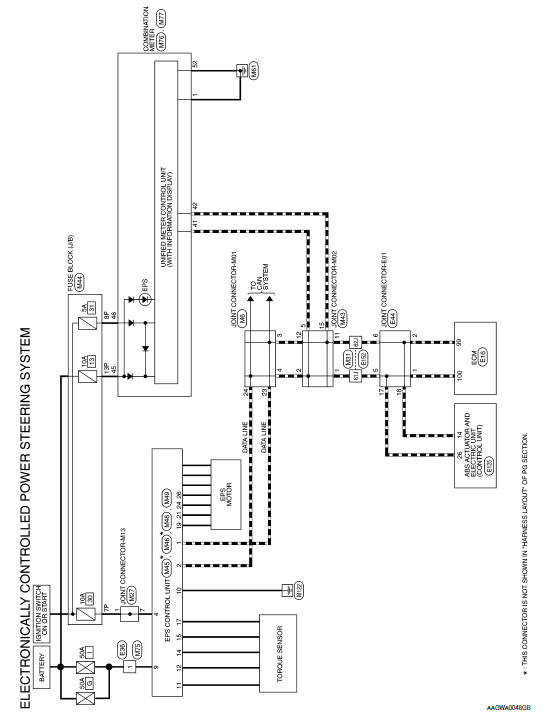

Wiring Diagram

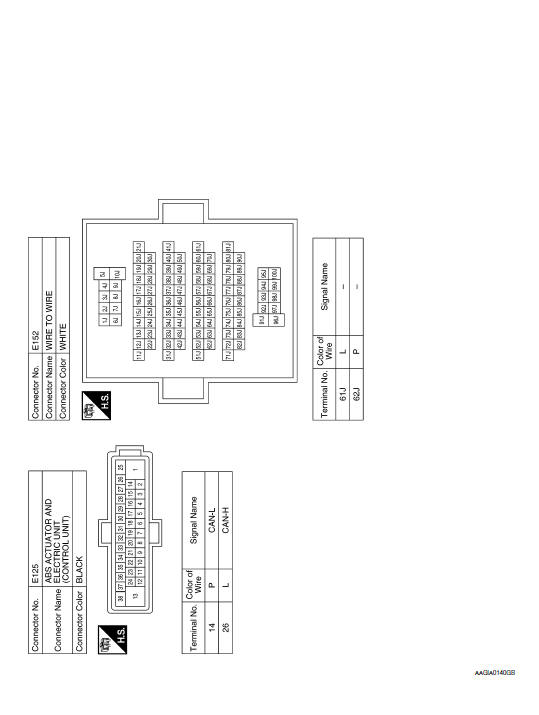

Wiring Diagram

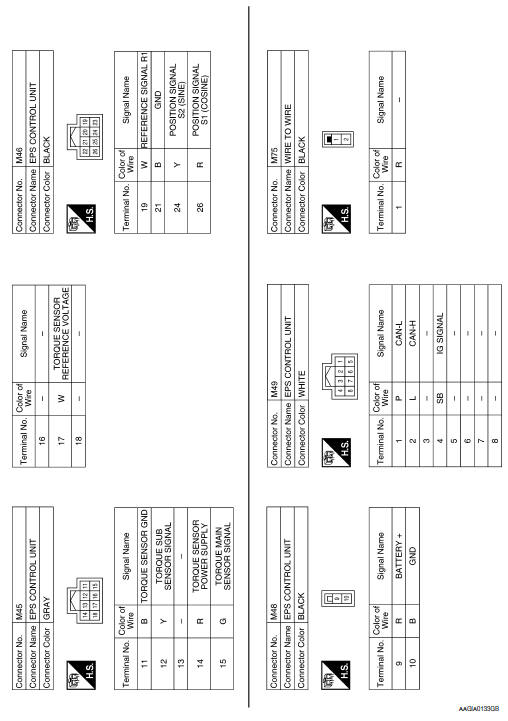

Wiring Diagram

Wiring Diagram

ECU diagnosis information
EPS CONTROL UNIT Reference Value VALUES ON THE DIAGNOSIS TOOL CAUTION: The output signal indicates the EPS control unit calculation data. The normal values will be displayed even in the event t ...

Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW Work Flow DETAILED FLOW 1.COLLECT THE INFORMATION FROM THE CUSTOMER Get the detailed information from the customer about the symptom (the condition and the environm ...
