Nissan Rogue Service Manual: Wiring diagram

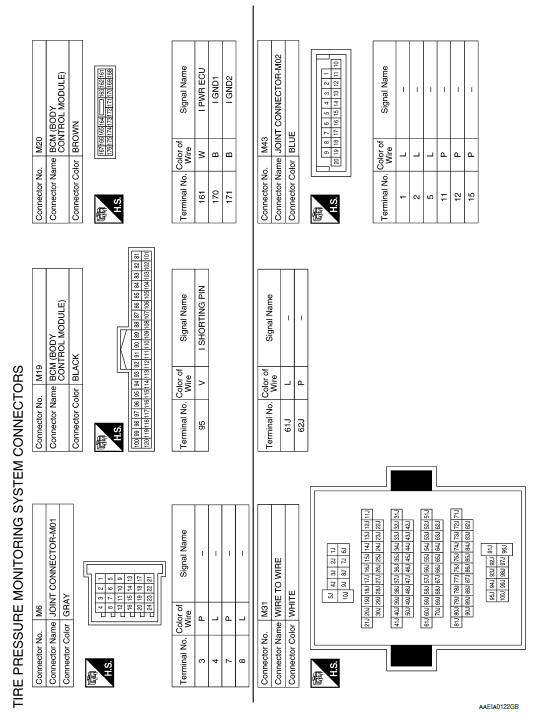

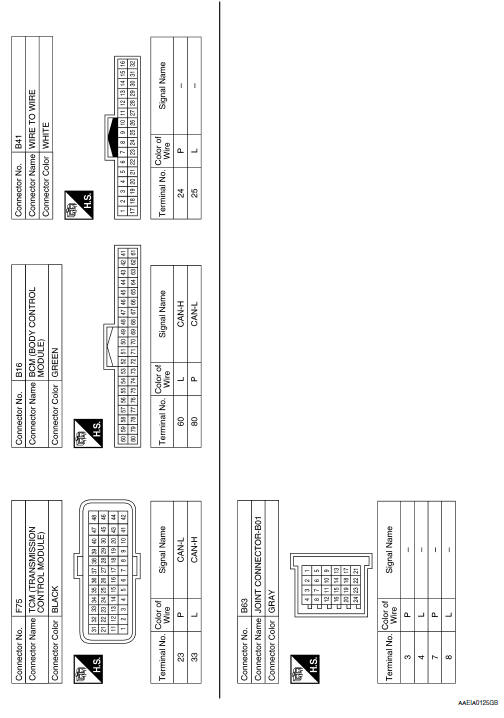

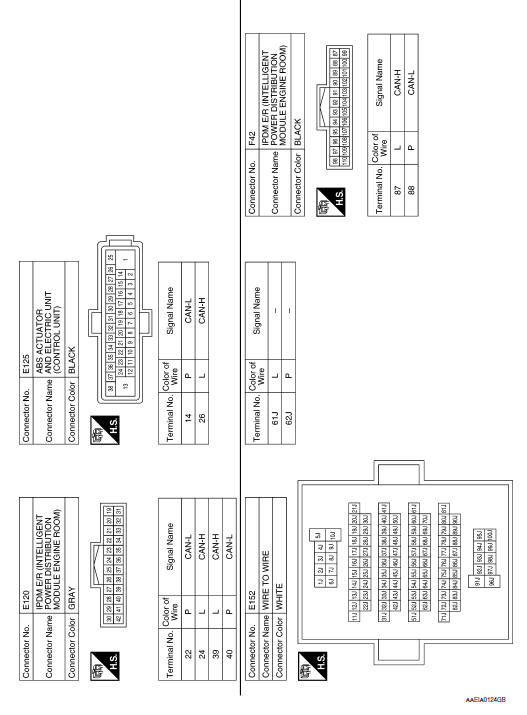

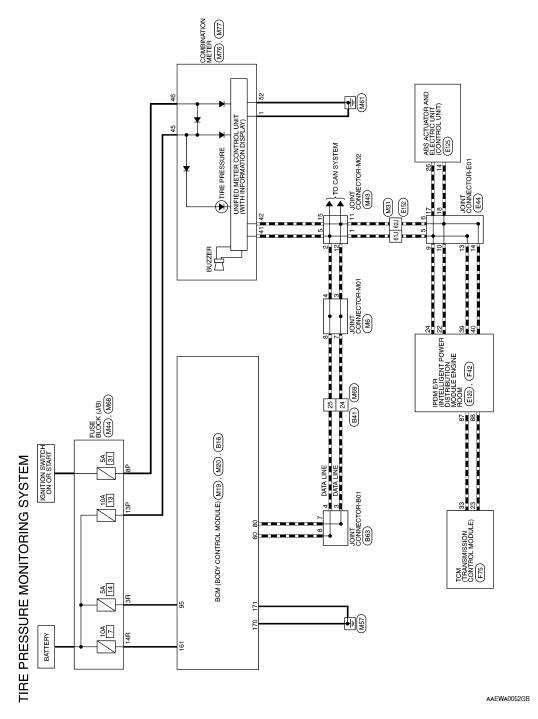

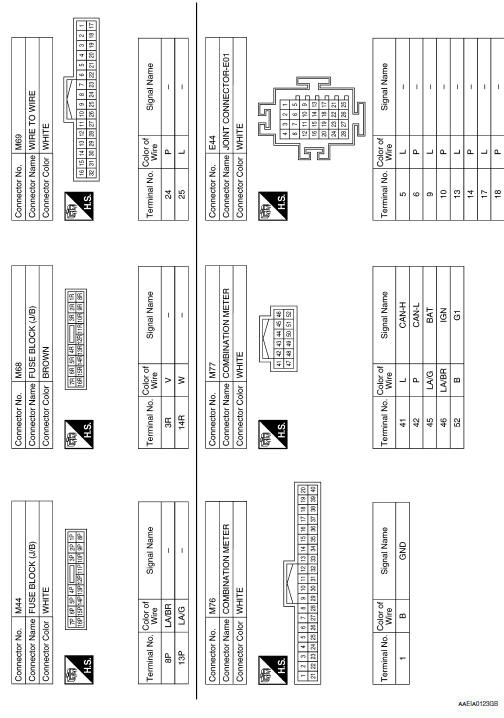

TIRE PRESSURE MONITORING SYSTEM

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
BCM List of ECU Reference ...

Basic inspection
...
