VENTILATION SYSTEM

System Description

OUTLINE

Automatic A/C

The ventilation system is controlled by the A/C switch assembly. For details of the automatic air conditioner system, refer to HAC-10, "System Description".

Manual A/C

The ventilation system is controlled by the front air control. For details of the manual air conditioner system, refer to HAC-118, "System Description".

AIR FLOW

Front

Front

Rear

Rear

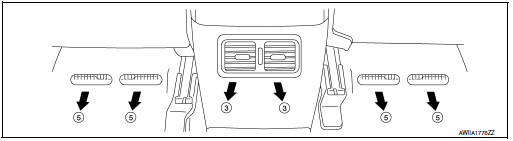

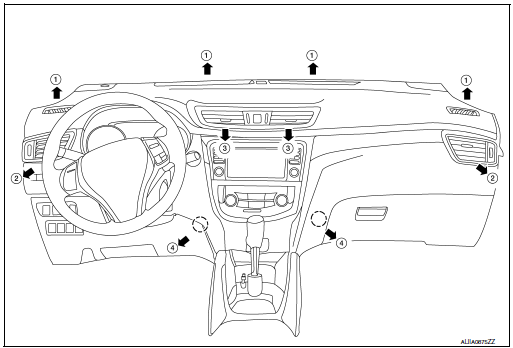

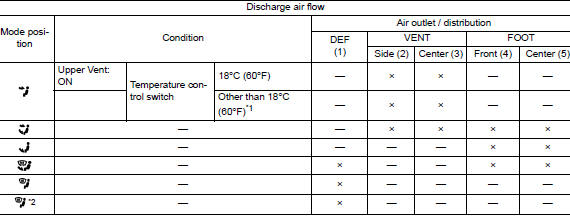

Air flow

*1: Air flow is also supplied to front foot until passenger room temperature stabilizes when temperature setting is other than 18°C (60°F). At that time, air flowing is the same as 18°C (60°F) setting.
*2: During automatic defogging control.
