Nissan Rogue Service Manual: Roof rack

Exploded View

Exploded View

  1. Roof rack rear bolt cover
  2. Roof rack front bolt cover
  3. Roof rack
  4.  Roof side molding
  5.  Back door hinge cover

Metal Clip
Pawl

Removal and Installation

REMOVAL

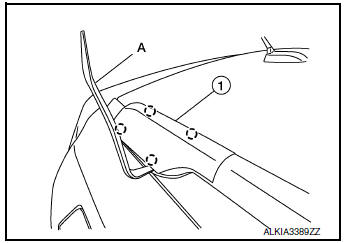

  1.  Release pawls and remove roof rack front and rear cover (1) using suitable tool (A).

    : Pawl

Removal

  1. Remove bolts and remove roof rack.

INSTALLATION

Installation is in the reverse order of removal.
