Nissan Rogue Service Manual: Preparation

Special Service Tools

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name

Description

— (J-39570) Chassis Ear

Locating the noise
— (J-50397) NISSAN Squeak and Rattle Kit

Repairing the cause of noise
— (J-46534) Trim Tool Set

Removing trim components

Commercial Service Tools

(TechMate No.) Tool name

Description

(J-39565) Engine Ear

Locating the noise
( — ) Power Tool

Loosening nuts, screws and bolts

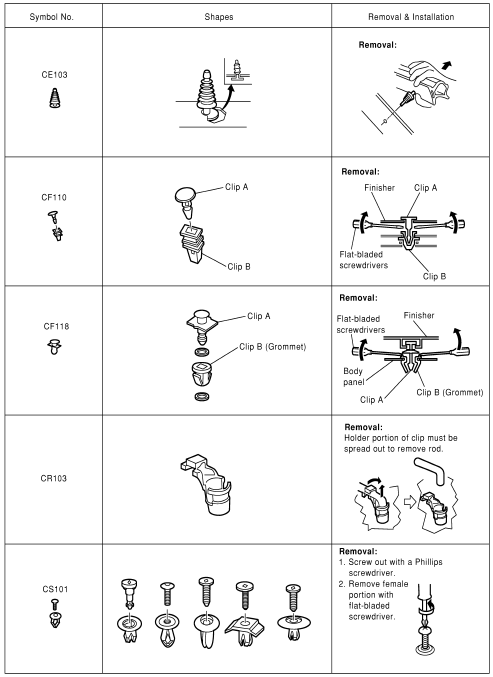

CLIP LIST

Descriptions for Clips

Replace any clips which are damaged during removal or installation.

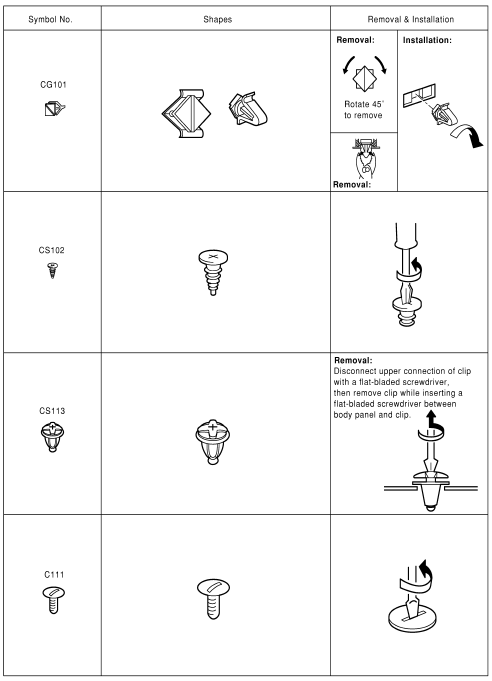

Descriptions for Clips

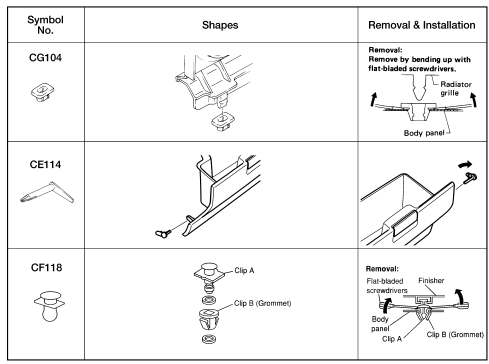

Descriptions for Clips

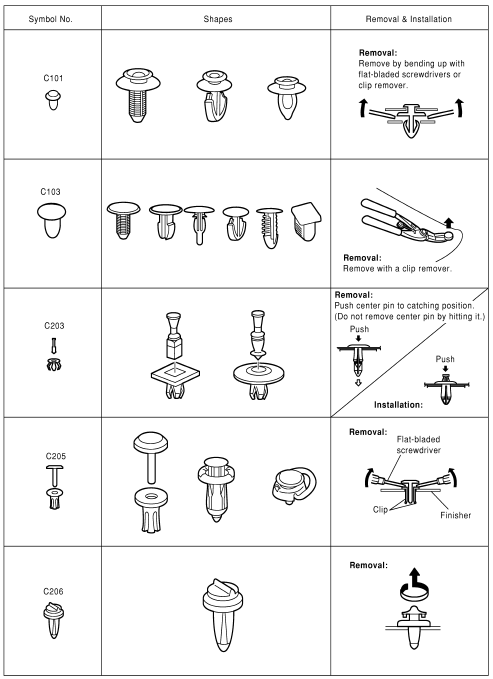

Descriptions for Clips

Descriptions for Clips

Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONE ...

Symptom diagnosis
SQUEAK AND RATTLE TROUBLE DIAGNOSES Work Flow CUSTOMER INTERVIEW Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diagnostic Workshee ...

Other materials:

Removal and installation
BCM (BODY CONTROL MODULE) Removal and Installation CAUTION: Before replacing the BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to BCS-120, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Procedure". REMOVAL  Disc ...

Sample/Wiring Diagram -Example-
Each section includes wiring diagrams. Description Number Item Description 1 Power supply This means the power supply of fusible link or fuse. 2 Fuse “/” means the fuse. 3 Current rating of fusible ...

Engine compartment
CAUTIONNever use a fuse of a higher or lower amperage rating than specified on the fuse box cover. This could damage the electrical system or cause a fire. Two types of fuses are used. Type A is used in the fuse boxes in the engine compartment. Type B is used in the passe ...
