Nissan Rogue Service Manual: Power supply routing circuit

Nissan Rogue Service Manual / Electrical & power control / Power Supply, Ground & Circuit Elements / DTC/circuit diagnosis / Power supply routing circuit

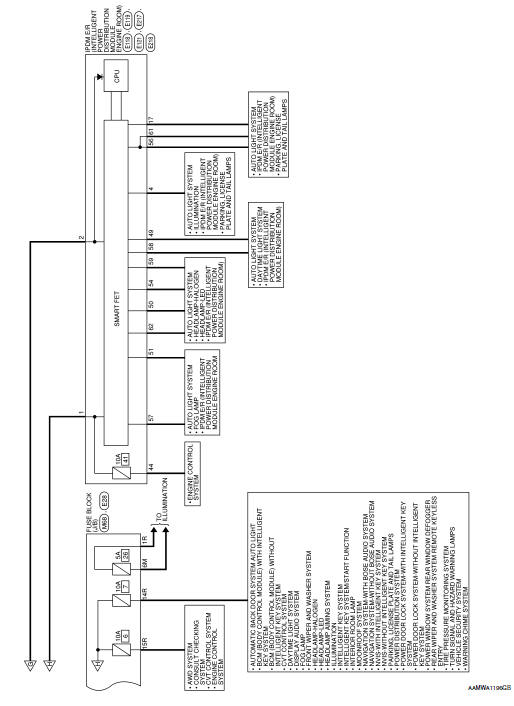

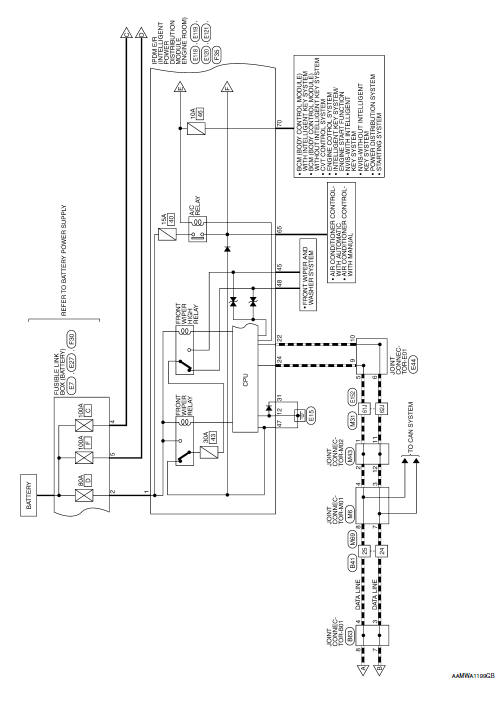

Wiring Diagram —Battery Power Supply —

Battery Power Supply

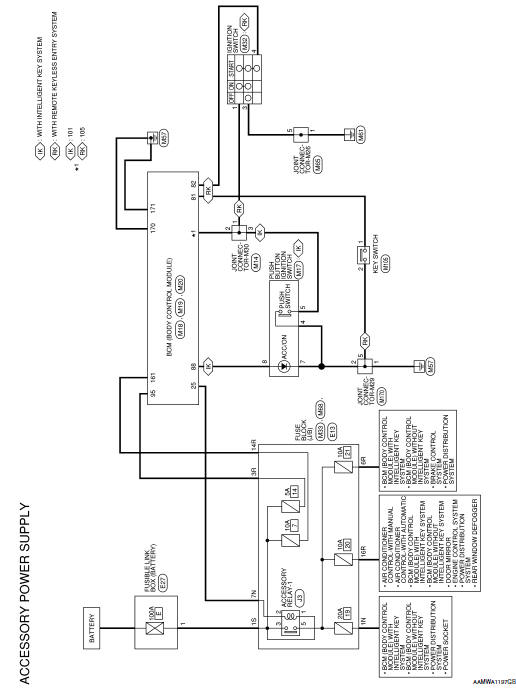

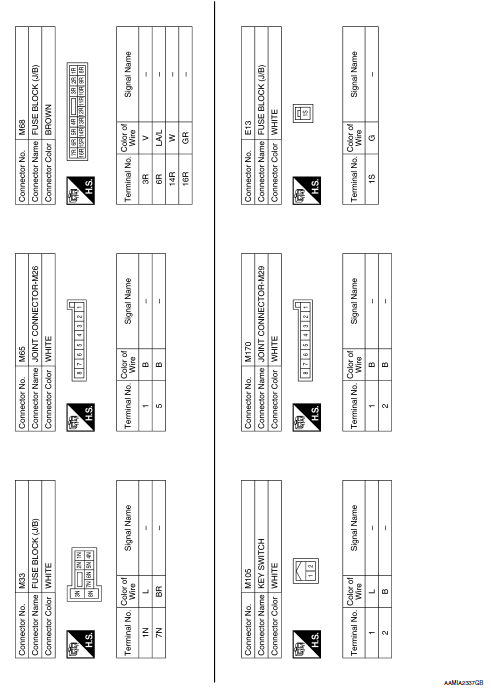

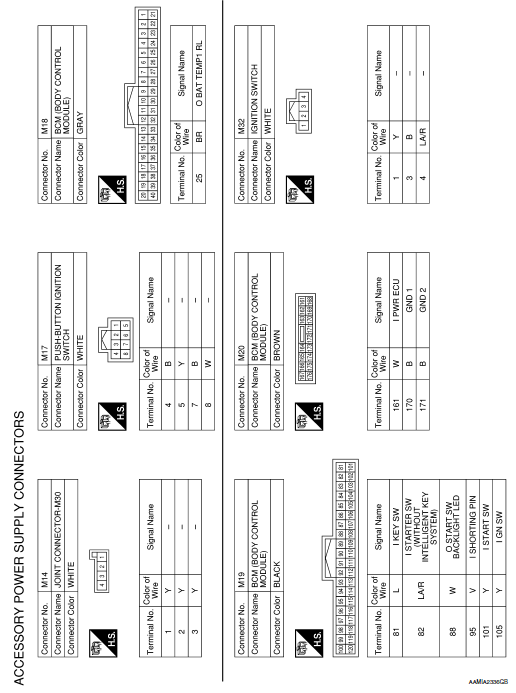

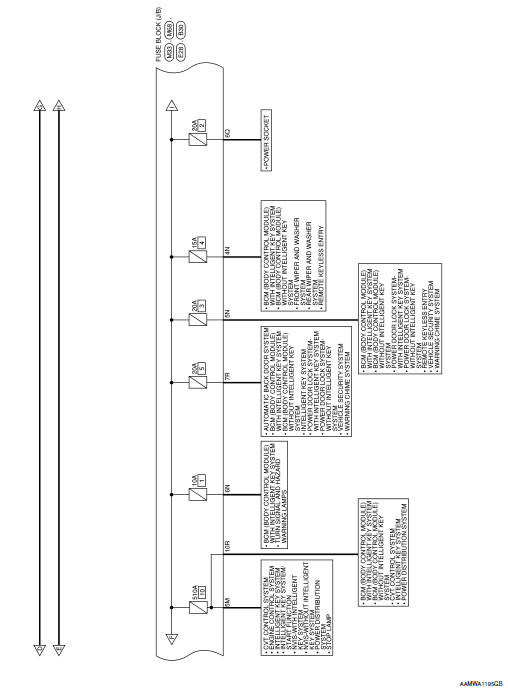

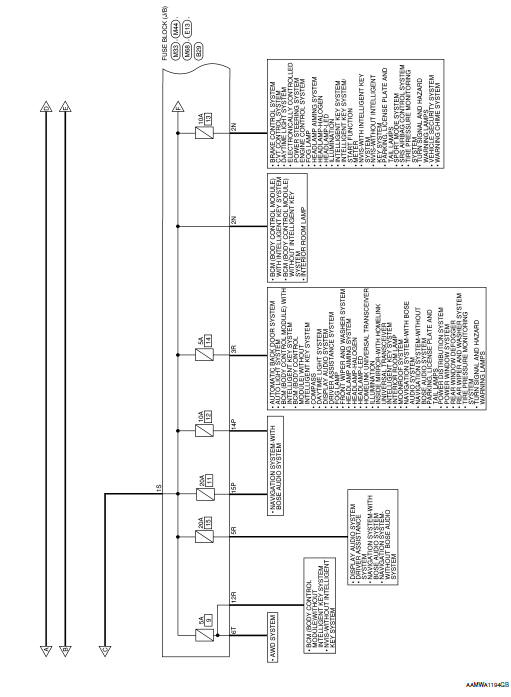

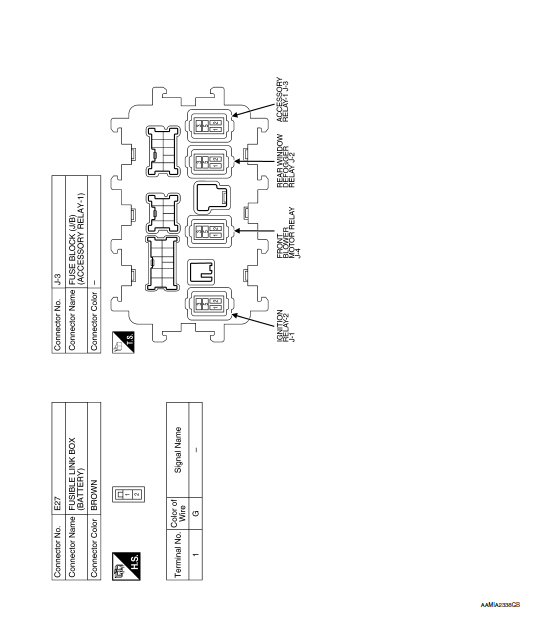

Wiring Diagram —Accessory Power Supply —

Accessory Power Supply

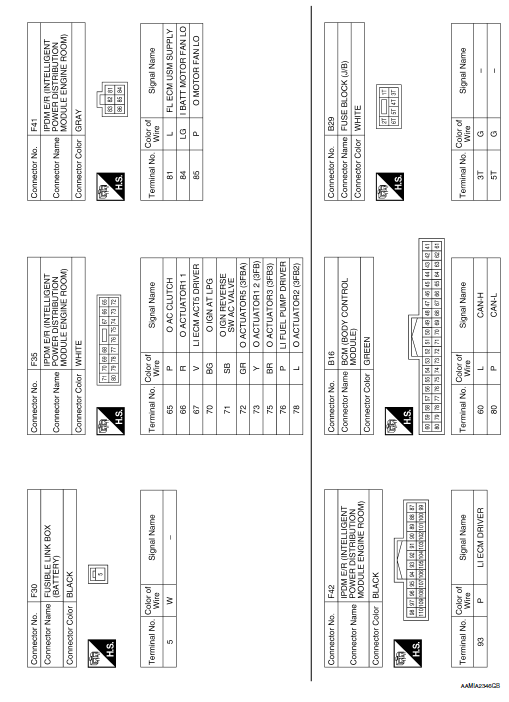

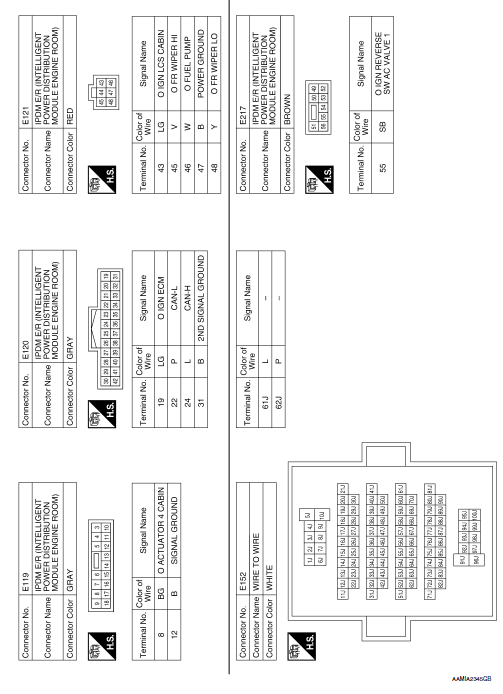

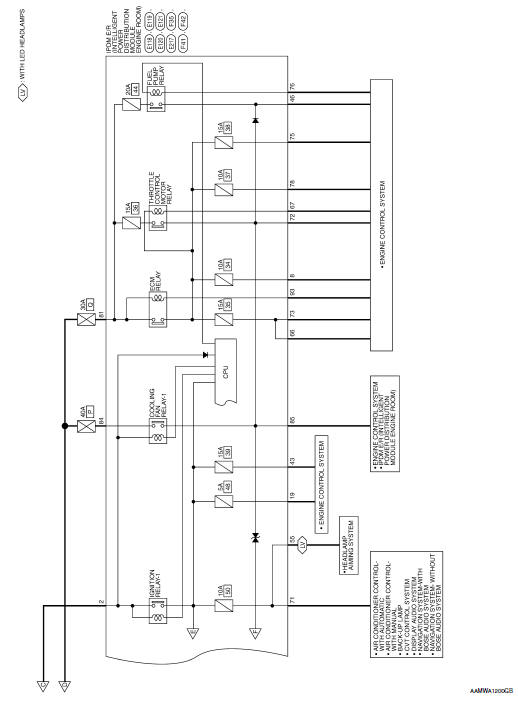

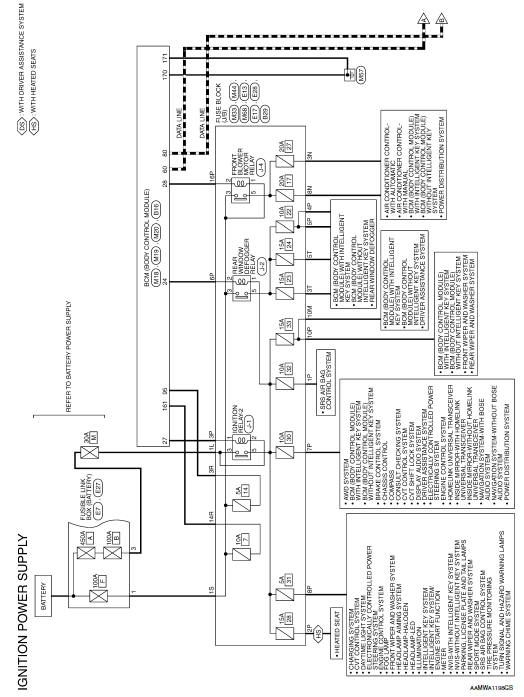

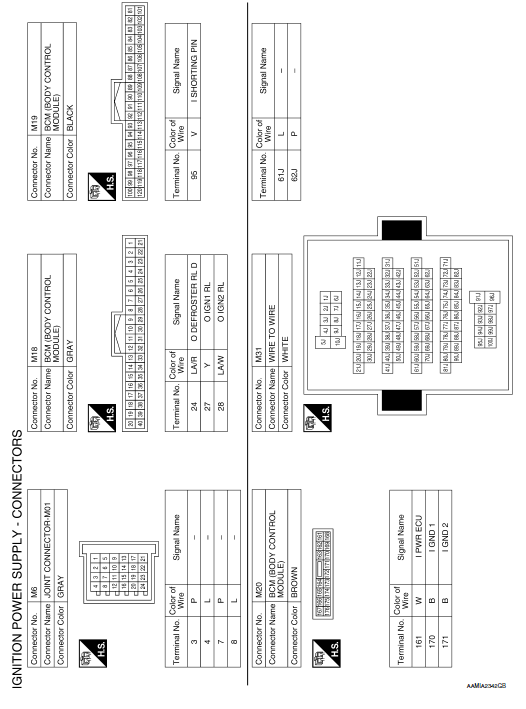

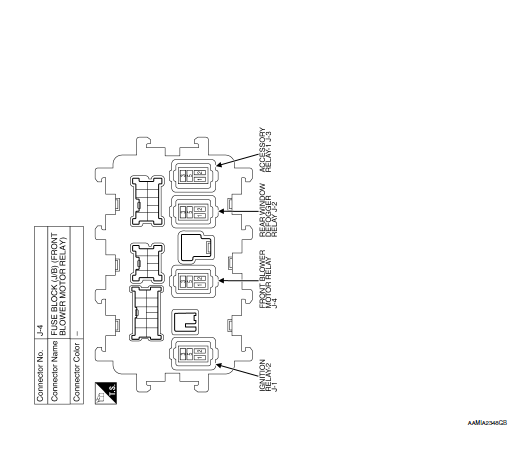

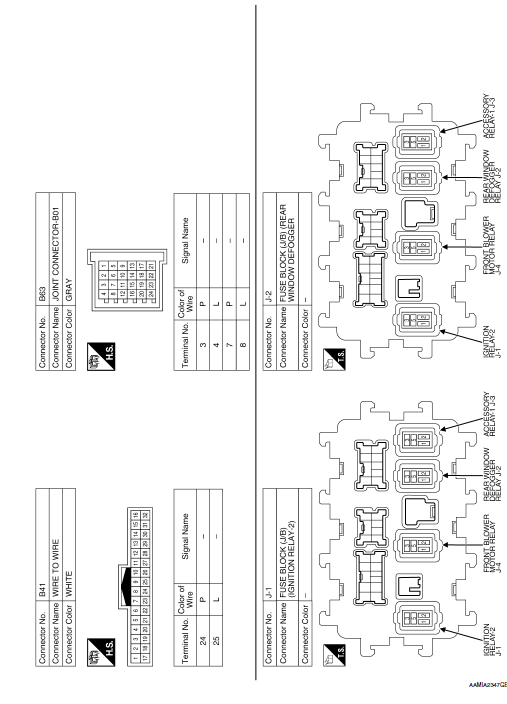

Wiring Diagram —Ignition Power Supply —

Ignition Power Supply

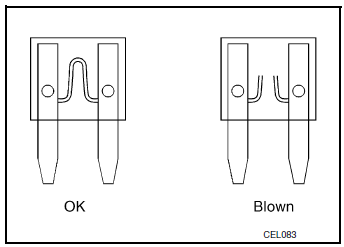

Fuse

If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
Use fuse of specified rating. Never use fuse of more than specified rating.
Do not partially install fuse; always insert it into fuse holder properly.
Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not used for a long period of time.

Fuse

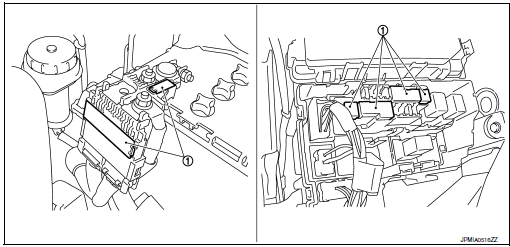

Fusible Link

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is questionable, use circuit tester or test lamp.

Fusible Link

: Fusible link

CAUTION:

If fusible link should melt, it is possible that critical circuit (power supply or large current carrying circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.
Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other wiring harness, vinyl or rubber parts.

Ground

Ground Distribution MAIN HARNESS ENGINE ROOM HARNESS ENGINE CONTROL HARNESS BODY HARNESS BODY NO. 2 HARNESS ...
