Nissan Rogue Service Manual: Ground

Ground Distribution

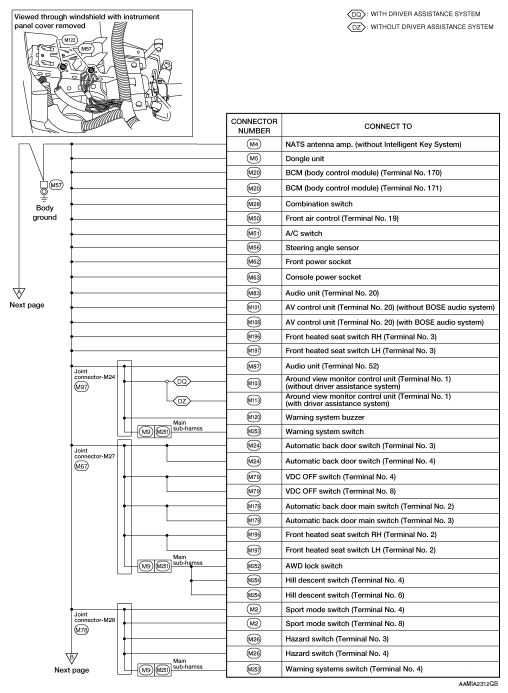

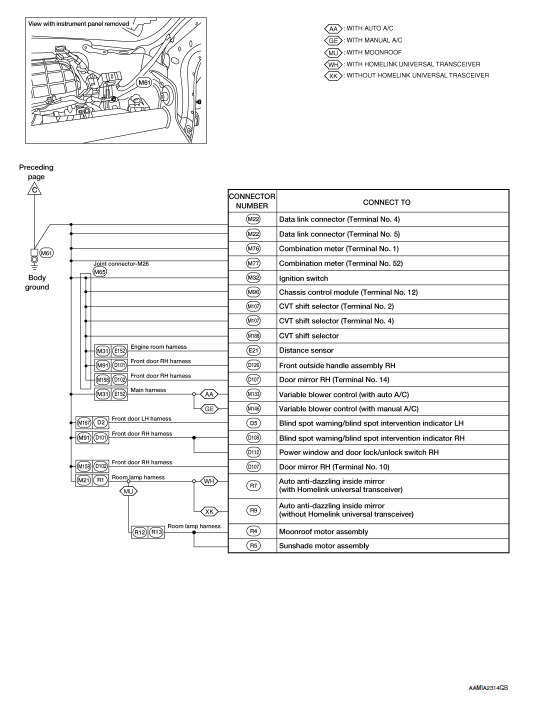

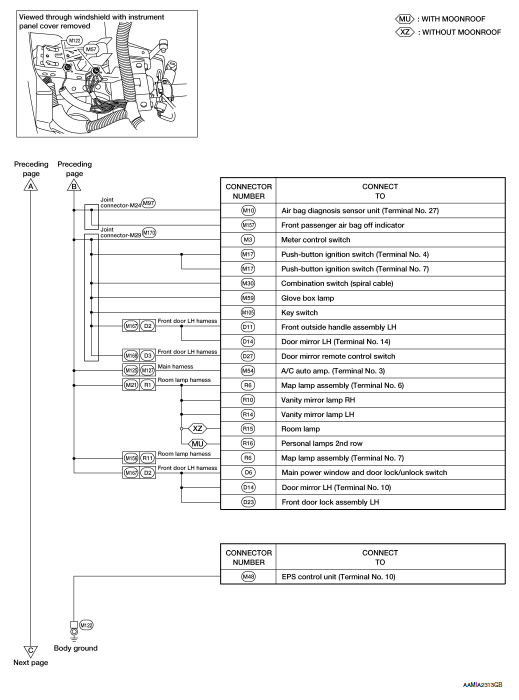

MAIN HARNESS

Main harness

Main harness

Main harness

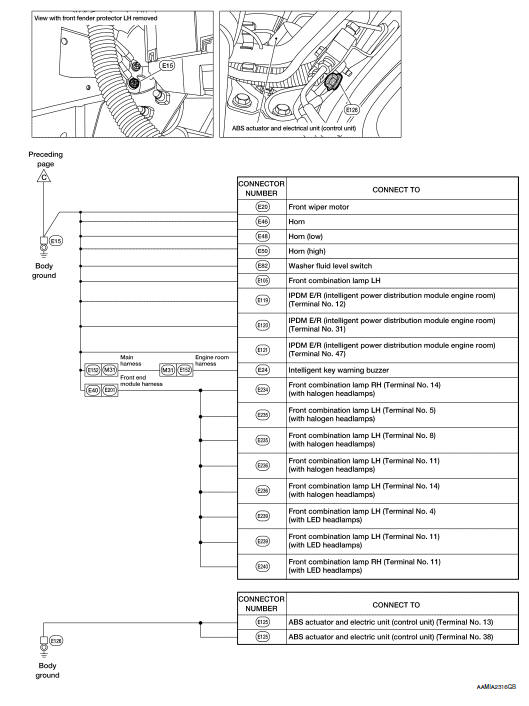

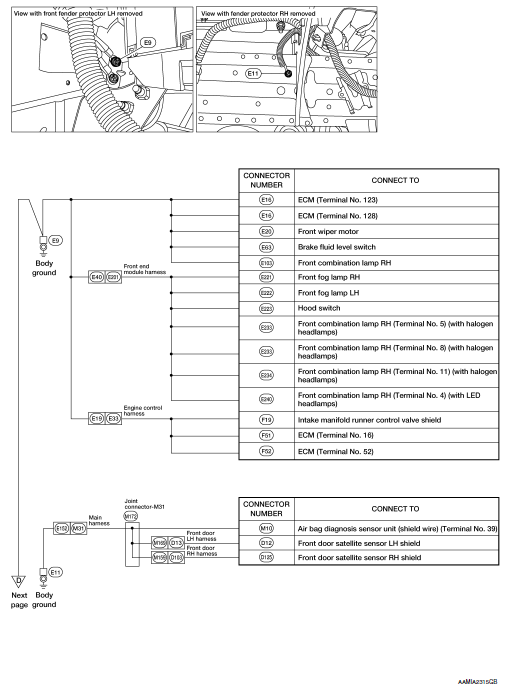

ENGINE ROOM HARNESS

Engine room harness

Engine room harness

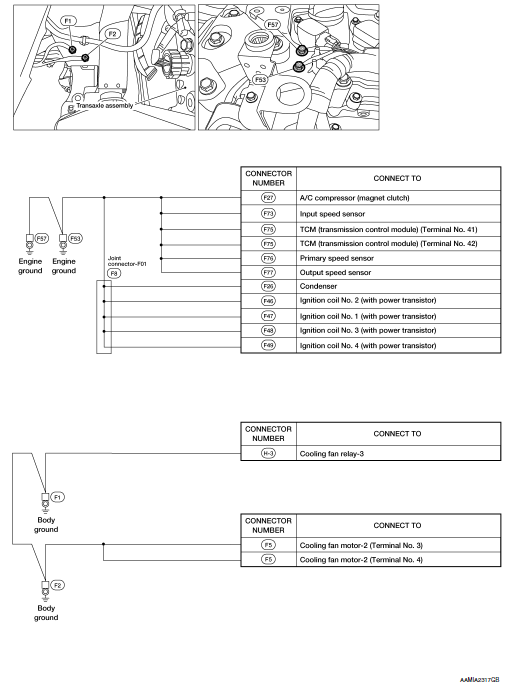

ENGINE CONTROL HARNESS

Engine control harness

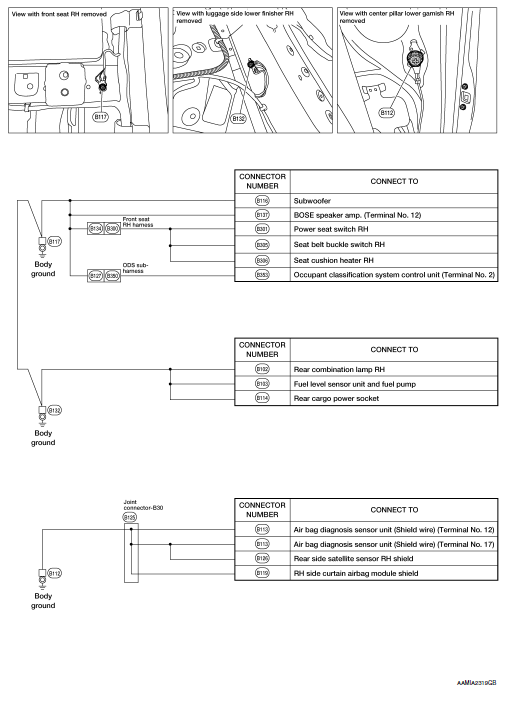

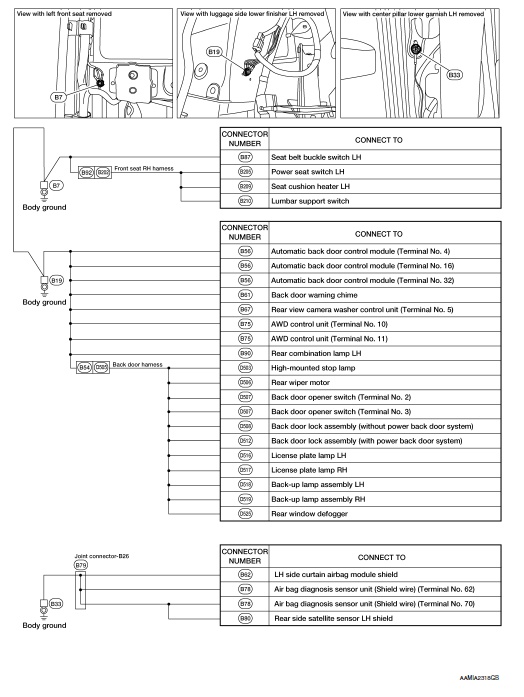

BODY HARNESS

Body harness

BODY NO. 2 HARNESS

Body no. 2 Harness
