Nissan Rogue Service Manual: Power seat for driver side

Nissan Rogue Service Manual / Body interior / Seat / Wiring diagram / Power seat for driver side

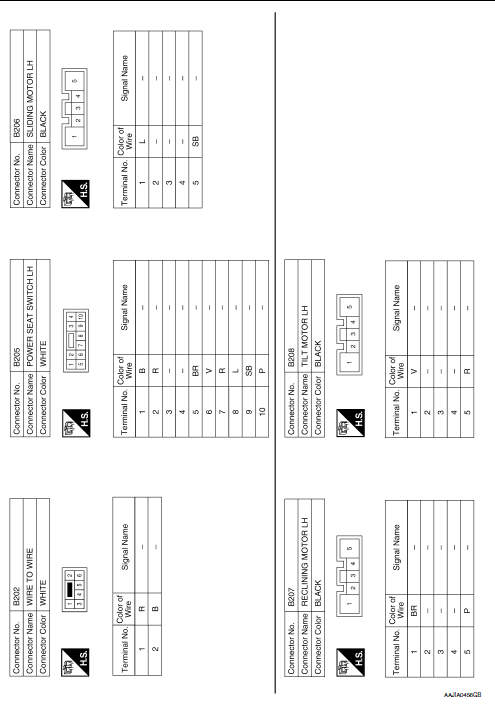

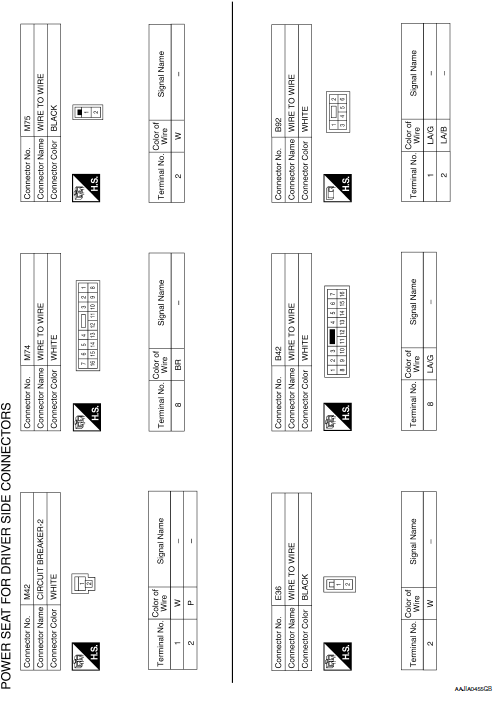

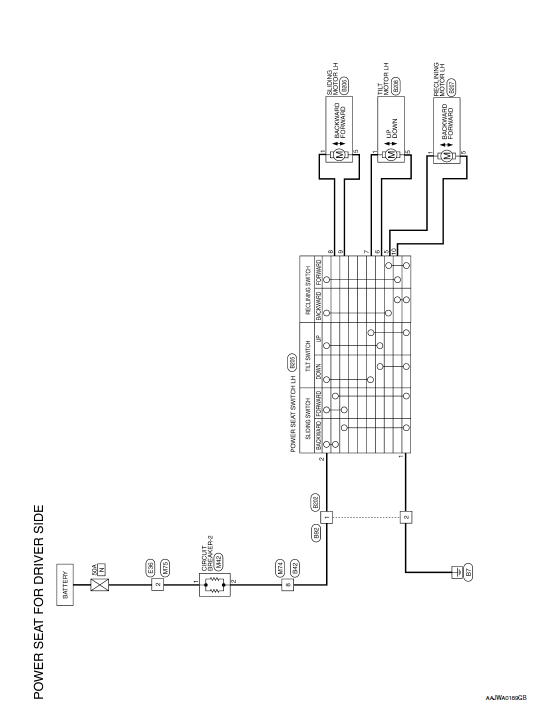

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring diagram
...

Power seat for passenger side
Wiring Diagram ...
