TRANSFER OIL

Inspection

TRANSFER OIL LEAKS

Check that transfer oil is not leaking from transfer assembly or around it.

TRANSFER OIL LEVEL

CAUTION: Do not start engine while checking transfer oil level.

  1. Remove filler plug (1) and gasket.

Transfer oil level

: Front

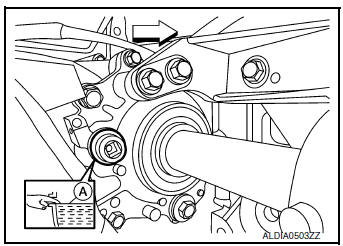

  1. Transfer oil level (A) should be level with bottom of filler plug hole. Add transfer oil if necessary. Refer to MA-11, "Fluids and Lubricants".
  2.  Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to DLN-89, "Exploded View".

CAUTION: Do not reuse gasket.

Draining

CAUTION: Do not start engine while working.

  1.  Run the vehicle to warm up the transfer unit sufficiently.

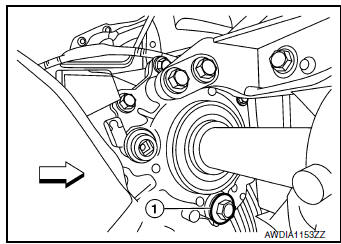

  2.  Stop the engine and remove drain plug (1) and gasket and drain the transfer oil.

Transfer oil level

: Front

  1. Set a new gasket onto drain plug, and install it in the transfer and tighten to specified torque. Refer to DLN-89, "Exploded View".

CAUTION: Do not reuse gasket.

Refilling

CAUTION: Do not start engine while checking transfer oil level.

  1.  Remove filler plug (1).
  2.  Fill with new transfer oil to the specified level near the filler plug hole.

Transfer oil level

: Front

Transfer oil grade and viscosity : Refer to MA-11, "Fluids and Lubricants".

Transfer oil capacity : Refer to DLN-93, "General Specifications".

  1. Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to DLN- 89, "Exploded View".

CAUTION: Do not reuse gasket.
