Nissan Rogue Service Manual: Performance test

Inspection

INSPECTION PROCEDURE

  1.  Connect recovery/recycling/recharging equipment (for HFC-134a) or manifold gauge.
  2.  Start the engine, and set to the following condition.

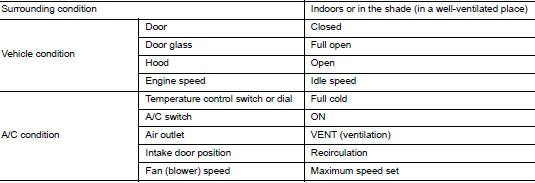

Test condition

Test condition

  1. Maintain test condition until A/C system becomes stable. (Approximately 10 minutes)
  2.  Check that test results of “recirculating-to-discharge air temperature” and “ambient air temperature-tooperating pressure” are within the specified value.
  3.  When test results are within the specified value, inspection is complete.

    If any of test result is out of the specified value, perform diagnosis by gauge pressure. Refer to HA-17, "Symptom Table".

RECIRCULATING-TO-DISCHARGE AIR TEMPERATURE TABLE

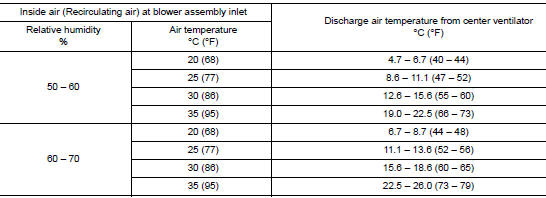

Recirculating-to-discharge air temperature table

AMBIENT AIR TEMPERATURE-TO-OPERATING PRESSURE TABLE

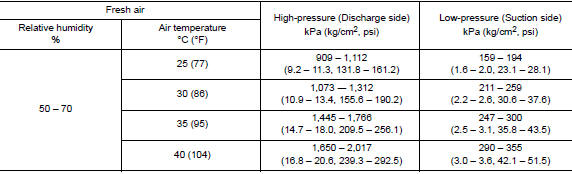

Ambient air temperature-to-operating pressure table

Oil
Description MAINTENANCE OF OIL LEVEL The compressor oil is circulating in the system together with the refrigerant. It is necessary to fill compressor with oil when replacing A/C system parts or ...
