Nissan Rogue Owners Manual: Meters and gauges

Meters and gauges

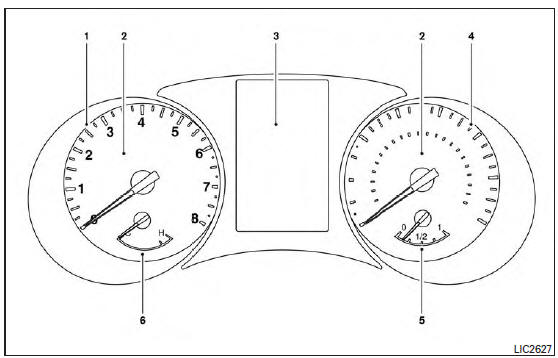

  1. Tachometer
  2.  Warning/indicator lights
  3.  Vehicle Information Display/Odometer/ Twin trip odometer
  4. Speedometer
  5. Fuel gauge
  6. Engine coolant temperature gauge
Instrument panel
Vent  Headlight/fog light (if so equipped)/turn signal switch  Meters, gauges, warning/indicator lights and Vehicle Information Display  Windshield wiper/washer switch ...

Speedometer and odometer
Speedometer The speedometer indicates vehicle speed. Odometer/Twin trip odometer The odometer 1 and the twin trip odometer 2 are displayed below the Vehicle Information Display when the ignitio ...
