Nissan Rogue Service Manual: Diagnosis system (IPDM E/R)

CONSULT Function (IPDM E/R)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.

Direct Diagnostic Mode

Description

Ecu Identification The IPDM E/R part number is displayed.
Self Diagnostic Result The IPDM E/R self diagnostic results are displayed.
Data Monitor The IPDM E/R input/output data is displayed in real time.
Active Test The IPDM E/R activates outputs to test components.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.

ECU IDENTIFICATION

The IPDM E/R part number is displayed.

SELF DIAGNOSTIC RESULT

Refer to PCS-20, "DTC Index".

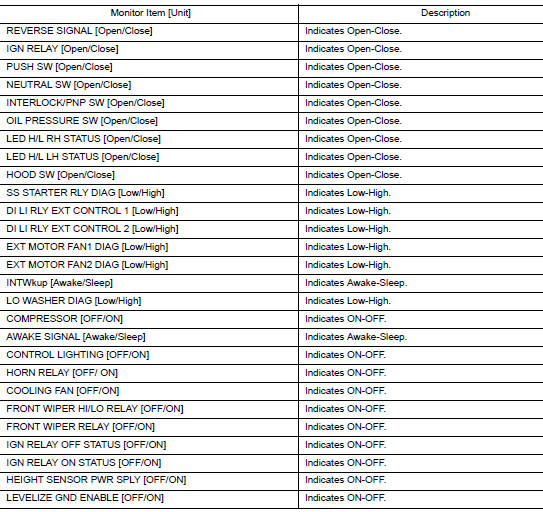

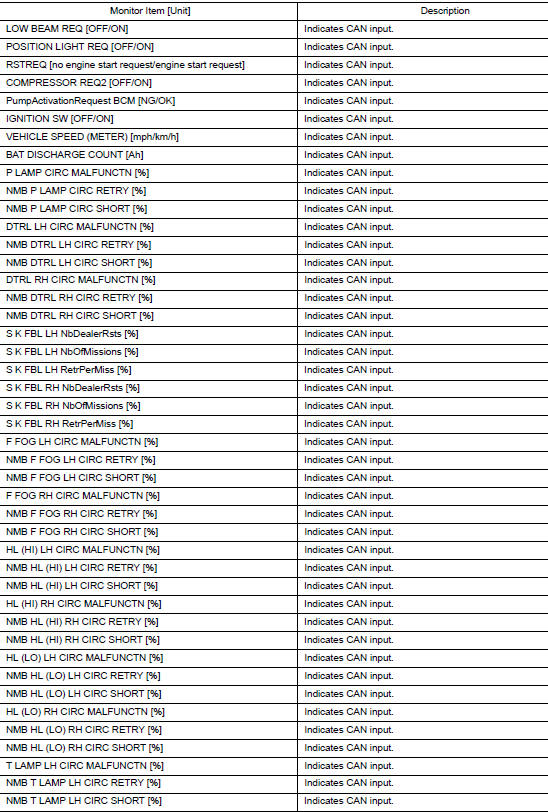

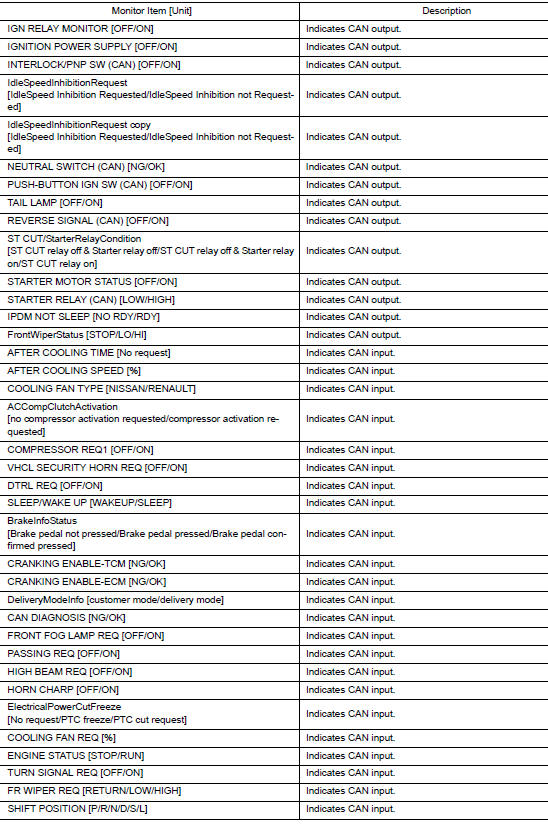

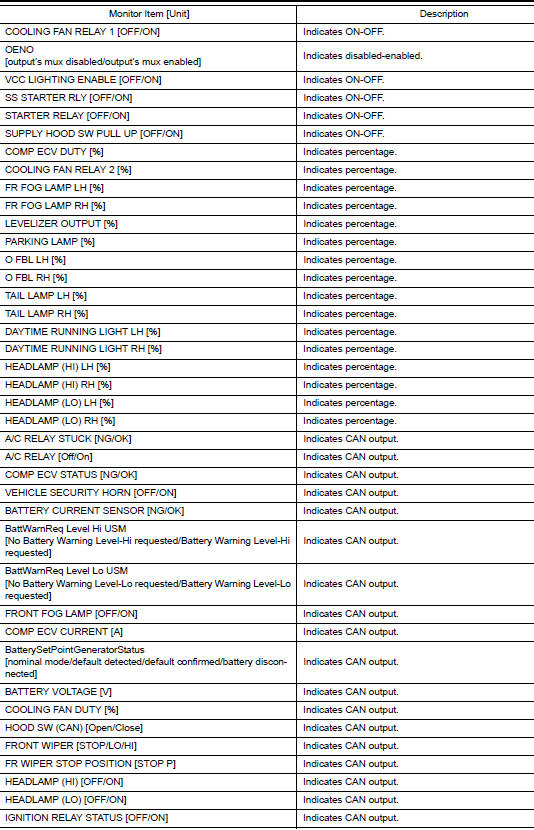

DATA MONITOR

Data monitor

Data monitor

Data monitor

Data monitor

Data monitor

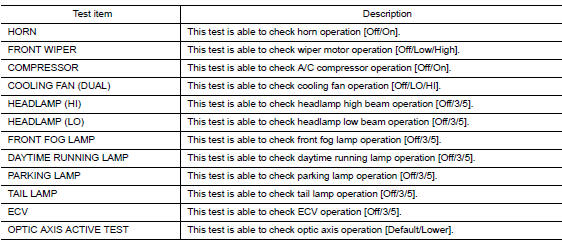

ACTIVE TEST

Active test

WORK SUPPORT

Work support

*: Initial setting

CAN DIAG SUPPORT MNTR

Refer to LAN-14, "CAN Diagnostic Support Monitor".
