Nissan Rogue Service Manual: Wiring diagram

POWER WINDOW SYSTEM

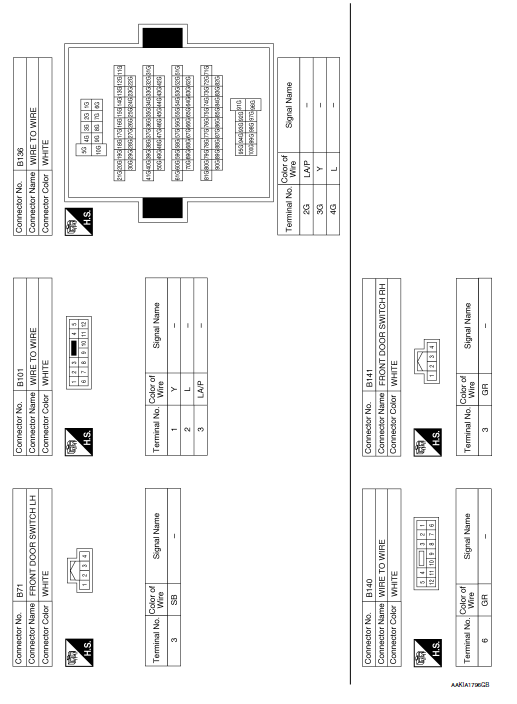

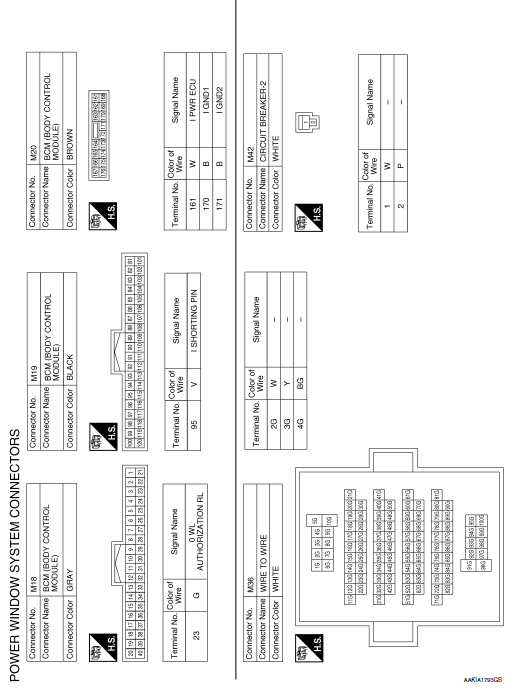

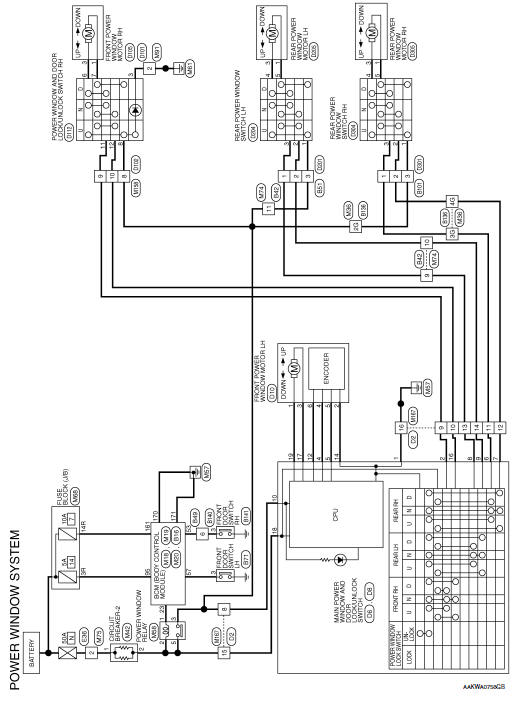

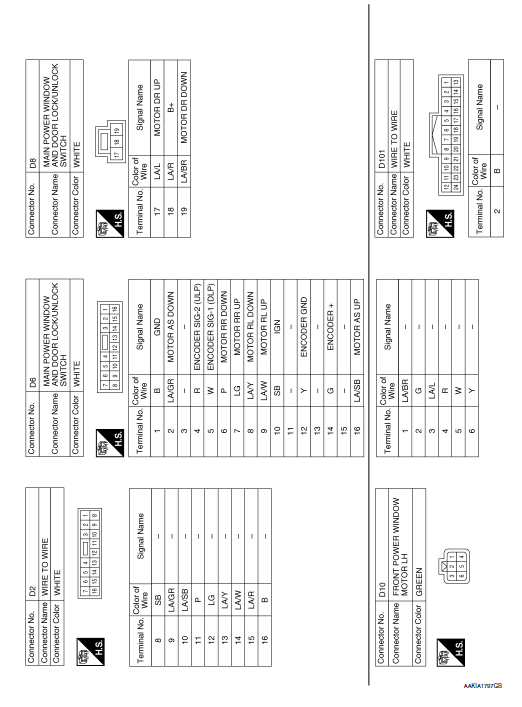

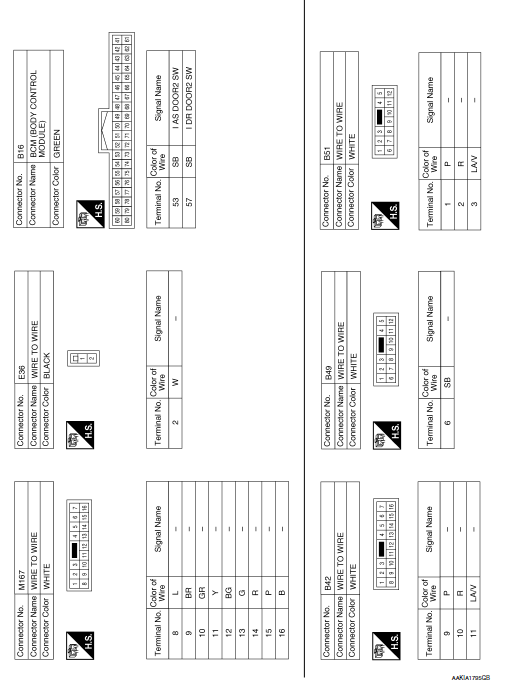

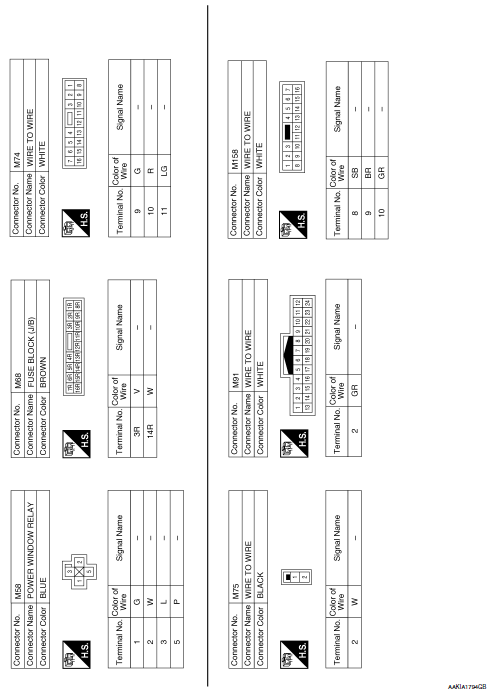

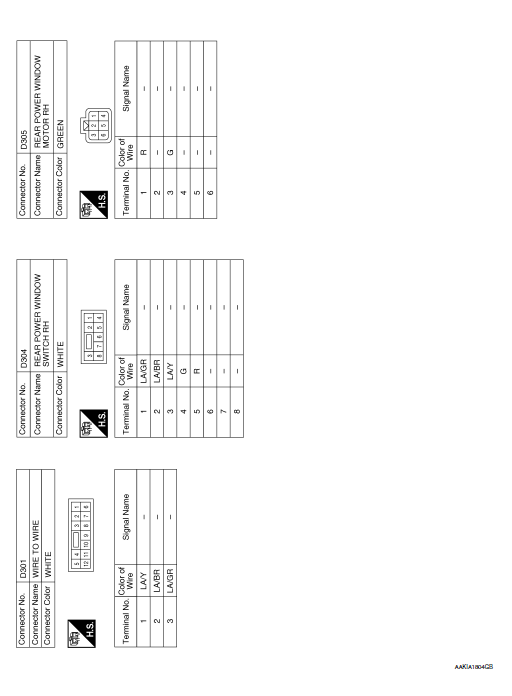

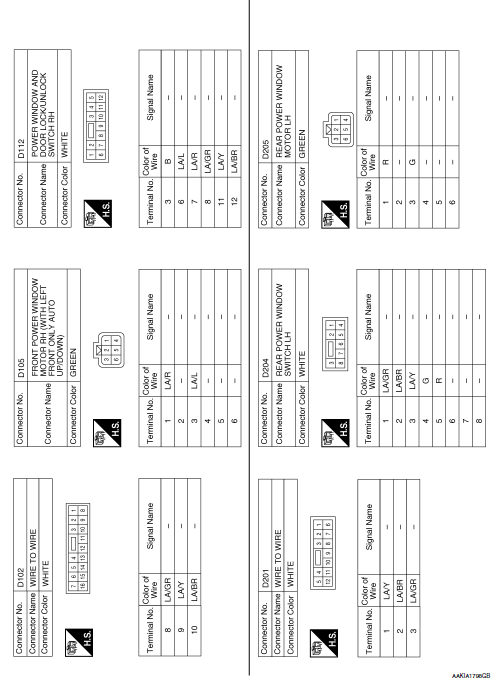

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Main power window and door lock/unlock switch
