Nissan Rogue Service Manual: Windshield glass

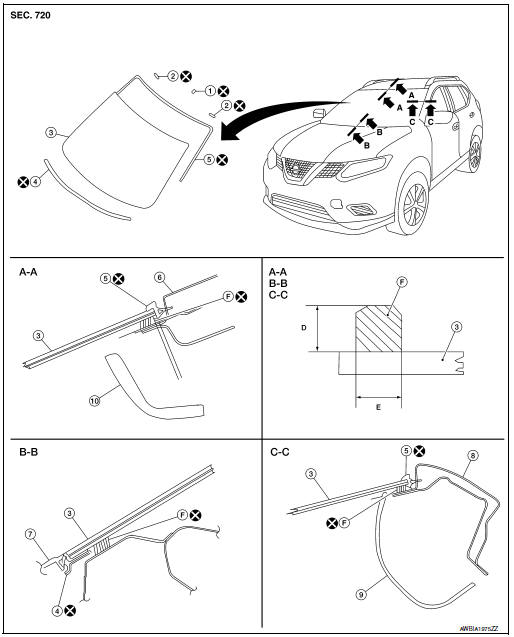

Exploded View

Exploded View

  1. Mirror base
  2. Spacer
  3. Windshield glass
  4. Windshield glass lower molding
  5. Windshield glass molding
  6. Roof
  7. Cowl top cover
  8. ody side outer
  9. ront pillar finisher
  10. Headlining
  11.  7.0 mm (0.28 in)
  12. 12 mm (0.47 in)
  13.  Adhesive

Removal and Installation

REMOVAL

  1.  Remove inside mirror. Refer to MIR-20, "Removal and Installation".
  2.  Partially remove the headlining (front edge). Refer to INT-29, "Exploded View".
  3.  Remove the cowl top extension. Refer to EXT-25, "Exploded View".

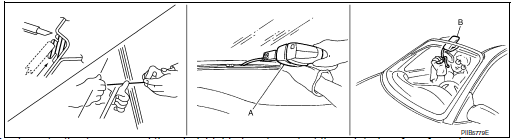

  4.  Remove windshield glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

Removal

WARNING: When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.

CAUTION:

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

CAUTION:

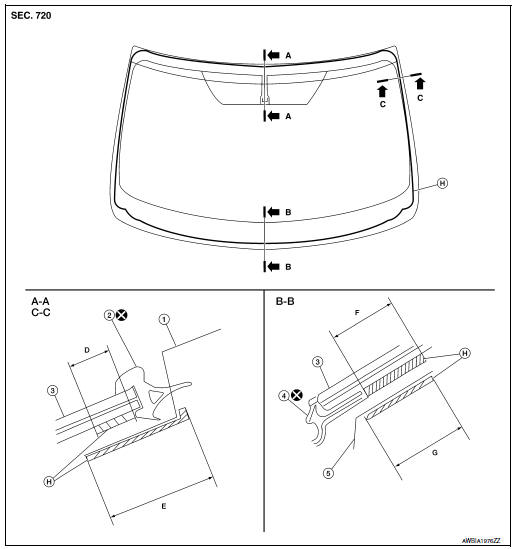

PRIMER

Primer

  1. Body
  2. Windshield glass molding
  3. Windshield glass
  4. Windshield glass lower molding
  5. Cowl top cover
  6. 16 mm (0.63 in)
  7.  22 mm (0.87 in)
  8. 14 mm (0.55 in)
  9. 20 mm (0.79 in)
  10.  Primer

INSPECTION

Repairing Water Leaks for Windshield

Removal and installation
...
