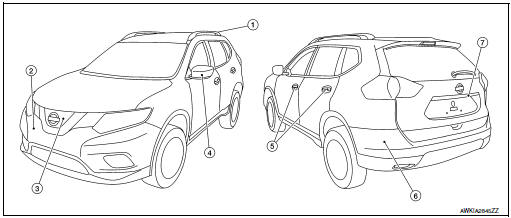

BODY EXTERIOR PAINT COLOR
Body Exterior Paint Color

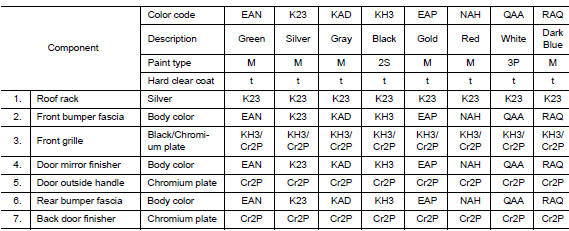

M = Metallic, 2S = Solid and Clear, 3P = 3-coat pearl, t = TMAC clear coat
PrecautionSystem
ENGINE CONTROL SYSTEM
ENGINE CONTROL SYSTEM : System Description
SYSTEM DIAGRAM
SYSTEM DESCRIPTION
ECM controls the engine by various functions.
Function
Reference
Multiport fuel injection system
EC-34, "MULTIPORT FUEL INJECTION SYSTEM : System Description
(wit ...
Fuel level sensor unit, fuel filter
and fuel pump assembly
Exploded View
1. Lock ring
2. O-ring
3. Fuel filter and fuel pump assembly
4. Fuel level sensor and fuel tank temperature sensor
5. Lock ring
6. O-ring
7. Sub fuel level sensor assembly
8. Fuel tank
Fron
CAUTION:
Do not remove or disassemble parts unless instructed as shown.
R ...
Additional service when replacing transaxle assembly
Description
Perform the following work after the transaxle assembly is replaced.
WRITING TCM DATA
TCM performs accurate control by retrieving data (inherent
characteristic value) of each solenoid. For this
reason, after replacing transaxle assembly, it is necessary to write new
d ...
