System Description

When the vehicle has reached a speed of 40 km/h (25 MPH) or greater, the BCM receives a signal transmitted from the tire pressure sensors installed in each wheel. If the BCM detects low inflation pressure or a system malfunction, it sends a signal to the combination meter via CAN communication to illuminate the low tire pressure warning lamp.In addition, a warning message will be displayed in the vehicle information display. Refer to the Owner’s Manual for additional information.

The tire pressure monitoring system (TPMS) has Easy fill tire alert function to aid in tire inflation. Refer to WT- 9, "Easy Fill Tire Alert Function".

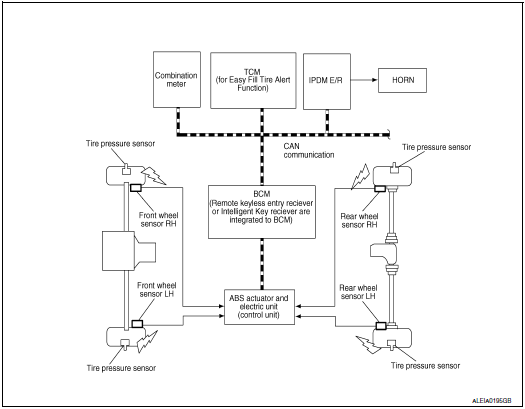

SYSTEM DIAGRAM

System diagram

INPUT/OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

Component parts	Signal item
Combination meter	Mainly receives the following signals from BCM via CAN communication. Low tire pressure warning lamp signal TPMS malfunction warning lamp signal
ABS actuator and electric unit (control unit)	Mainly transmits the following signals to BCM via CAN communication. Vehicle speed signal (ABS)
TCM	Mainly transmits the following signals to BCM via CAN communication. Shift position signal (P range signal)
IPDM E/R	Mainly transmits the following signals to BCM via CAN communication. Horn reminder signal

LOW TIRE PRESSURE WARNING LAMP INDICATION CONDITION

Uses CAN communication from the BCM to illuminate the low tire pressure warning lamp on the combination meter.

Condition	Low tire pressure warning lamp
Power switch OFF	OFF
Power switch ON (System normal)	Warning lamp turns on for 1second, then turns off.
Low tire pressure	ON
Configuration not performed in tire pressure monitoring system
Tire pressure sensor ID not registered in BCM
Tire pressure monitoring system malfunction (Other diagnostic item)	Warning lamp blinks 1 min, then turns on.

HAZARD WARNING LAMP INDICATION CONDITION

The hazard warning lamp blinks under the following conditions.

When ID registration is completed. Refer to WT-21, "Work Procedure".
During the use of the easy fill tire alert function.

HORN CONTROL CONDITION

During the use of easy fill tire alert function.

Easy Fill Tire Alert Function

This function operates only when the select lever position is in P-range with the power switch ON or with the vehicle set to READY.
NOTE: The easy fill tire alert function is recommended to use with the power switch ON.

NOTE: When beginning tire inflation, it takes a few seconds for the Easy fill tire alert to function. If there is no response for approximately 15 seconds or more, cancel the Easy fill tire alert function and move the vehicle approximately 1 m (3.2 ft) backward or forward to try again.
The Easy fill tire alert function operates only when the select lever position is in P-range with the ignition switch ON.
This function informs the driver with a visual and audible indication that the recommended COLD tire pressure has been reached.

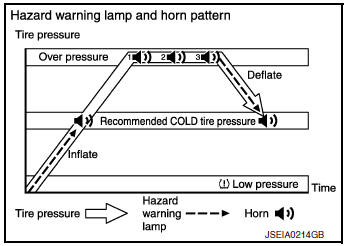

The hazard warning lamps blink when the recommended COLD tire pressure has been reached. After the recommended COLD tire pressure has been reached, the horn sounds once and the hazard warning lamps stop blinking.
If the tire pressure value is equal to or greater than 30 kPa (0.31 kg/cm2, 4 psi) more than the recommended COLD tire pressure, the hazard warning lamps flash and horn sounds three times.
To return the tire to the recommended COLD tire pressure, deflate the tire until the horn sounds once and the hazard warning lamps stop blinking.

Easy Fill Tire Alert Function

Component parts

Component Parts Location Combination meter Engine room (LH) Left front wheel assembly Behind instrument panel (LH) Left rear wheel assembly Left rear wheel assembly ...

Diagnosis system (BCM)

WITH INTELLIGENT KEY WITH INTELLIGENT KEY : CONSULT Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT performs the following functions via CAN communication with BCM. Direct Diagnostic ...
