MOONROOF

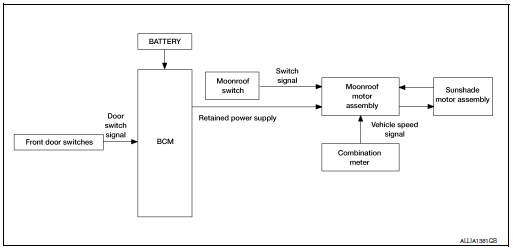

MOONROOF : System Diagram

MOONROOF & SUNSHADE

Moonroof & sunshade

MOONROOF : System Description

MOONROOF SYSTEM

INPUT/OUTPUT SIGNAL CHART

Item	Input signal to moonroof motor assembly	Moonroof motor function	Actuator
Moonroof switch	Moonroof signal (tilt up/down or slide open/close)	Receives signal and moves the moonroof and sunshade assembly to the correct position.	Moonroof motor and/or Sunshade motor
Moonroof switch	Sunshade signal (slide open/close)
Combination meter	Sunshade signal (slide open/close)	Receives speed signal and determines the amount of torque the motor requires.
BCM	RAP signal	Retained power after the key is turned off and the front doors stay closed.

MOONROOF AND SUNSHADE OPERATION

Moonroof motor and sunshade motor assembly operates with the power supply that is output from the BCM while the ignition switch is ON or retained power is operating.
Tilt up/down & slide open/close signals from the moonroof switch enable the moonroof motor and sunshade motor to move.
Moonroof motor assembly receives a vehicle speed signal from the combination meter and controls the moonroof motor torque of tilt down at the time of high speed operation.

AUTO OPERATION

Moonroof and Sunshade AUTO feature makes it possible to slide open and slide closed the moonroof and sunshade without holding the moonroof switch in the slide open/close position.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables the moonroof and sunshade system to operate for 45 seconds after the ignition switch is turned off and the front doors remain closed.

Retained power function cancel conditions

Door CLOSE (door switch OFF)→OPEN (door switch ON).
When ignition switch is ON again.
When timer time passes (45 seconds).

ANTI-PINCH FUNCTION

The moonroof and sunshade motor’s built in CPU monitors the moonroof motor and sunshade motor operation and position.

If a restriction is detected during the slide closed operation the moonroof/sunshade motor will move the glass/ sunshade in the open positions.
