Nissan Rogue Service Manual: Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”,
used along
with a front seat belt, helps to reduce the risk or severity of injury to the
driver and front passenger for certain
types of collision. Information necessary to service the system safely is
included in the SR and SB section of
this Service Manual.
WARNING:
- To avoid rendering the SRS inoperative, which could increase
the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all
maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
- Improper maintenance, including incorrect removal and
installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of
Spiral Cable and Air Bag
Module, see the SR section.
- Do not use electrical test equipment on any circuit related to
the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or
orange harnesses or harness
connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
- When working near the Airbag Diagnosis Sensor Unit or other
Airbag System sensors with the Ignition
ON or engine running, DO NOT use air or electric power tools or strike near
the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air
bag(s), possibly causing
serious injury.
- When using air or electric power tools or hammers, always
switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for Work
- When removing or disassembling each component, be careful not to damage
or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
- When removing (disengaging) components with a screwdriver or
similar tool, be sure to wrap the component
with a shop cloth or vinyl tape to protect it.
- Protect the removed parts with a shop cloth and prevent them from
being dropped.
- Replace a deformed or damaged clip.
- If a part is specified as a non-reusable part, always replace it
with a new one.
- Be sure to tighten bolts and nuts securely to the specified torque
- After installation is complete, be sure to check that each part
works properly.
- Follow the steps below to clean components:
- Dip a soft cloth into lukewarm water, wring the water out of the
cloth and wipe the dirty area.
- Then rub with a soft, dry cloth.
- Dip a soft cloth into lukewarm water with mild detergent
(concentration: within 2 to 3%) and wipe the dirty
area.
- Then dip a cloth into fresh water, wring the water out of the
cloth and wipe the detergent off.
- Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or
gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.

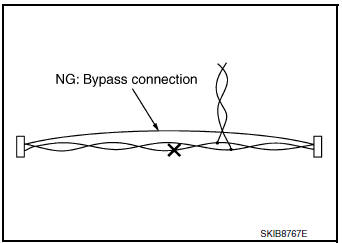

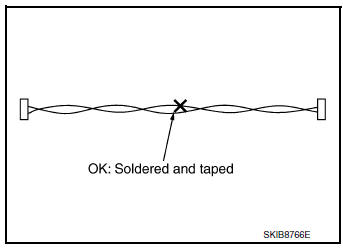

Precautions for Harness Repair
- Replace the applicable harness as an assembly if error is detected on
the shield lines of CAN communication
line.
Precautions for Chassis control
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
—
(J-46534)
Trim ...
