Engine
Model | QR25DE | |
Type | Gasoline, 4-cycle, DOHC | |
Cylinder arrangement | 4-cylinder | |
Bore x Stroke |
in (mm) |
3.5 x 3.9 (89.0 x 100.0) |
Displacement |
cu in (cm3) |
151.82 (2,488) |
Firing order | 1-3-4-2 | |
Idle speed | No adjustment is necessary. | |
CVT (in “N” position) | ||
Ignition timing (degree B.T.D.C. at idle speed) | ||
CO % at idle | ||
Spark plug | FXE20HE-11C | |
Spark plug gap (Nominal) |
in (mm) |
0.043 (1.1) |
Camshaft operation | Timing chai |
This spark ignition system complies with the Canadian standard ICES-002

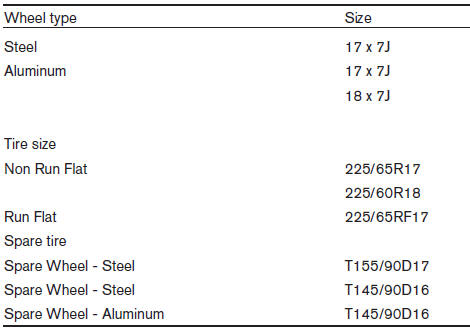

Wheels and tires

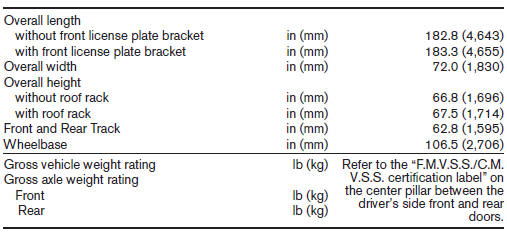

Dimensions and weights
P0520 EOP sensor
DTC Description
DTC DETECTION LOGIC
DTC No.
CONSULT screen terms
(Trouble diagnosis content)
DTC detecting condition
P0520
EOP SENSOR/SWITCH
(Engine oil pressure sensor/switch circuit)
Signal voltage from the EOP sensor remains at more than 5.02 V /
less than
...
B1431 seat belt pre-tensioner
DTC Logic
DTC DETECTION LOGIC
CONSULT name
DTC
DTC detecting condition
Repair order
FRONT PRE-TEN RH CIRCUIT
[OPEN]
B1431
RH seat belt pre-tensioner circuit is open.
Refer to SRC-61, "Diagnosis Procedure"
FRONT PRE-TEN RH CIRC ...
Structure and operation
TRANSAXLE
TRANSAXLE : Cross-Sectional View
Converter housing
Oil pump
Planetary gear
Control valve
Oil pan
Steel belt
Primary pulley
Secondary pulley
Side cover
Transaxle case
Differential case
Final gear
Reduction gear
Idler gear
Output gear
Drive sp ...
