Nissan Rogue Service Manual: Room lamp
Removal and Installation
WARNING: Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.
CAUTION:
- Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from bulb surface.
- Do not leave bulb out of reflector for a long time because moisture, smoke, etc. may affect the performance of lamp.
REMOVAL

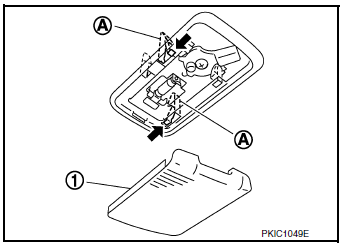

- Lower lens (1) and room lamp as an assembly by releasing room lamp metal clips (A) using a suitable tool.
- Disconnect the harness connector from the room lamp and remove.
INSTALLATION
Installation is in the reverse order of removal.
Bulb Replacement
WARNING: Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.
CAUTION:
- Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from bulb surface.
- Do not leave bulb out of reflector for a long time because moisture, smoke, etc. may affect the performance of lamp.

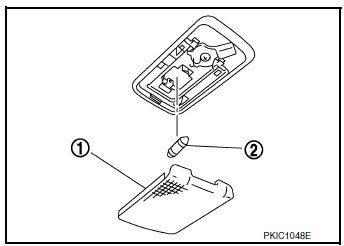

- Remove lens (1) by inserting suitable tool and releasing LH side (switch side) first
- Remove room lamp bulb (2).
- Install room lamp bulb (2).
- Install room lamp lens (1).
NOTE: Insert the lens hook end (RH side) first to install lens.
Glove box lamp
Bulb Replacement
WARNING:
Do not touch the glass surface of a bulb while it is lit or right after being
turned OFF to prevent burns.
CAUTION:
Do not touch the glass of bulb directly b ...
Personal lamp
Removal and Installation
The personal lamp is serviced as part of headlining. Refer to INT-30,
"Removal and Installation".
Bulb or Lens Replacement
WARNING:
Do not touch the glass surf ...
