Nissan Rogue Service Manual: Panoramic roof glass

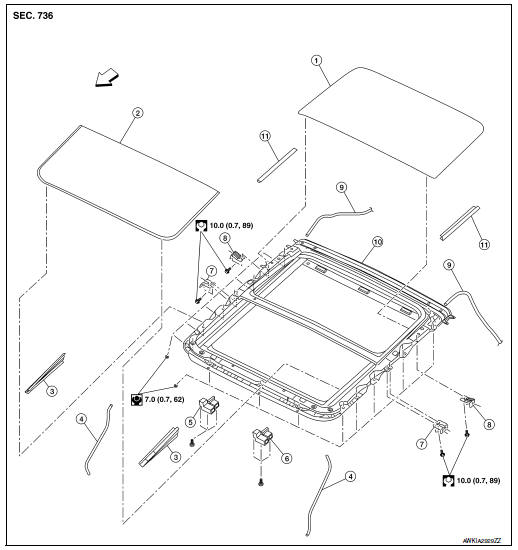

Exploded View
- Panoramic roof glass
- Glass lid
- Side trim covers (LH/RH)
- Front drain hose (LH/RH)
- Moonroof motor assembly
- Sunshade motor assembly
- Moonroof front bracket (LH/RH)
- Moonroof rear bracket (LH/RH)
- Rear drain hose (LH/RH)
- Moonroof unit assembly
- Rear trim covers (LH/RH)
Front
Removal and Installation
CAUTION: Handle panoramic roof glass with care to prevent damage.
REMOVAL
- Remove moonroof motor assembly. Refer to RF-53, "Removal and Installation".
- Remove four screws and panoramic glass.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- First tighten left front screw, then right rear screw to prevent uneven alignment while tightening remaining screws.
- After installing panoramic roof glass, check gap/height adjustments and operation. Refer to RF-55, "Inspection".
