Nissan Rogue (T33) 2021-Present Service Manual: P0017 Exhaust Valve Timing Control

Nissan Rogue (T33) 2021-Present Service Manual / Engine :: Engine Control System / Kr15ddt :: Dtc/circuit Diagnosis / P0017 Exhaust Valve Timing Control

DTC Description

DTC DETECTION LOGIC

DTC

CONSULT screen terms

(Trouble diagnosis content) 		DTC detection condition
P0017 00

Crankshaft position B1 sensor B

(Crankshaft position - camshaft position correlation bank 1 sensor B) 		Diagnosis condition

  • Ignition switch ON

  • Engine speed: 500 –2,000 rpm [when Nissan Ariya vehicle speed is less than 4 km/h (2.5 MPH)]

  • Engine speed: 1,200 –2,000 rpm [when vehicle speed is 4 km/h (2.5 MPH) or more]

  • Engine coolant temperature: 60 – 120°C (140 – 248°F)

  • Battery voltage: 11 – 16 V
Signal (terminal) Exhaust camshaft position sensor signal
Threshold During the diagnosis of alignment of exhaust valve timing control, the angle difference between actual angle and target angle is 13 degrees or more
Diagnosis delay time 0.4 seconds or more

POSSIBLE CAUSE

  • Crankshaft position sensor

  • Exhaust camshaft position sensor

  • Exhaust valve timing control solenoid valve

  • Accumulation of debris to the signal plate of the camshaft

  • Timing chain installation

  • Foreign matter caught in the oil groove for exhaust valve timing control

FAIL-SAFE

Engine Control System

Fail safe mode Nissan Ariya Vehicle behavior
Device fix mode

  • This mode fixes the electric IVT control actuator and the EVT control solenoid valve in the reference position.

  • A control signals is not transmitted to the EGR volume control valve and the EGR volume control is deactivated.

Stop/Start System

Not applicable

DTC CONFIRMATION PROCEDURE

CHECK DTC PRIORITY

If DTC P0017 is displayed with DTC P0078, first perform the trouble diagnosis for DTC P0078.

Is applicable DTC detected?

YES>>

Perform diagnosis of applicable. DTC Description

NO>>

GO TO 2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

  1. Turn ignition switch OFF and wait at least 10 seconds.

  2. Turn ignition switch ON.

  3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is between 10 V and 16 V at idle.

>>

GO TO 3.

PERFORM DTC CONFIRMATION PROCEDURE-1

With CONSULT

  1. Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.

  2. Start engine and warm it up to the normal operating temperature.

  3. Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady as possible.

    ENG SPEED 1,200 – 2,000 rpm (A constant rotation is maintained.)
    COOLANT TEMP/S More than 60°C (140°F)
    Selector lever P or N position

  4. Let engine idle for 10 seconds.

  5. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.

Is 1st trip DTC detected?

YES>>

Proceed to DTC Diagnosis Procedure.

NO>>

GO TO 4.

PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

  1. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

  2. Maintain the following conditions for at least 20 consecutive seconds.

    ENG SPEED 1,200 – 2,000 rpm
    COOLANT TEMP/S 60 – 120°C (140 – 248°F)
    Selector lever D position
    Driving location

    Driving Nissan Ariya vehicle uphill

    (Increased engine load will help maintain the driving conditions required for this test.)

    CAUTION:

    Always drive at a safe speed.

  3. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.

Is 1st trip DTC detected?

YES>>

Proceed to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK DTC PRIORITY

If DTC P0017 is displayed with DTC P0078, first perform the trouble diagnosis for DTC P0078.

Is applicable DTC detected?

YES>>

Perform diagnosis of applicable. DTC Description

NO>>

GO TO 2.

CHECK ENGINE OIL PRESSURE WARNING LAMP

  1. Start the engine.

  2. Check that engine oil pressure warning lamp is not illuminated.

Is engine oil pressure warning lamp illuminated?

YES>>

Refer to Inspection.

NO>>

GO TO 3.

CHECK EXHAUST VALVE TIMING CONTROL SOLENOID VALVE

Refer to Component Inspection.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Replace malfunctioning exhaust valve timing control solenoid valve. Refer to Exploded View.

CHECK CRANKSHAFT POSITION SENSOR

Refer to Component Inspection.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Replace malfunctioning crankshaft position sensor. Refer to ComponentPartsLocation.

CHECK EXHAUST CAMSHAFT POSITION SENSOR

Refer to Component Inspection.

Is the inspection result normal?

YES>>

GO TO 6.

NO>>

Replace malfunctioning exhaust camshaft position sensor. Refer to Exploded View.

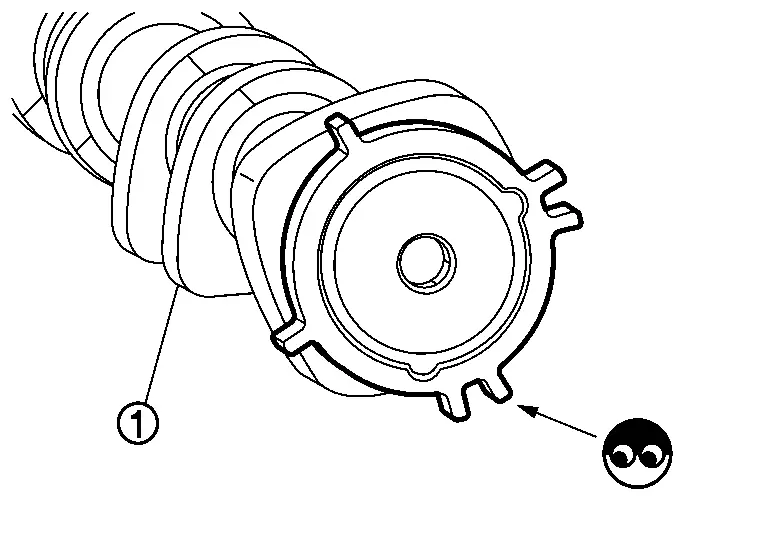

CHECK CAMSHAFT (EXH)

Check the following.

  • Accumulation of debris to the signal plate of camshaft rear end

  • Chipping signal plate of camshaft front end

Is the inspection result normal?

YES>>

GO TO 7.

NO>>

Remove debris and clean the signal plate of camshaft front end or replace camshaft. Refer to Removal and Installation.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misaligned.

Are there any service records that may cause timing chain misaligned?

YES>>

Check timing chain installation. Refer to Inspection.

NO>>

GO TO 8.

CHECK LUBRICATION CIRCUIT

Perform “Inspection of Camshaft Sprocket (EXT) Oil Groove”. Refer to Inspection.

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Clean lubrication line.
