AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Switch Name and Function

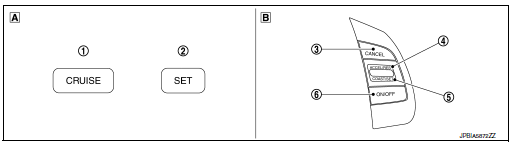

SWITCHES AND INDICATORS
A On the combination meter
B On the steering wheel
1 CRUISE indicator
2 SET indicator
3 CANCEL switch
4 ACCEL/RES switch
5 COAST/SET switch
6 ASCD MAIN switch
SET SPEED RANGE
ASCD system can be set the following vehicle speed.
Minimum speed (Approx.) | Maximum speed (Approx.) |
40 km/h (25 MPH) | 144 km/h (90 MPH) |
SWITCH OPERATION
Item | Function |
CANCEL switch | Cancels the cruise control driving. |
ACCEL/RES switch |
|
COAST/SET switch |
|
ASCD MAIN switch | Master switch to activate the ASCD system. |
Refer to EC-47, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description" for ASCD operating instructions.
Basic inspection
CONFIGURATION (CAN GATEWAY)
Work Procedure
1.WRITING MODE SELECTION
CONSULT Configuration
Select “Re/programming, Configuration” of CAN gateway.
When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.
2.PERFORM “AFTER REPLACE ECU” OF “READ / WRITE CONFIGURA ...
Front wiper motor ground circuit
Diagnosis Procedure
Regarding Wiring Diagram information, refer to WW-22, "Wiring Diagram".
1. CHECK FRONT WIPER MOTOR GROUND CIRCUIT
Turn the ignition switch OFF.
Disconnect front wiper motor.
Check continuity between front wiper motor harness connector and
...
Diagnosis system (BCM) (with intelligent key system)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
Direct Diagnostic Mode
Description
Ecu Identification
The BCM part number is displayed.
Self Diagnostic ...
