Description
The low tire pressure warning lamp blinks when the power switch is turned ON.

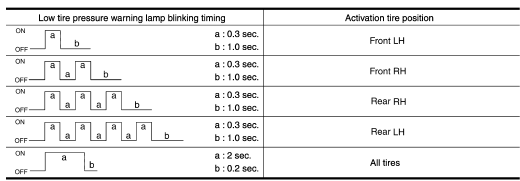

NOTE: The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low tire pressure warning lamp.
Diagnosis Procedure
1.TIRE PRESSURE SENSOR ID REGISTRATION
Perform tire pressure sensor ID registration. Refer to WT-21, "Work Procedure".
Is tire pressure sensor ID registration completed? YES >> Inspection End.
NO >> Perform the “self-diagnosis” for “AIR PRESSURE MONITOR” of “BCM”. Refer to BCS-48, "DTC Index".
Differential side oil seal
Exploded View
Transaxle assembly
Differential side oil seal (left side)
Differential side oil seal (right side)
(FWD models only)
: Always replace after every
disassembly.
: Apply CVT fluid
Removal and Installation
REMOVAL
NOTE:
When removing components such as hoses, tubes ...
CAN system (type 4)
MAIN LINE BETWEEN IPDM-E AND DLC CIRCUIT
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the following terminals and connectors for damage, bend and
loose connection (connector side
an ...
Front seat
DRIVER SIDE
DRIVER SIDE : Exploded View
POWER SEAT
Headrest
Seatback support
Seatback board
Seatback heater (if equipped)
Seatback trim
Seatback pad
Seat cushion outer finisher (RH)
Seat cushion rear finisher
(RH)
Seat cushion inner fini ...
