Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Idling Stop System display

Basic information

The current status of the Idling Stop System can be viewed in the vehicle information display.

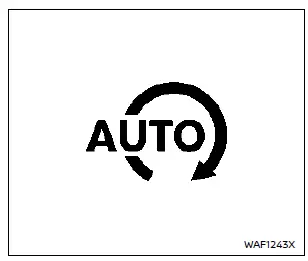

Idling Stop System indicator

This indicator illuminates when the Idling Stop System is active.

The indicator blinks if the system is malfunctioning.

NOTE:

If the indicator blinks, have the system inspected and repaired as necessary. It is recommended to visit a NISSAN dealer for this service.

Idling Stop System ON or OFF

When the Idling Stop System is activated or deactivated using the Idling Stop OFF switch, a message will appear in the vehicle information display.

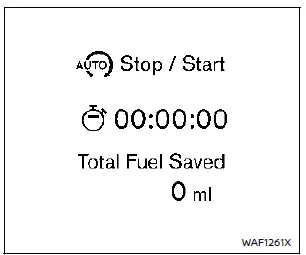

Fuel saved and engine stop time

The fuel saved/engine stop time mode displays:

• The estimated amount of fuel saved each time the engine stops automatically.
• The accumulated time the engine has been stopped by the Idling Stop System.

The total fuel saved and total engine stop time can also be viewed in the vehicle information display.

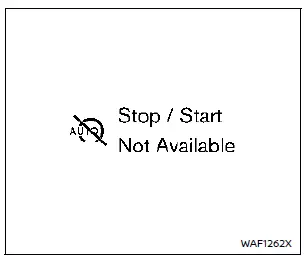

Auto start deactivation

If the engine stops via the Idling Stop System and cannot restart automatically, a message will be displayed.

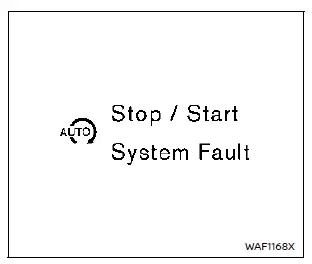

System fault

This message appears when the Idling Stop System is malfunctioning.

It is recommended that the system be checked by a NISSAN dealer.

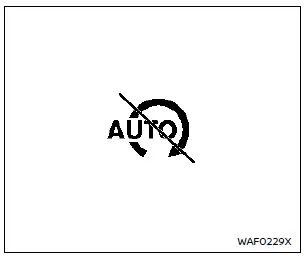

Idling Stop inhibition

This indicator appears when the engine is prevented from automatically stopping due to Inhibition Conditions.

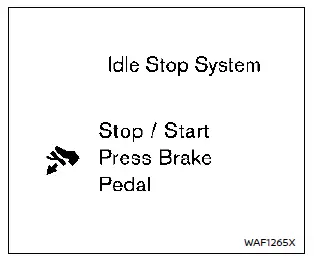

Idling Stop guidance display (further depressing the brake pedal)

This guidance appears when the Idling Stop System is deactivated because the brake pedal is not fully depressed.

Further depress the brake pedal if you wish to activate the Idling Stop System.

The display appears when the “fuel saved/engine stop time” screen is selected.

The display disappears when:

• The Idling Stop System activates.
• The vehicle starts moving.

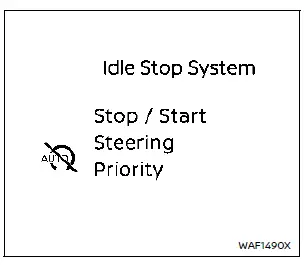

Idling Stop guidance display (detection of the steering operation)

This guidance appears when the Idling Stop System is deactivated because steering wheel movement is detected.

The system remains deactivated while steering input is detected.

The display disappears when:

• The Idling Stop System activates.
• The vehicle starts moving.

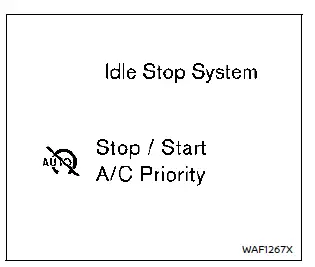

Idling Stop guidance display (priority to air conditioner)

This guidance appears when the Idling Stop System is deactivated because cooling, heating, or dehumidifying functions are prioritized.

The display disappears when:

• The Idling Stop System activates.
• The vehicle starts moving.

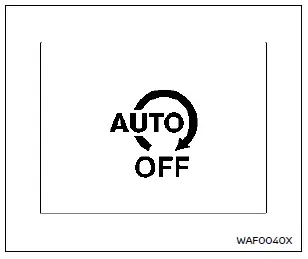

Idling Stop OFF switch

The Idling Stop System can be temporarily disabled by pressing the Idling Stop OFF switch. Press the switch again, or restart the engine, to reactivate the system.

• If disabled while the engine is running, the Idling Stop System prevents the engine from automatically stopping.
• If disabled after the engine has already stopped automatically, the engine will immediately restart (if conditions allow) and remain running for the rest of the journey.

NOTE:

• A brief Idling Stop System ON/OFF message appears in the display when the switch is pressed.
• The system automatically resets to ON each time the ignition switch is moved from OFF to ON.
• It is recommended to turn the Idling Stop System OFF when towing a trailer.
