Nissan Rogue Service Manual: Crash zone sensor

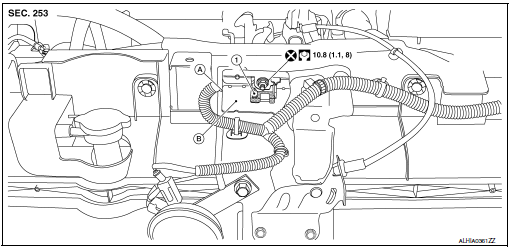

Exploded View
- Crash zone sensor
- Crash zone sensor harness connector
- Bracket
Removal and Installation
WARNING:
- Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
- Do not use air tools or electric tools for servicing.
REMOVAL
- Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
- Remove front grille. Refer to EXT-23, "Removal and Installation".
- Remove crash zone sensor nut.
CAUTION: Do not reuse the crash zone sensor nut.
- Disconnect crash zone sensor harness connector, and remove crash zone sensor and bracket.
CAUTION:
- Replace the crash zone sensor if it has been dropped or sustained an impact.
- Do not strike the crash zone sensor.
- Replace the crash zone sensor if either the driver air bag or the front passenger air bag has been deployed.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse the crash zone sensor nut.
- Do not damage the harness connector during installation.
- After installation is complete, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
- If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".
