Nissan Rogue Service Manual: Combination meter

Removal and Installation

REMOVAL

  1.  Disconnect the negative battery terminal. Refer to PG-77, "Removal and Installation".
  2.  Remove the cluster lid A. Refer to IP-20, "Removal and Installation".

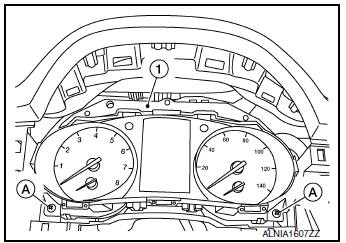

  3.  Remove screws (A), from the combination meter (1).

Removal

  1. Release the clips and remove the combination meter (1) from the instrument panel.

    : Clips

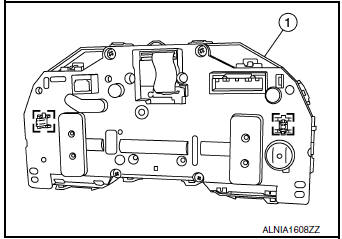

  2.  Disconnect the harness connectors from the combination meter and remove.

Removal

INSTALLATION

Installation is in the reverse order of removal.
