Nissan Rogue Service Manual: Basic inspection

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

OVERALL SEQUENCE

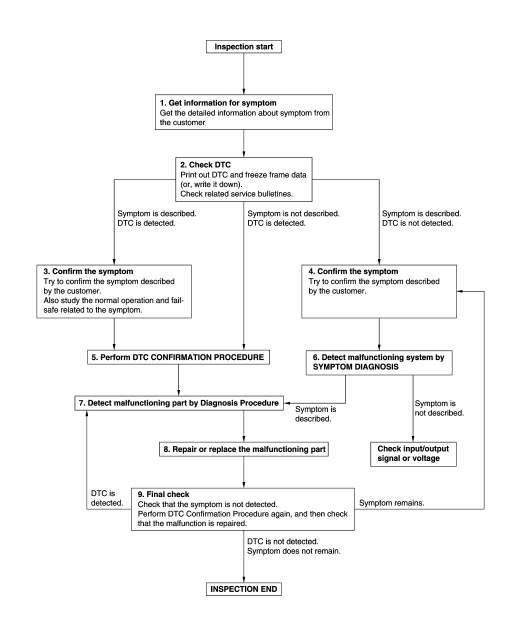

Overall sequence

DETAILED FLOW

1.GET INFORMATION FOR SYMPTOM

  1.  Get detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurs).
  2.  Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.CHECK DTC

  1.  Check DTC.
  2.  Perform the following procedure if DTC is detected.
  1.  Check related service bulletins for information.

Are any symptoms described and any DTC detected? Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.

If two or more DTCs are detected, refer to BCS-107, "DTC Inspection Priority Chart" and determine trouble diagnosis order.

NOTE:

Is DTC detected? YES >> GO TO 7.

NO >> Check according to GI-41, "Intermittent Incident".

6.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step 4, and determine the trouble diagnosis order based on possible causes and symptom.

Is the symptom described? YES >> GO TO 7.

NO >> Monitor input data from related sensors or check voltage of related module terminals using CONSULT.

7.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

Is malfunctioning part detected? YES >> GO TO 8.

NO >> Check according to GI-41, "Intermittent Incident".

8.REPAIR OR REPLACE THE MALFUNCTIONING PART

  1.  Repair or replace the malfunctioning part.
  2.  Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replacement.
  3.  Check DTC. If DTC is detected, erase it.

>> GO TO 9.

9.FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the malfunction is repaired securely.

When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the symptom is not detected.

Is DTC detected and does symptom remain? YES-1 >> DTC is detected: GO TO 7.

YES-2 >> Symptom remains: GO TO 4.

NO >> Before returning the vehicle to the customer, always erase DTC.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ECM

ECM : Description

Performing the following procedure can automatically activate recommunication of ECM and BCM, but only when the ECM is replaced with a new one*.

*: New one means an ECM that has never been energized on-board.

(In this step, initialization procedure by CONSULT is not necessary)

NOTE:

ECM : Work Procedure

1.PERFORM ECM RECOMMUNICATING FUNCTION

  1.  Install ECM.
  2.  Contact backside of registered Intelligent key* to push-button ignition switch, then turn ignition switch to ON.

    *: To perform this step, use the key that is used before performing ECM replacement.

  3.  Maintain ignition switch in the ON position for at least 5 seconds.
  4.  Turn ignition switch to OFF.
  5.  Check that the engine starts.

>> GO TO 2.

2.PERFORM ADDITIONAL SERVICE WHEN REPLACING ECM

Perform EC-136, "Work Procedure".

>> Inspection End.

BCM

BCM : Description

BEFORE REPLACEMENT

When replacing BCM, save or print current vehicle specification with CONSULT configuration before replacement.

NOTE: If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after replacing BCM.

AFTER REPLACEMENT CAUTION: When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so, BCM control function does not operate normally.

NOTE: When replacing BCM, perform the system initialization (NATS). Refer to the CONSULT Immobilizer mode and follow the on-screen instructions.

BCM : Work Procedure

1.SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to BCS-121, "CONFIGURATION (BCM) : Description".

NOTE: If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after replacing BCM.

>> GO TO 2.

2.REPLACE BCM

Replace BCM. Refer to BCS-135, "Removal and Installation".

>> GO TO 3.

3.WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” to write vehicle specification. Refer to BCS-121, "CONFIGURATION (BCM) : Work Procedure".

>> GO TO 4.

4.INITIALIZE BCM (NATS)

Perform BCM initialization. (NATS) Refer to the CONSULT Immobilizer mode and follow the on-screen instructions.

>> Inspection End.
