Nissan Rogue Service Manual: Wiring diagram

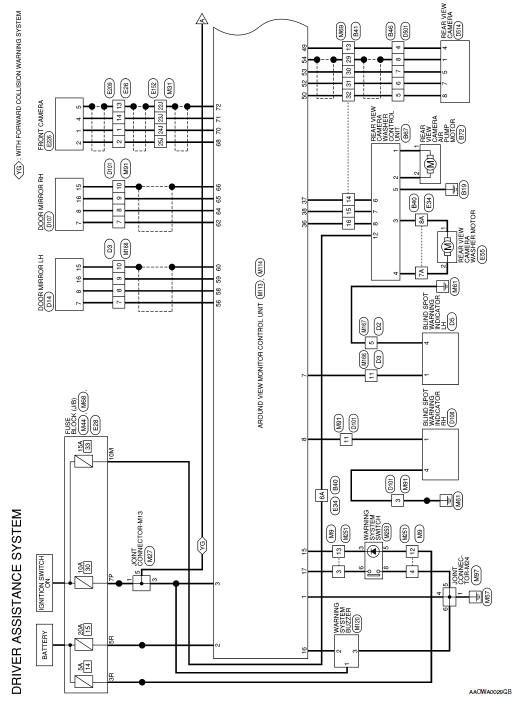

DRIVER ASSISTANCE SYSTEMS

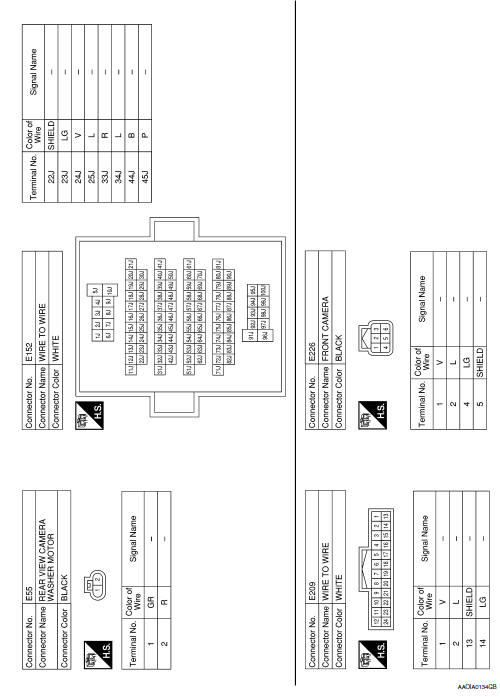

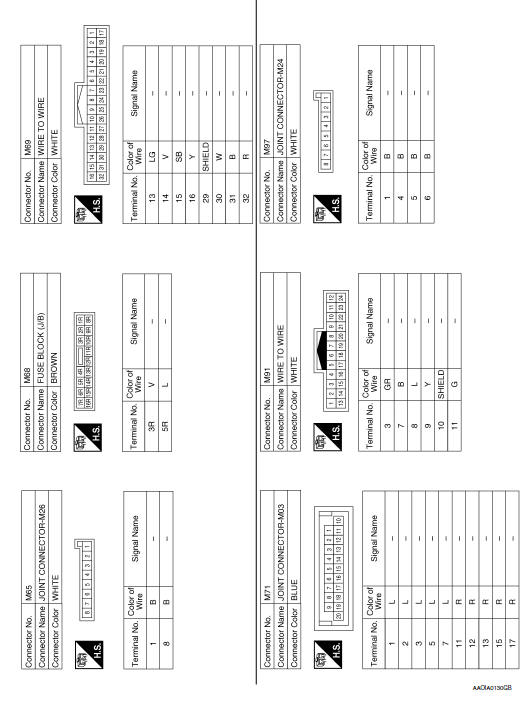

Wiring Diagram

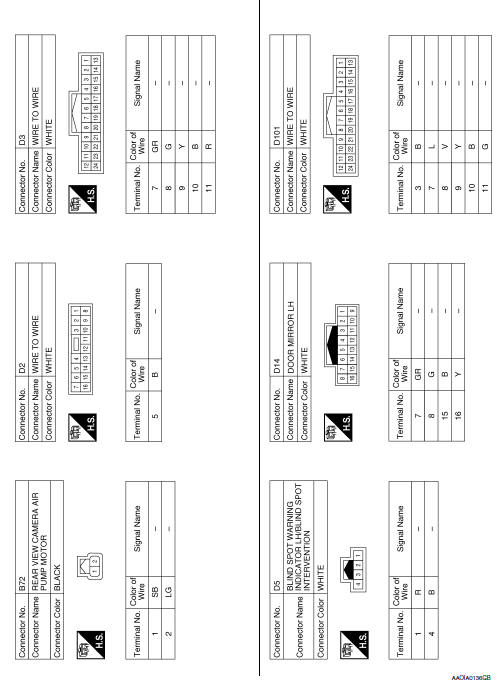

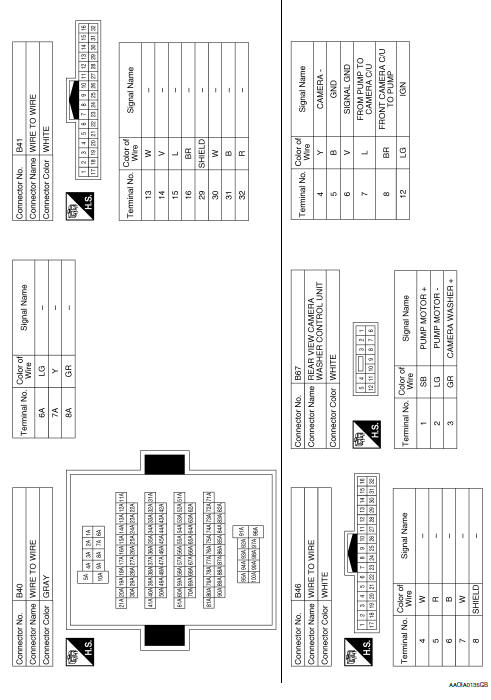

Wiring Diagram

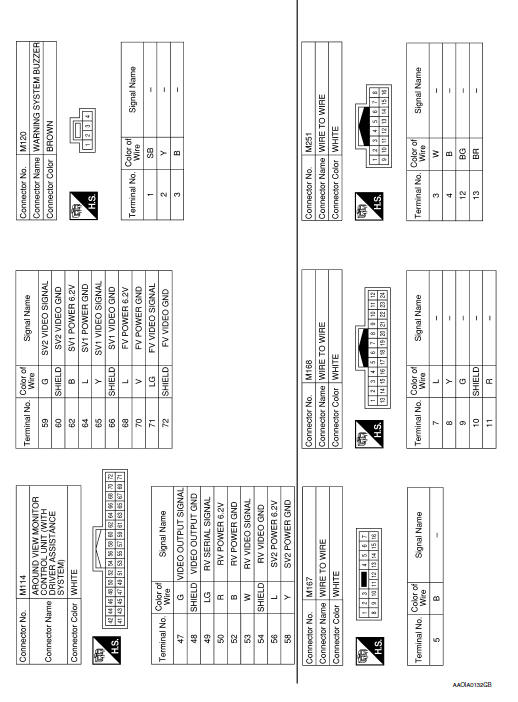

Wiring Diagram

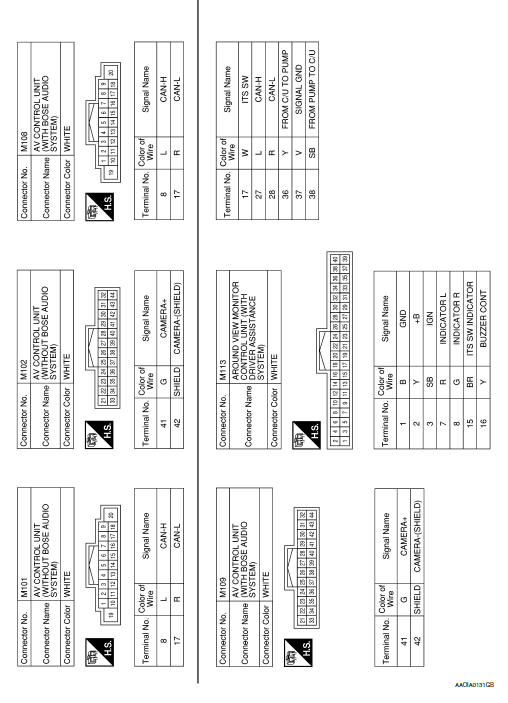

Wiring Diagram

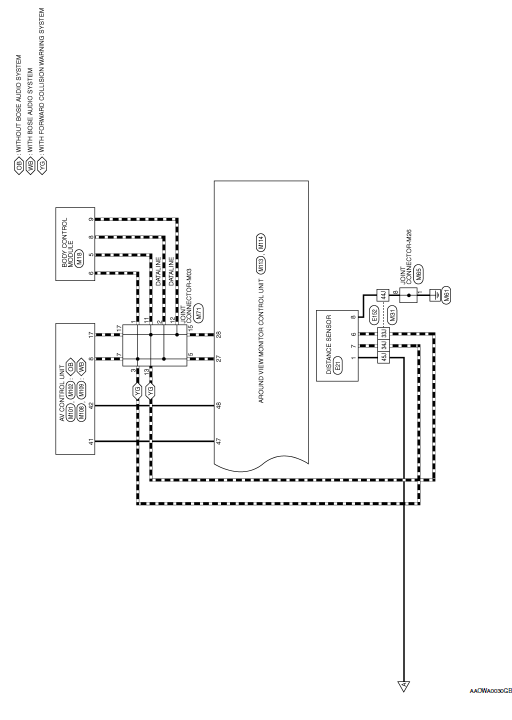

Wiring Diagram

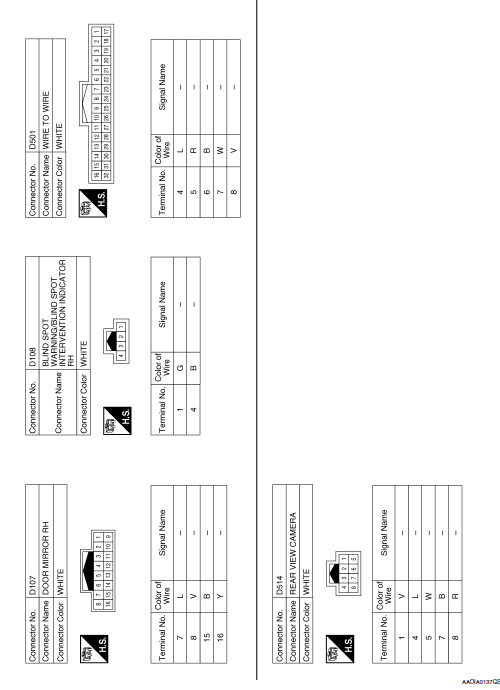

Wiring Diagram

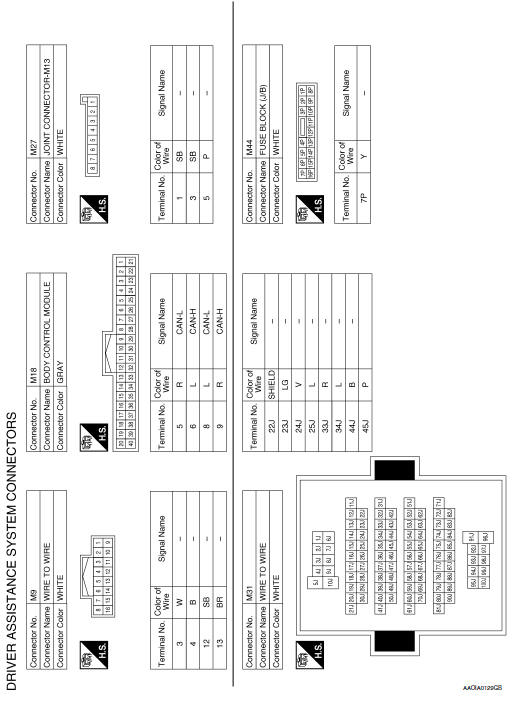

Wiring Diagram

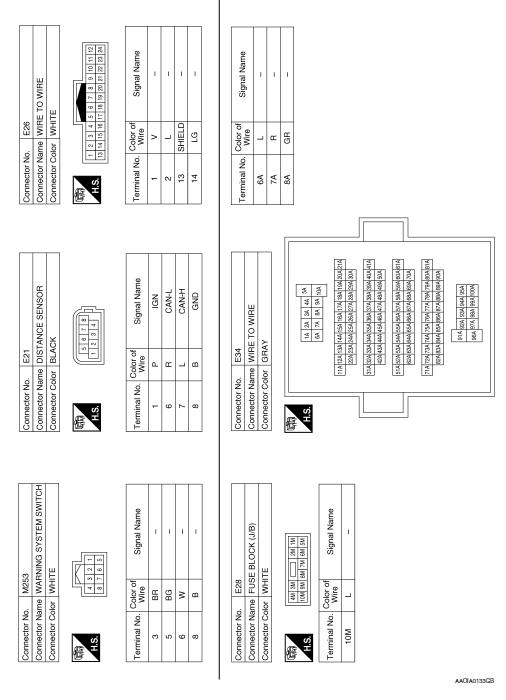

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
AROUND VIEW MONITOR CONTROL UNIT Reference Value VALUES ON THE DIAGNOSIS TOOL TERMINAL LAYOUT PHYSICAL VALUES DTC Index DISTANCE SENSOR Reference Value VALUES ON THE ...

Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW Work Flow OVERALL SEQUENCE DETAILED FLOW 1.INTERVIEW FOR MALFUNCTION It is also important to clarify the customer concerns before starting the inspection. Int ...
