Rearview mirror (if so equipped)
Rearview mirror (if so equipped)

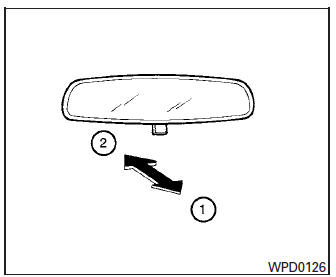

Use the night position 1 to reduce glare from the headlights of vehicles behind you at night.
Use the day position 2 when driving in daylight hours.
WARNING Use the night position only when necessary, because it reduces rear view clarity. |
