Nissan Rogue Service Manual: Location of plastic parts

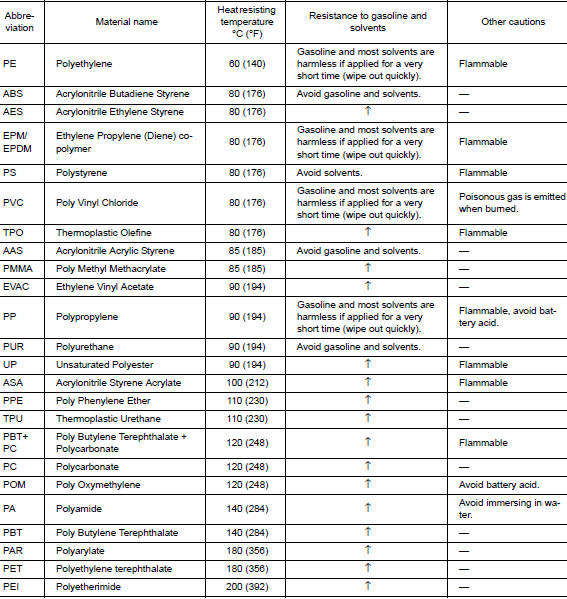

Precautions for Plastics
CAUTION:
- When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.
- Plastic parts should be repaired and painted using methods suiting the materials, characteristics

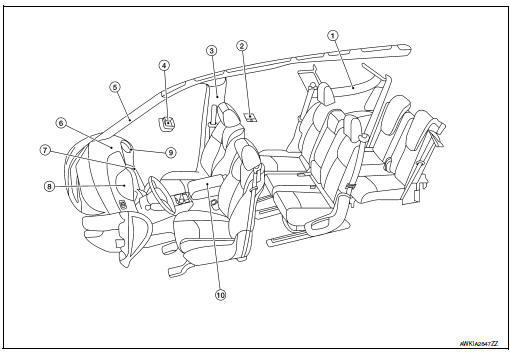

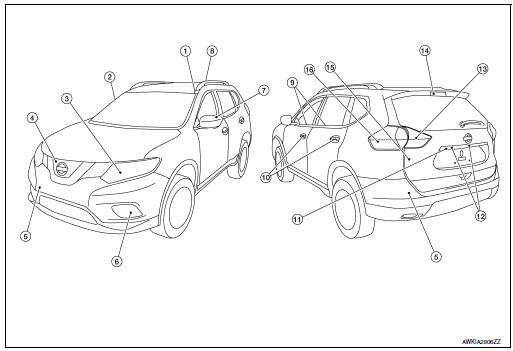

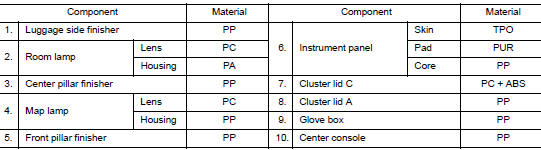

Location of Plastic Parts
Repairing high strength steel
High Strength Steel (HSS)
High strength steel is used for body panels in order to reduce vehicle
weight.
Accordingly, precautions in repairing automotive bodies made of high strength
steel are ...
