Nissan Rogue Service Manual: Front wiper drive assembly

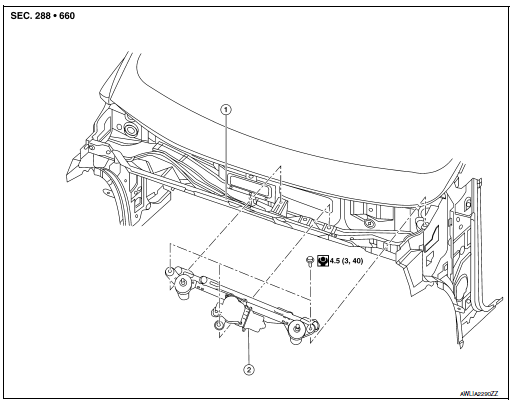

Exploded View

REMOVAL

Exploded View

  1. Cowl top
  2. Front wiper drive assembly

Removal and Installation

REMOVAL

  1.  Remove cowl top cover. Refer to EXT-25, "Removal and Installation".
  2.  Disconnect harness connector from front wiper motor.
  3.  Remove bolts and front wiper drive assembly.

INSTALLATION

Installation is in the reverse order of removal.
