Nissan Rogue Service Manual: Diagnosis system (BCM) (with intelligent key system)

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Roof / System description / Diagnosis system (BCM) (with intelligent key system)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode

Description

Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components
Work support The settings for BCM functions can be changed
Configuration
  • The vehicle specification can be read and saved.
  •  The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.

SYSTEM APPLICATION

BCM can perform the following functions.

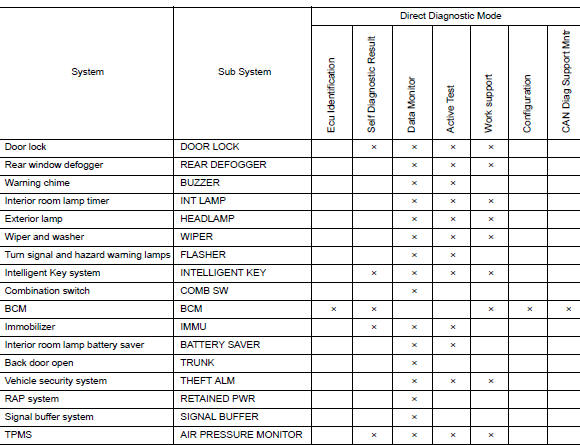

System application

RETAINED PWR

RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)

DATA MONITOR

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
