Nissan Rogue Service Manual: Combination meter

Reference Value

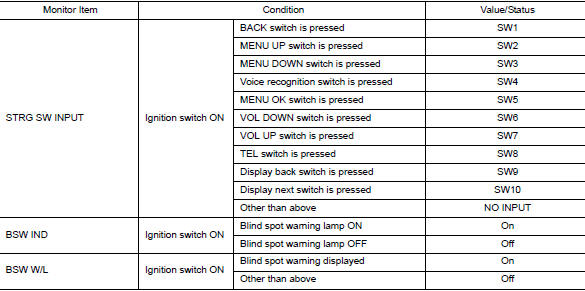

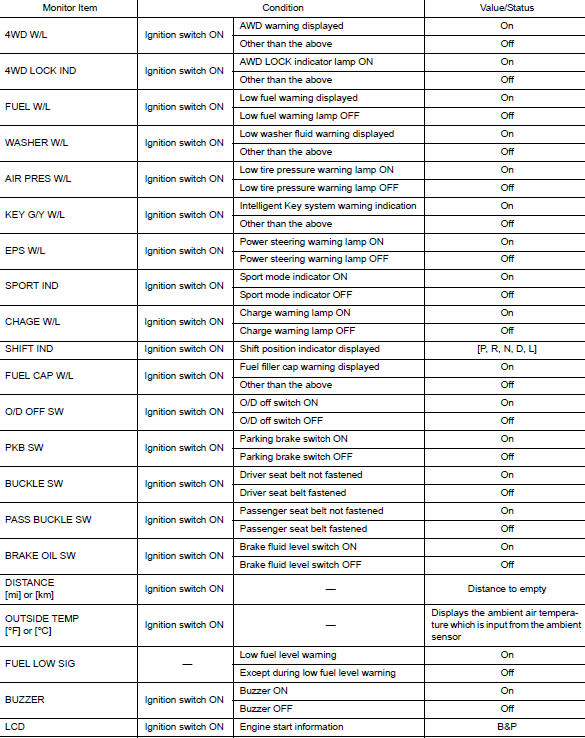

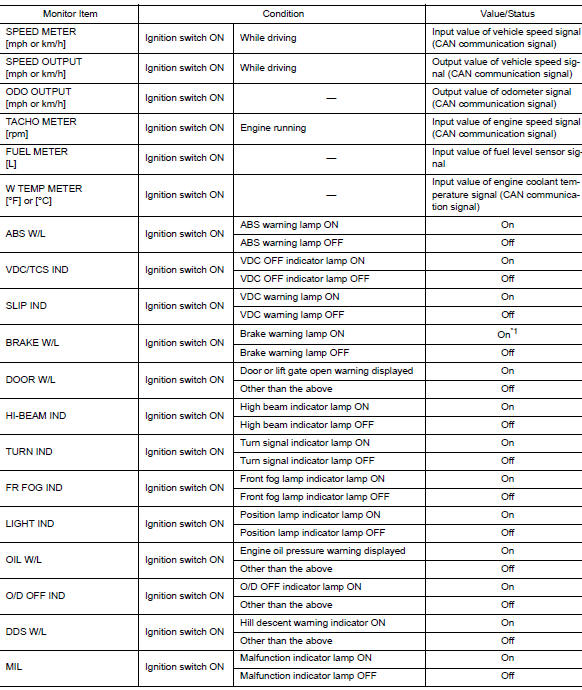

VALUES ON THE DIAGNOSIS TOOL

Values on the diagnosis tool

Values on the diagnosis tool

Values on the diagnosis tool

*: DDS (hill descent control)

NOTE: Some items are not available according to vehicle specification.

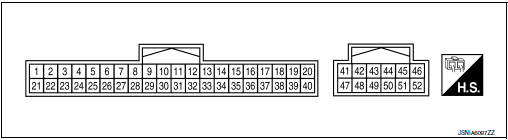

TERMINAL LAYOUT

Terminal layout

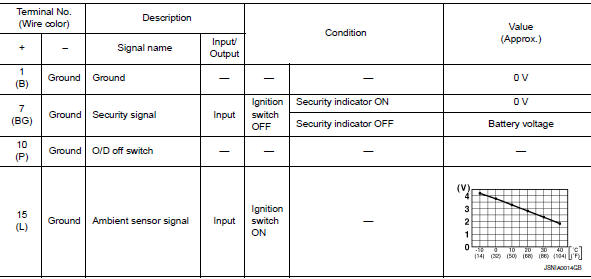

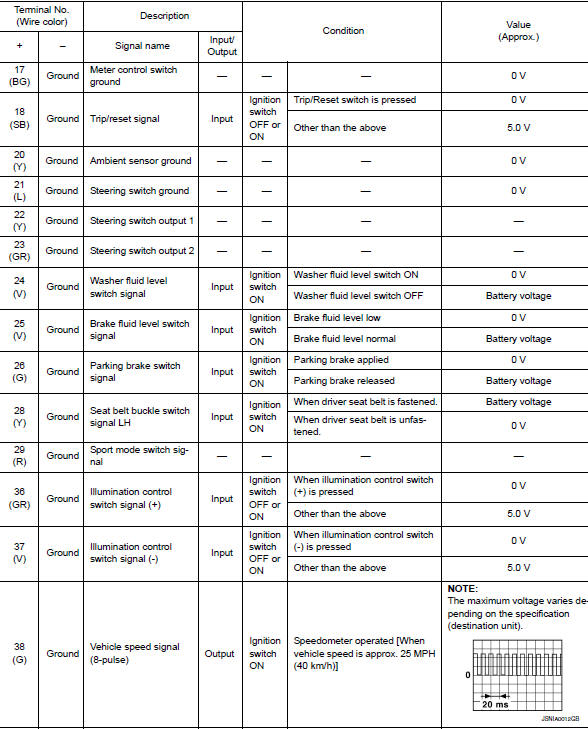

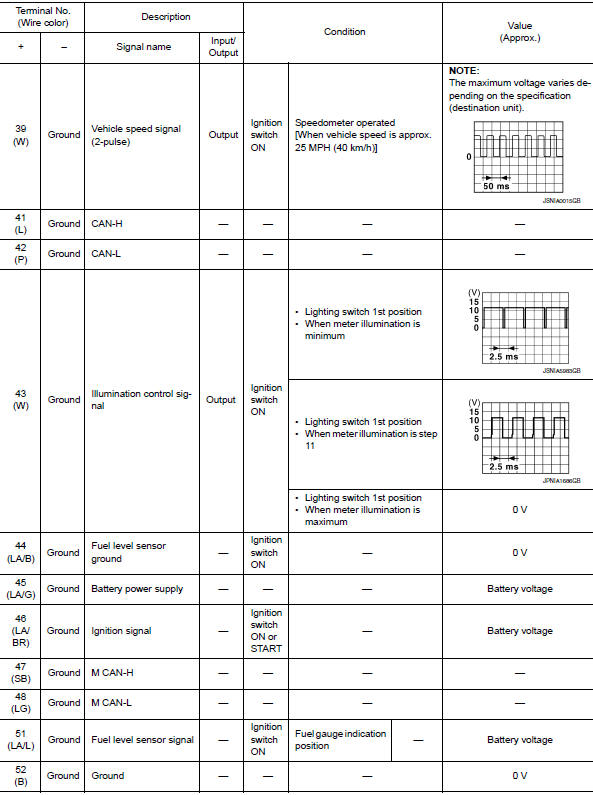

PHYSICAL VALUES

Physical values

Physical values

Physical values

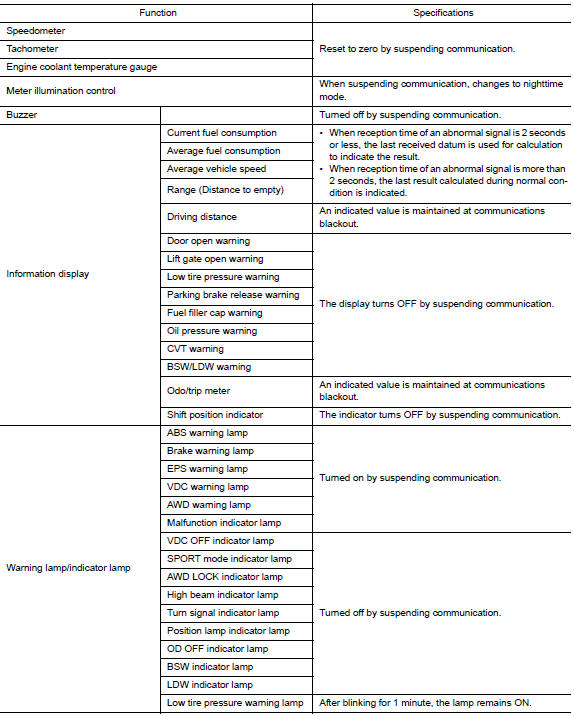

Fail-safe

The combination meter activates the fail-safe control if the CAN communication lines between each unit are malfunctioning

Fail-safe

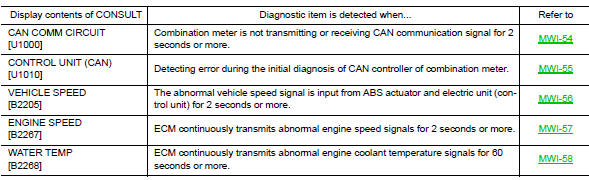

DTC Index

DTC Index
