Nissan Rogue Service Manual: Body component parts

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Body Repair Manual / Preparation / Body component parts

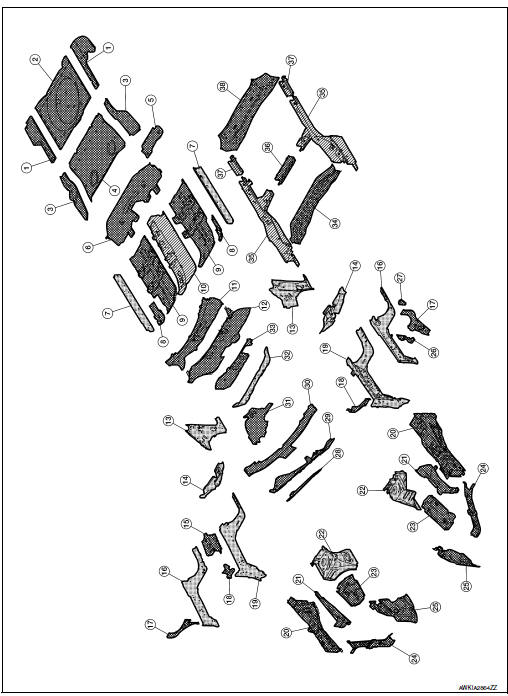

Underbody Component Parts

Underbody Component Parts

Both sided anti-corrosive precoated steel portions

High strength steel (HSS) portions: 440 MPa

Both sided anti-corrosive steel and HSS portions: 440 MPa

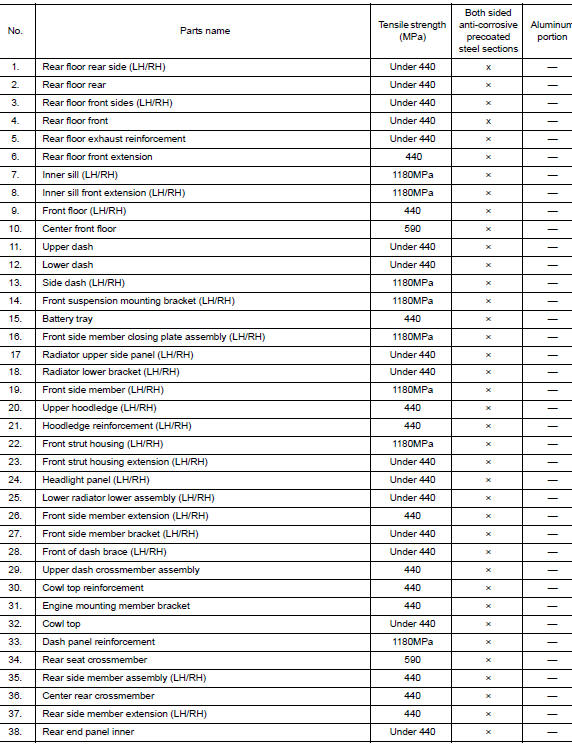

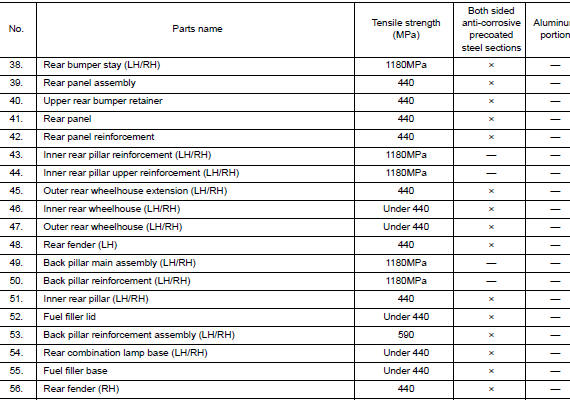

Underbody Component Parts

CAUTION: If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
Tensile strength column shows the largest strength value of a part in the component part.

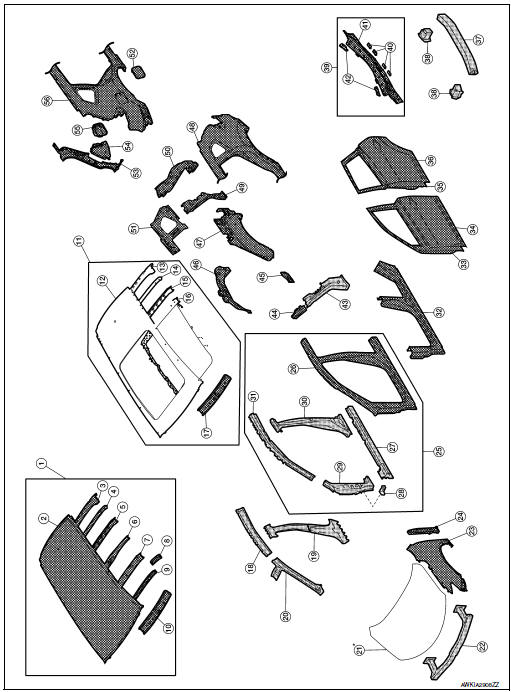

Body Component Parts

Body Component Parts

Both sided anti-corrosive precoated steel portions

High strength steel (HSS) portions

Both sided anti-corrosive steel and HSS portions

* Aluminum portion

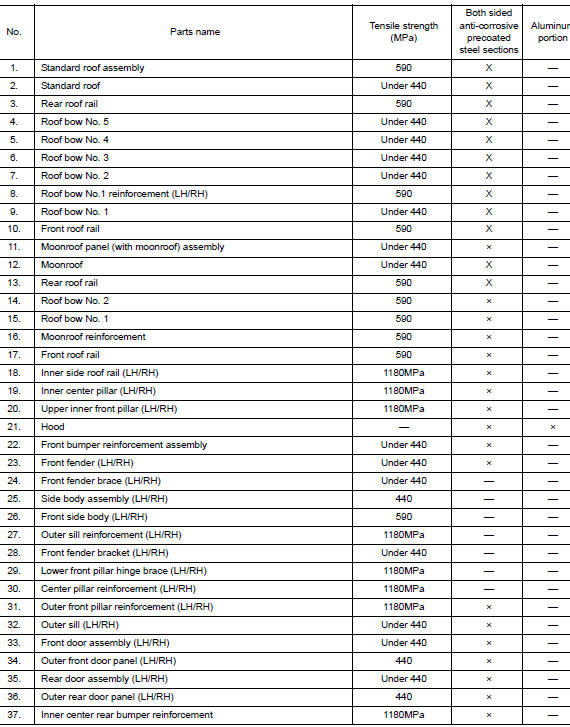

Body Component Parts

CAUTION: If the high strength steel (ultra high strength steel) is bent or broken, replace by assembly for the supply part.

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
Tensile strength column shows the largest strength value of a part in the component part.
