Nissan Rogue Service Manual: Back door outer finisher

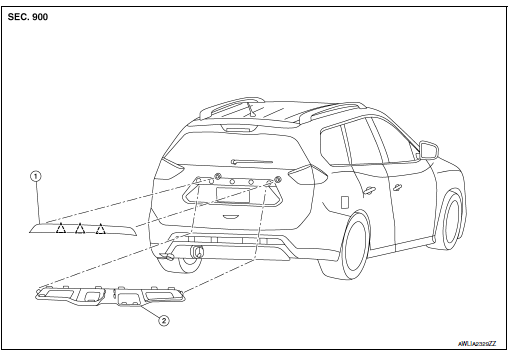

Exploded View

Exploded View

  1. Back door outer finisher
  2. License lamp finisher

Clip

Removal and Installation

REMOVAL

  1.  Remove back door finisher. Refer to INT-38, "Removal and Installation".

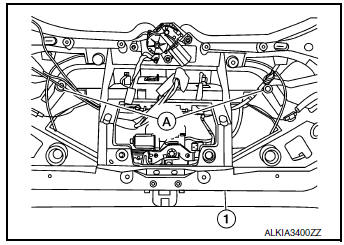

  2.  Remove plugs (A) from back door (1).

Removal

  1. Remove back door outer finisher nuts.

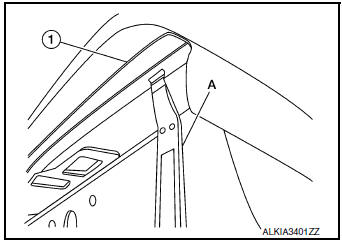

  2. Release clips using suitable tool (A) and remove back door outer finisher (1).

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: When installing back door outer finisher, check that clips are securely placed in back door panel holes.
