Nissan Rogue Service Manual: Wiring diagram

BRAKE CONTROL SYSTEM

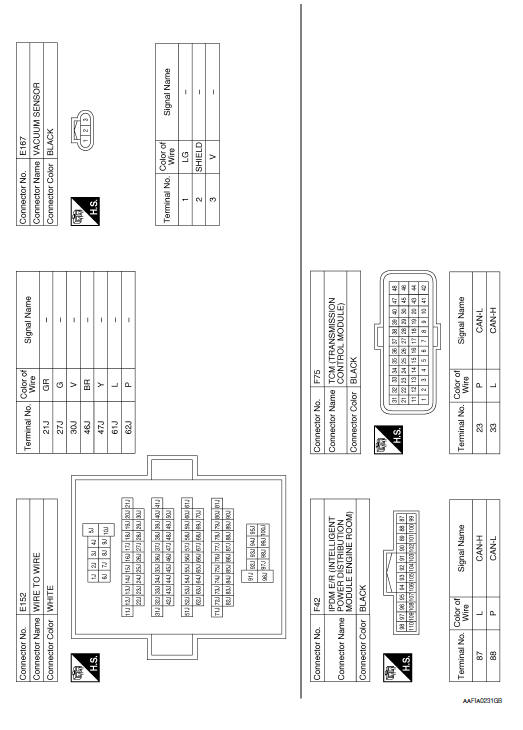

Wiring Diagram

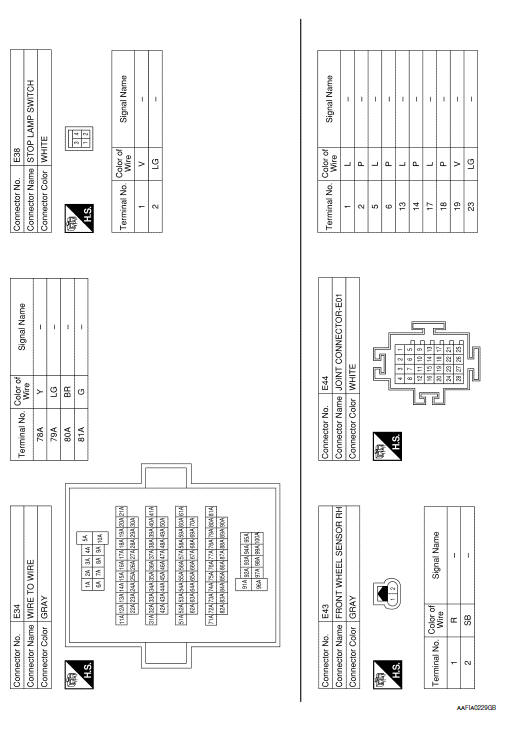

Wiring Diagram

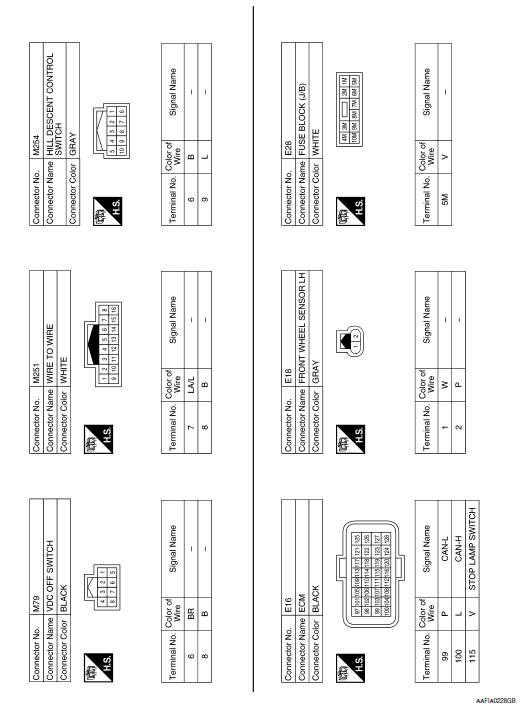

Wiring Diagram

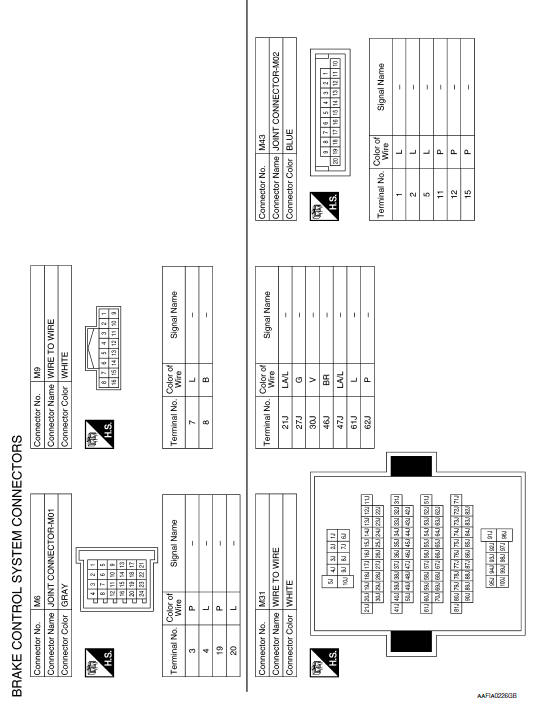

Wiring Diagram

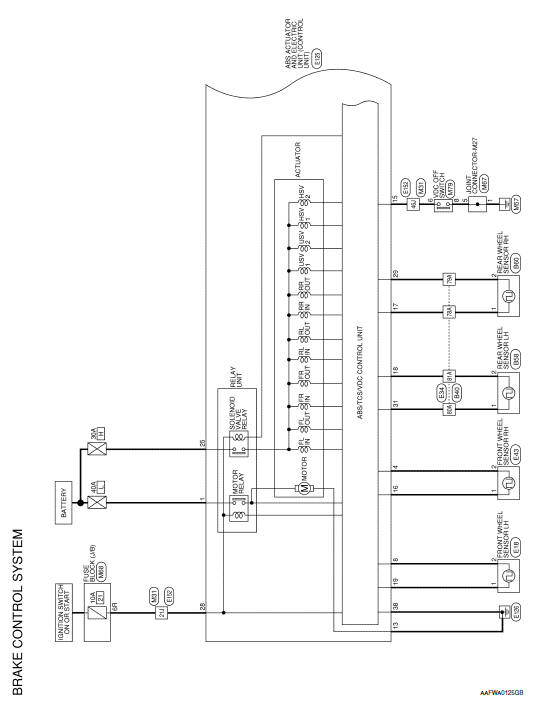

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) Reference Value CONSULT DATA MONITOR STANDARD VALUE NOTE: The following table includes information (items) inapplicable to this vehicle. For informa ...
