Nissan Rogue Service Manual: Wiring diagram

MANUAL AIR CONDITIONING SYSTEM

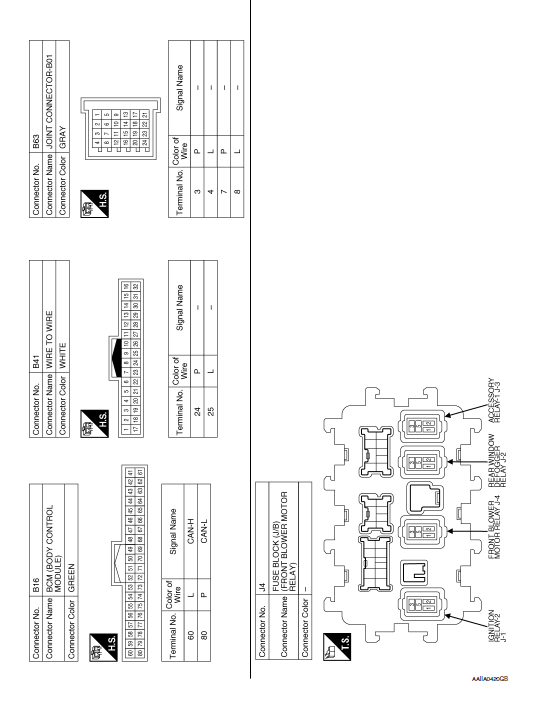

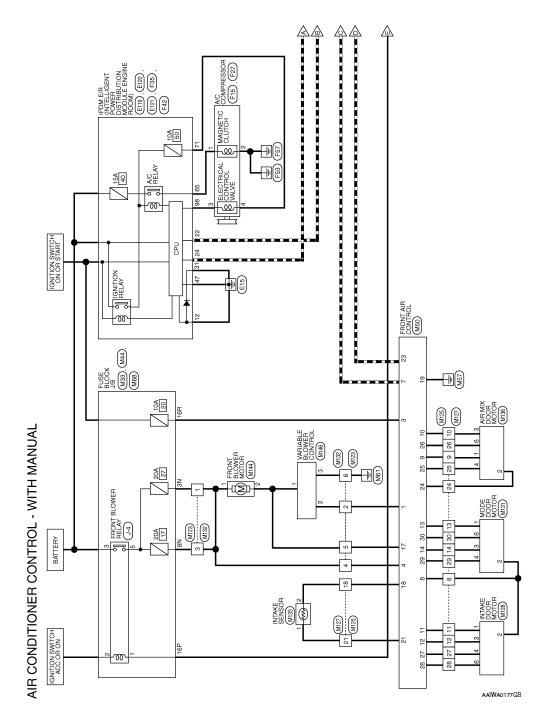

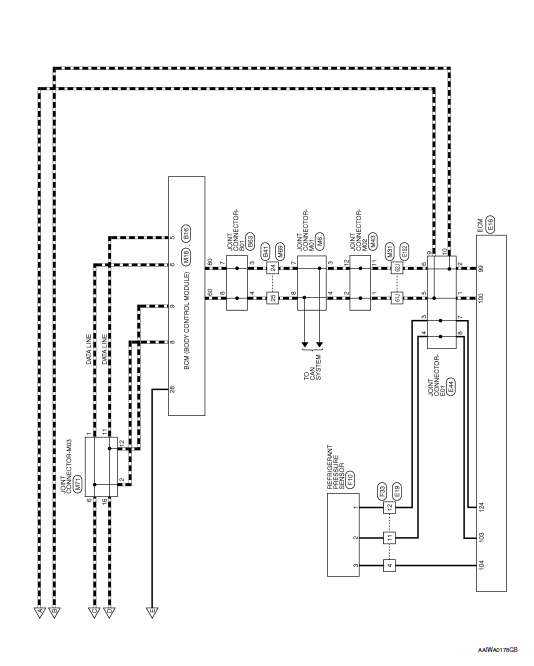

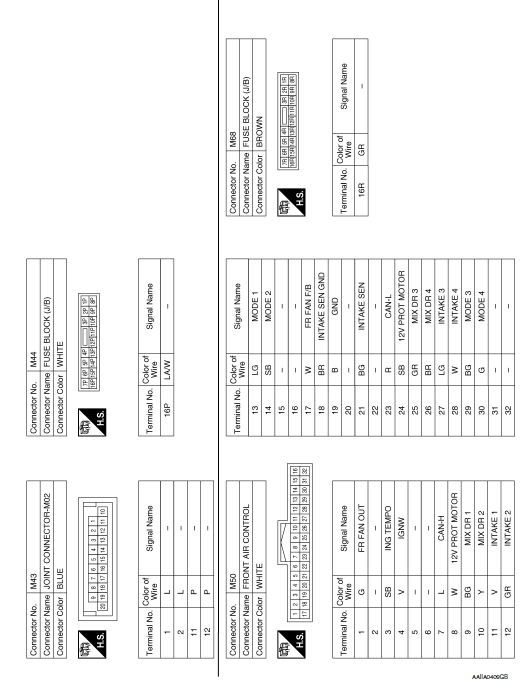

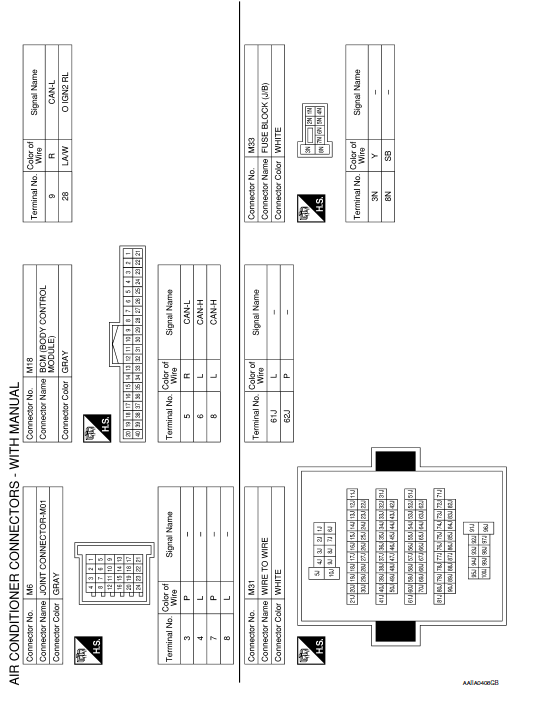

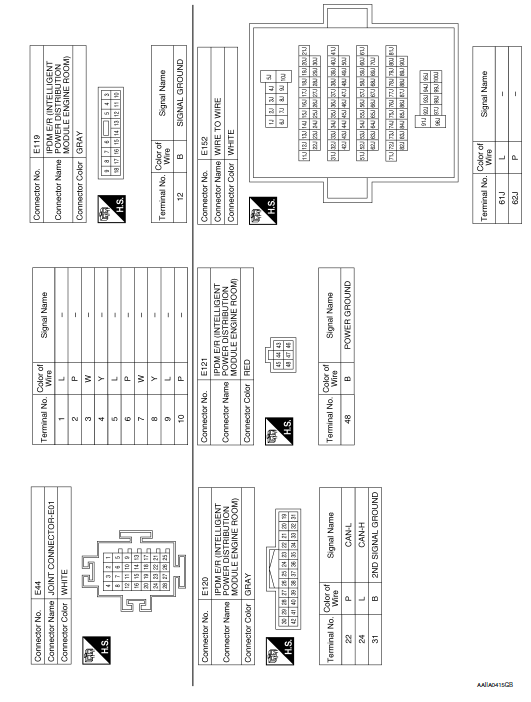

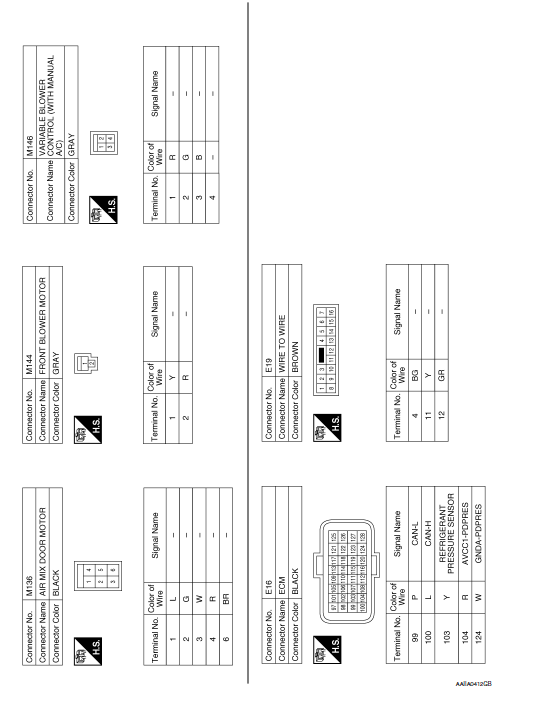

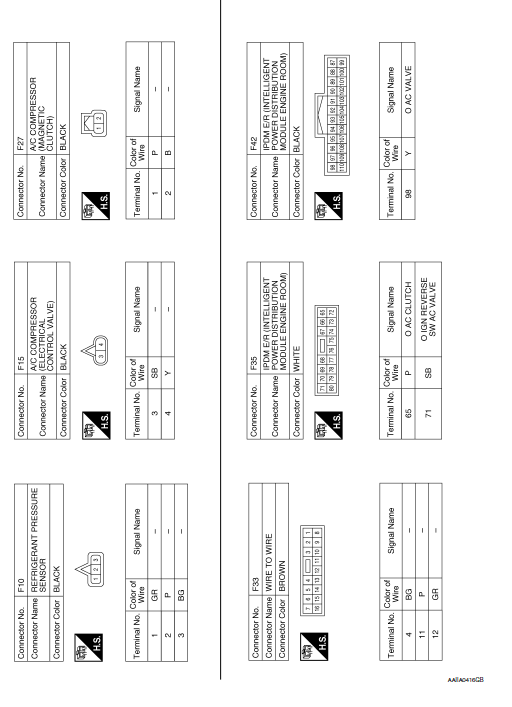

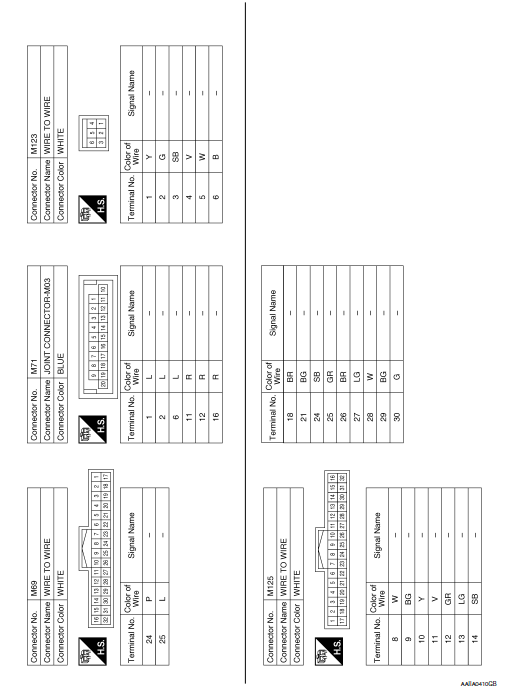

Wiring Diagram

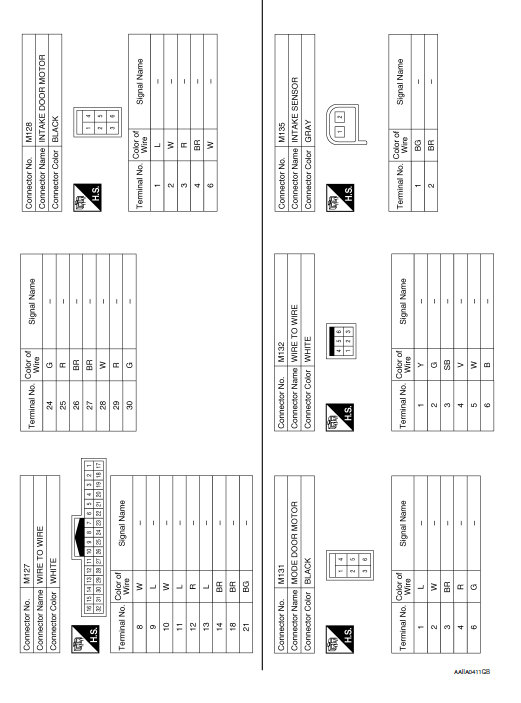

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
FRONT AIR CONTROL Reference Value TERMINAL LAYOUT PHYSICAL VALUES DTC Inspection Priority Chart If some DTCs are displayed at the same time, perform inspections one by one based ...

Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW Work Flow OVERALL SEQUENCE DETAILED FLOW 1.INTERVIEW CUSTOMER Interview the customer to obtain as much information as possible about the conditions and environ ...
