Nissan Rogue Service Manual: Wheel sensor

FRONT WHEEL SENSOR

FRONT WHEEL SENSOR : Exploded View

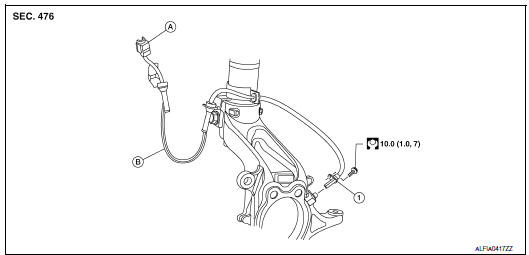

Front wheel sensor : exploded view

  1. Front LH wheel sensor

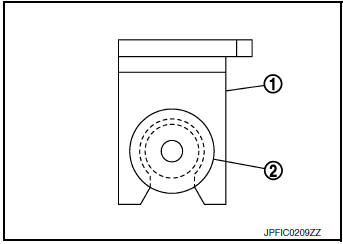

  1. Harness connector
  2. Slant line

FRONT WHEEL SENSOR : Removal and Installation

CAUTION:

REMOVAL

  1.  Remove the front wheel and tire using power tool. Refer to WT-57, "Adjustment".
  2.  Partially remove the fender protector to gain access to the wheel sensor harness connector. Refer to EXT- 28, "FENDER PROTECTOR : Exploded View".
  3.  Disconnect the harness connector from the front wheel sensor.
  4.  Remove the front wheel sensor bolt from the wheel hub and bearing.
  5.  Remove the front wheel sensor from the strut bracket.
  6.  Remove the front wheel sensor from the steering knuckle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

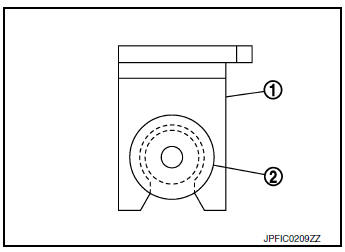

Installation

REAR WHEEL SENSOR

REAR WHEEL SENSOR : Exploded View

FWD

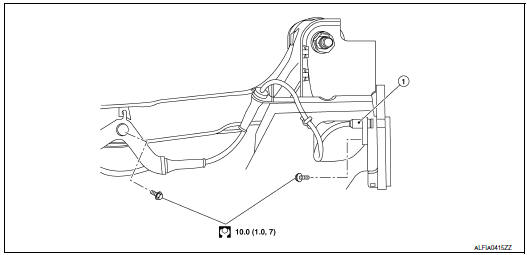

Rear wheel sensor : exploded view

  1. Rear LH wheel sensor

AWD

Rear wheel sensor : exploded view

  1. Rear LH wheel sensor

REAR WHEEL SENSOR : Removal and Installation

CAUTION:

REMOVAL

  1.  Remove the rear wheel and tire using power tool. Refer to WT-57, "Adjustment".
  2.  Remove the rear wheel sensor bolt.
  3. Disconnect the harness connector from the rear wheel sensor.
  4. Remove the rear wheel sensor from the wheel hub and bearing (FWD) or the rear axle housing (AWD).
  5.  Remove the rear wheel sensor harness grommet from the bracket.
  6.  Remove the bolt, the rear wheel sensor harness, and the rear wheel sensor from the bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Installation

Removal and installation
...

Sensor rotor
FRONT SENSOR ROTOR FRONT SENSOR ROTOR : Removal and Installation - Front Sensor Rotor The front wheel sensor rotor is an integral part of the wheel hub and bearing and cannot be disassembled. R ...
