Nissan Rogue Service Manual: Water pump

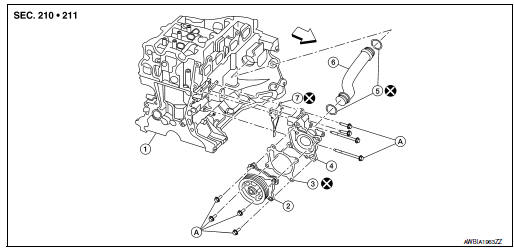

Exploded View
- Cylinder block
- Water pump
- Water pump gasket
- Water pump housing
- O-ring
- Water pipe
- Water pump housing gasket
- Refer to INSTALLATION
Removal and Installation
REMOVAL
- Drain engine coolant. Refer to CO-8, "Draining".
WARNING: Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.
CAUTION:
- Perform this step when the engine is cold.
- Do not spill engine coolant on the drive belt.
- Remove the generator. Rafer to CHG-20, "Removal and Installation".
- Remove water pump.
- Engine coolant will leak from the cylinder block.
CAUTION:
- Handle water pump vane so that it does not contact any other parts.
- Water pump cannot be disassembled and should be replaced as a unit.
INSTALLATION

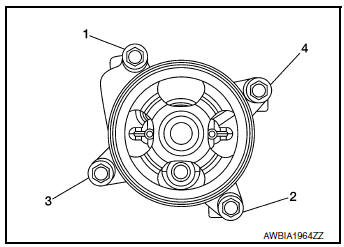

- Tighten water pump bolts in sequence to specification.
25 N·m (2.6 kg-m, 18 ft-lb)

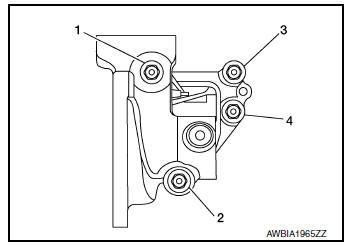

- Tighten water pump housing bolts in sequence to specification.
25 N·m (2.6 kg-m, 18 ft-lb)
Installation of remaining components is in the reverse order of removal.
- After installation, refill coolant and check for leaks. Refer to CO-9, "Refilling" and CO-8, "Inspection".
CAUTION:
- Do not spill coolant in engine compartment. Use a shop cloth to absorb coolant.
- Do not reuse water pump gasket.
Inspection
М
- Check visually that there is no significant dirt or rusting on water pump body and vane.

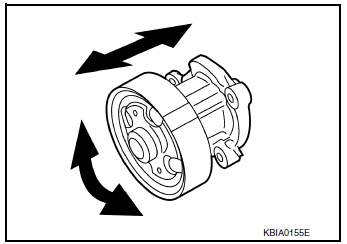

- Check that there is no looseness in vane shaft, and that it turns smoothly when rotated by hand.
- Replace water pump, if necessary.
INSPECTION AFTER INSTALLATION
- Check for leakage of engine coolant using the radiator cap tester adapter (commercial service tool) and the radiator cap tester (commercial service tool). Refer to CO-8, "Inspection".
- Start and warm up engine. Check visually that there is no leakage of engine coolant.
