Nissan Rogue Service Manual: Unit removal and installationEMBER
REAR SUSPENSION M

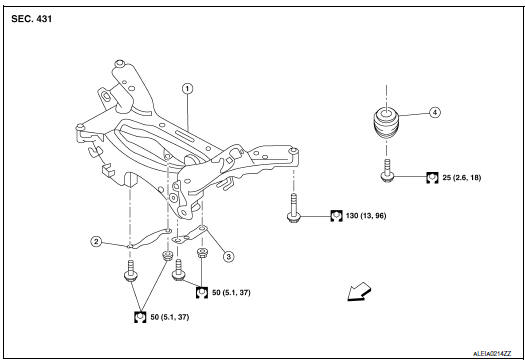

Exploded View
- Rear suspension member
- Suspension member stay (RH)
- Suspension member stay (LH)
- Bound bumper
Front
Removal and Installation - FWD
REMOVAL
- Remove wheel and tires using power tool. Refer to WT-60, "Exploded View".
- Remove muffler assembly. Refer to EX-5, "Exploded View".
- Remove coil spring. Refer to RSU-8, "Removal and Installation - FWD".
- Remove lower link. Refer to RSU-17, "Removal and Installation".
- Remove upper link. Refer to BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installation".
- Remove rear stabilizer bar.Refer to RSU-21, "Removal and Installation".
- Remove rear shock absorber. Refer to RSU-14, "Removal and Installation".
- Set suitable jack under rear suspension member.
- Remove bolts from rear suspension member.
- Slowly lower suitable jack and remove rear suspension member.
CAUTION: Secure suspension assembly to a suitable jack while removing it.
INSTALLATION Installation is in the reverse order of the removal.
- When installing suspension member stay, face each arrow on the part toward the inside of the vehicle.
- Align the matching marks made during removal when reusing the disc brake rotor.
- Perform the final tightening of each parts removed when removing rear suspension assembly under unladen conditions.
- Check wheel sensor harness for proper connection. Refer to BRC-133, "REAR WHEEL SENSOR : Exploded View".
Removal and Installation - AWD
REMOVAL
- Remove wheel and tires using power tool. Refer to WT-60, "Exploded View".
- Remove muffler assembly. Refer to EX-5, "Exploded View".
- Remove coil spring. Refer to RSU-10, "Removal and Installation - AWD".
- Remove lower link. Refer to RSU-17, "Removal and Installation".
- Remove upper link. Refer to BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installation".
- Remove rear stabilizer bar.Refer to RSU-21, "Removal and Installation".
- Remove rear drive shaft. Refer to RAX-19, "Removal and Installation".
- Remove rear propeller shaft. Refer to DLN-99, "Removal and Installation".
- Remove rear final drive. Refer to DLN-119, "Removal and Installation".
- Remove rear shock absorber. Refer to RSU-14, "Removal and Installation".
- Set suitable jack under rear suspension member.
- Remove bolts from rear suspension member.
- Slowly lower suitable jack and remove rear suspension member.
CAUTION: Secure suspension assembly to a suitable jack while removing it.
- Perform the inspection after removal. Refer to RSU-23, "Inspection".
INSTALLATION
Installation is in the reverse order of the removal.
- When installing suspension member stay, face each arrow on the part toward the inside of the vehicle.
- Align the matching marks made during removal when reusing the disc brake rotor.
- Perform the final tightening of each parts removed when removing rear suspension assembly under unladen conditions.
- Check wheel sensor harness for proper connection. Refer to BRC-133, "REAR WHEEL SENSOR : Exploded View".
- Perform the inspection after installation. Refer to RSU-20,
"Inspection".
Inspection
INSPECTION AFTER REMOVAL
Check rear suspension member for deformation, cracks, or any other damage. Replace it if necessary.
INSPECTION AFTER INSTALLATION
- Adjust parking brake operation. Refer to PB-4, "Inspection and Adjustment".
- Check wheel alignment. Refer to RSU-6, "Inspection".
