Nissan Rogue Owners Manual: Tilt/telescopic steering
WARNING
- Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
- Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and comfort.
The driver’s air bag inflates with great
force. If you are unrestrained, leaning
forward, sitting sideways or out of position
in any way, you are at greater risk of
injury or death in a crash. You may also
receive serious or fatal injuries from the
air bag if you are up against it when it
inflates. Always sit back against the
seatback and as far away as practical
from the steering wheel. Always use the
seat belts.
|
Manual operation

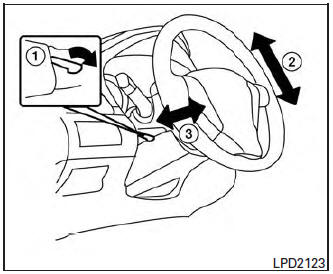

Tilt and telescopic operation
Pull the lock lever 1 down:
- Adjust the steering wheel forward or backward
in direction 3 to the desired position.
- Adjust the steering wheel up or down in
direction 2 to the desired position.
Push the lock lever 1 up firmly to lock the
steering wheel in place.
Opener operation
Opener operation
The fuel-filler lid release is located below the
instrument panel. To open the fuel-filler lid, pull
the release. To lock, close the fuel-filler lid securely. ...
Sun visors
To block glare from the front, swing down the
main sun visor.
To block glare from the side, remove the
main sun visor from the center mount and
swing the visor to the si ...
