Nissan Rogue Service Manual: Third row seat

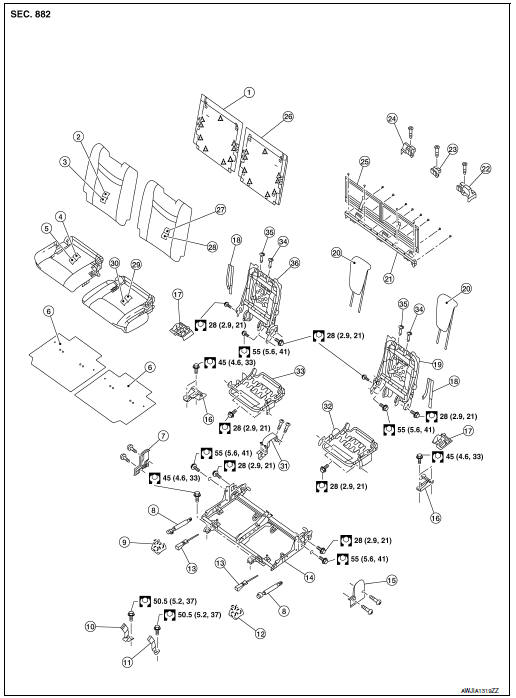

Exploded View

Exploded View

  1. Seatback board (RH)
  2. Seatback trim (RH)
  3. Seatback pad (RH)
  4.  Seat cushion trim (RH)
  5. Seat cushion pad (RH)
  6. Seat cushion silencer (LH/RH)
  7. Seat hinge finisher (RH)
  8. Gas stay
  9. Bolt cover (RH)
  10. Seat belt buckle (RH)
  11.  Seat belt buckle (LH)
  12.  Bolt cover (LH)
  13.  Stopper pin
  14.  Seat frame support
  15.  Seat hinge finisher (LH)
  16.  Seat striker (LH/RH)
  17. Seat striker finisher (LH/RH)
  18.  Seatback pull strap (LH/RH)
  19.  Seatback frame (LH)
  20. Headrest (LH/RH)
  21. Third row seat cross member
  22. Third row seat cross member finisher (LH)
  23.  Third row seat cross member finisher (center)
  24.  Third row seat cross member finisher (RH)
  25.  Third row luggage floor
  26. Seatback board (LH)
  27.  Seatback trim (LH)
  28.  Seatback pad (LH)
  29. Seat cushion trim (LH)
  30. Seat cushion pad (LH)
  31.  Seat frame finisher (center)
  32.  Seat cushion frame (LH)
  33. Seat cushion frame (RH))
  34.  Headrest holder (locked)
  35. Headrest holder (free)
  36. Seatback frame (RH)

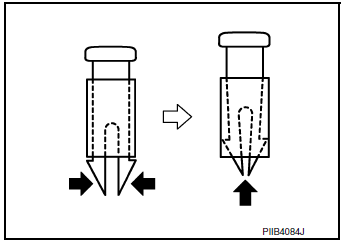

Clip
Pawl

Seatback

DISASSEMBLY

NOTE: LH shown : RH similar

  1.  Remove third row seat. Refer to SE-43, "Removal and Installation".
  2.  Remove headrest.
  3.  Remove screws (A) and third row seat cross member finishers (1, 2, 3).

Disassembly

  1. Release seatback pull strap stop using a suitable tool.

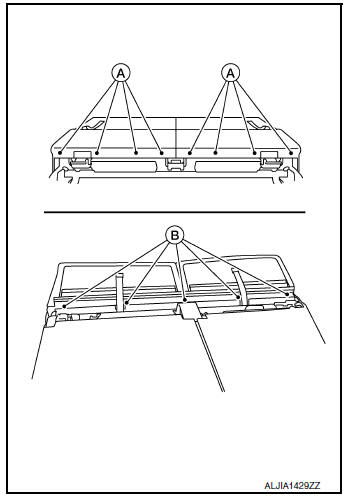

  2. Release third row luggage board outer clips (A) and inner clips (B) using a suitable tool.

Disassembly

  1. Release third row luggage board retainer strap clips (A) (LH/RH) using a suitable tool and remove third row luggage board.

Disassembly

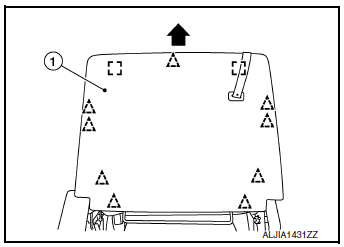

  1. Release clips using a suitable tool then gently pull seatback board (1) forward and out and remove as shown ( ).

CAUTION: After removing the seatback board, check the orientation of clips. Improper installation of clips could result in damage to the seatback board. : Clip

Disassembly

  1. Reinstall clips in proper locations on the seatback board.

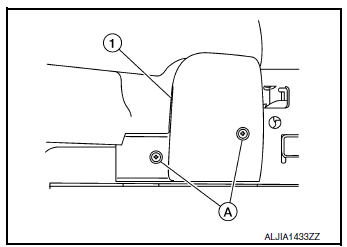

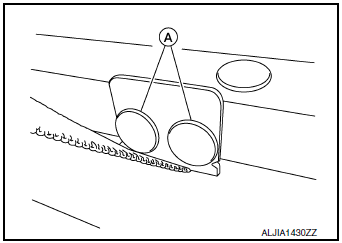

  2. Remove screws (A) and remove seat hinge finisher (1).

Disassembly

  1. Release J-hooks from seat frame and remove seatback trim and seatback pad as an assembly.

Disassembly

  1. Reach up behind the seatback pad, release the headrest holder locks as shown and remove the headrest holders.

    CAUTION: Before removing/installing headrest holder, check its orientation (front/rear and right/left).

Disassembly

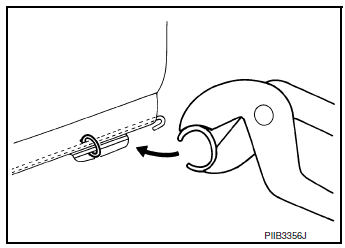

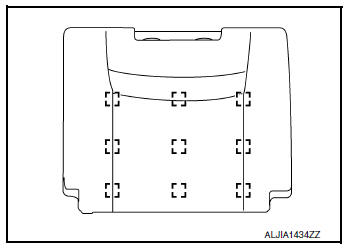

  1. Release hook and loop finisher and remove hog rings, then separate seatback trim from seatback pad.

    NOTE: Remove all pieces of hog rings and discard them. : Hog ring

Disassembly

ASSEMBLY

Assembly is in the reverse order of disassembly.

Assembly

Seat Cushion

DISASSEMBLY

NOTE:

  1. Remove third row seat. Refer to SE-43, "Removal and Installation".
  2. Remove third row seat cross member. Refer to SE-44, "Third Row Seat Cross Member".

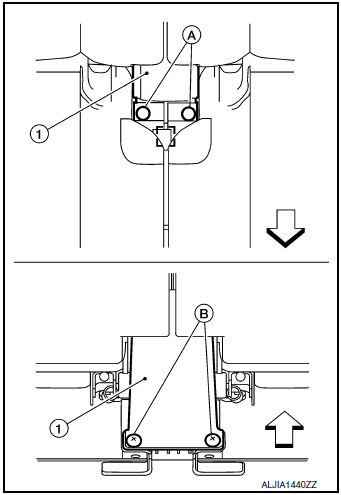

  3. Using a suitable tool, release seat cushion trim clips (A) and remove rear screws (B). Then, release metal clip and remove the center seat frame finisher (1).

    : Metal clip
    : Front

Disassembly

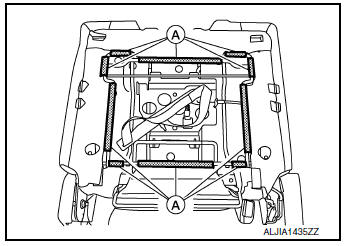

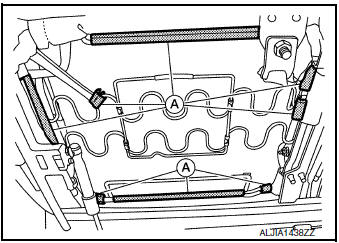

  1. Release J-hooks (A) from seat frame and remove seat cushion trim and seat cushion pad.

Disassembly

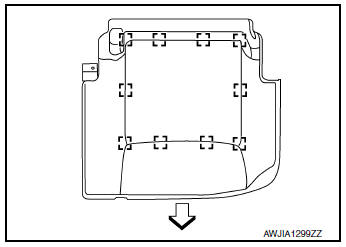

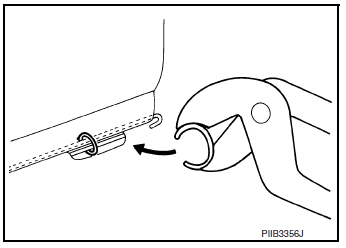

  1. Remove hog rings and separate the seat cushion trim from the seat cushion pad.

    NOTE: Remove all pieces of hog rings and discard them. : Hog ring : Front

Disassembly

ASSEMBLY

Assembly is in the reverse order of disassembly.

Assembly
