Nissan Rogue Service Manual: System description

STRUCTURE AND OPERATION

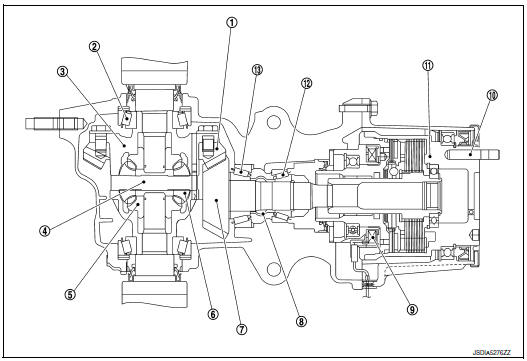

Sectional View

Sectional View

  1. Drive gear
  2. Side bearing
  3. Differential case
  4. Pinion mate shaft
  5. Side gear
  6. Pinion mate gear
  7. Drive pinion
  8. Collapsible spacer
  9. AWD solenoid
  10. Stud bolt
  11. Electric controlled coupling
  12. Pinion front bearing
  13. Pinion rear bearing

Electric Controlled Coupling

The electric controlled coupling operates as the AWD system. For the operation, refer to DLN-12, "Operation Description".
