Nissan Rogue Service Manual: System description

COMPONENT PARTS

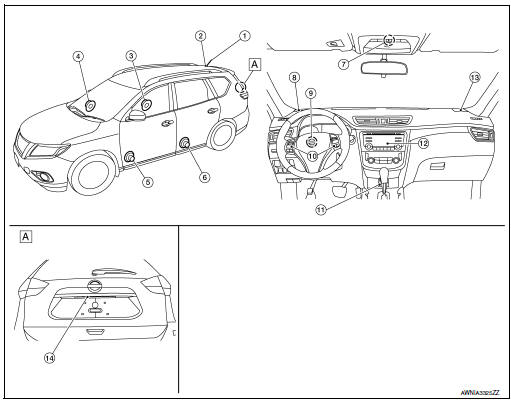

Component Parts Location

Component Parts Location

  1. Center of back door

No.

Component

Function

1 Rod antenna Refer to AV-14, "Rod Antenna, Antenna Amp., Satellite Antenna and Antenna  Feeder".
2 Antenna base (antenna amp. and satellite antenna)
3 Rear door speaker RH Refer to AV-12, "Speakers".
4 Front door speaker RH
5 Front door speaker LH
6 Rear door speaker LH
7 Microphone Refer to AV-13, "Microphone".
8 Front tweeter LH Refer to AV-12, "Speakers".
9 Steering angle sensor Refer to AV-14, "Steering Angle Sensor".
10 Steering switches Refer to AV-13, "Steering Switches".
11 USB interface and AUX in jack Refer to AV-13, "USB Interface and AUX in Jack".
12 Audio unit Refer to AV-12, "Audio Unit".
13 Front tweeter RH Refer to AV-12, "Speakers".
14 Rear view camera Refer to AV-13, "Rear View Camera".

Audio Unit

Description

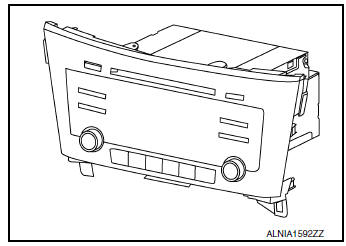

Audio Unit

Speakers

FRONT TWEETER

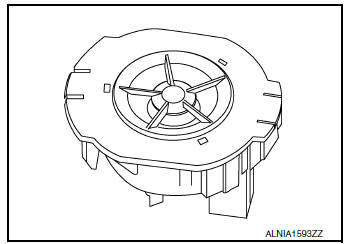

Front tweeter

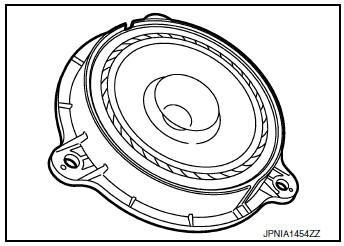

FRONT DOOR SPEAKER

Front door speaker

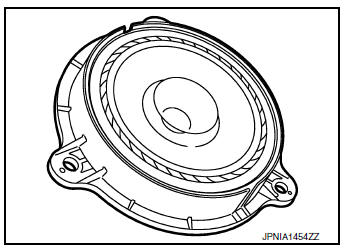

REAR DOOR SPEAKER

Rear door speaker

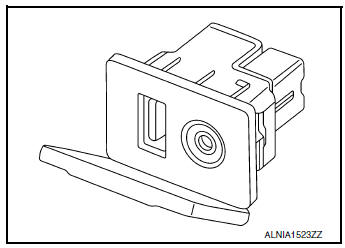

USB Interface and AUX in Jack

USB Interface and AUX in Jack

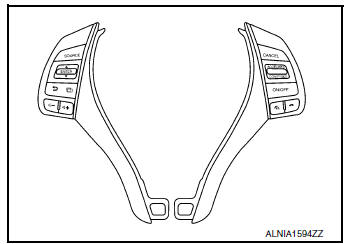

Steering Switches

Steering Switches

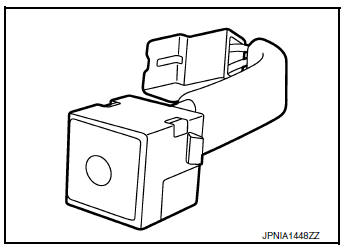

Microphone

Microphone

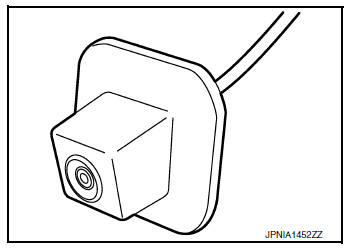

Rear View Camera

Rear View Camera

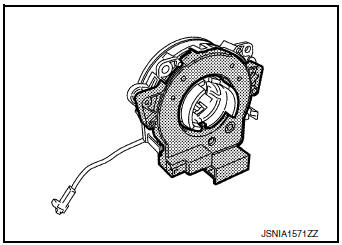

Steering Angle Sensor

Steering Angle Sensor

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

RADIO ANTENNA AND SATELLITE ANTENNA

AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna amp. and satellite antenna are built into the antenna base.

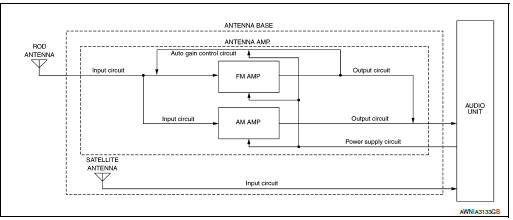

Radio antenna and satellite antenna

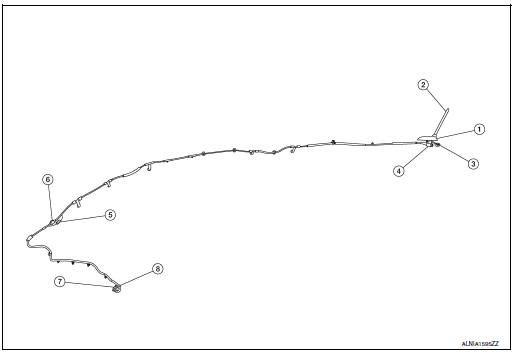

ANTENNA FEEDER LAYOUT

Antenna feeder layout

  1. Antenna base (antenna amp. and satellite antenna)
  2.  Rod Antenna
  3. M503
  4.  M502
  5. M130, M501
  6. M129, M500
  7.  M126
  8.  M124

SYSTEM

System Description

SYSTEM DIAGRAM

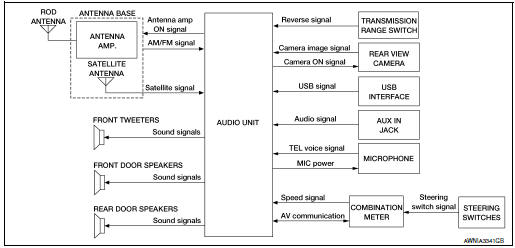

System diagram

AUDIO SYSTEM

The audio system consists of the following components

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the audio unit. The audio unit then sends audio signals to the front tweeters, front door speakers and rear door speakers.

Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

When A Call Is Originated

When Receiving A Call

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control level can be selected by the customer. Refer to Owner's Manual for operating instructions.

REAR VIEW MONITOR FUNCTION

Camera Image Operation Principle

DIAGNOSIS SYSTEM (AUDIO UNIT)

Description

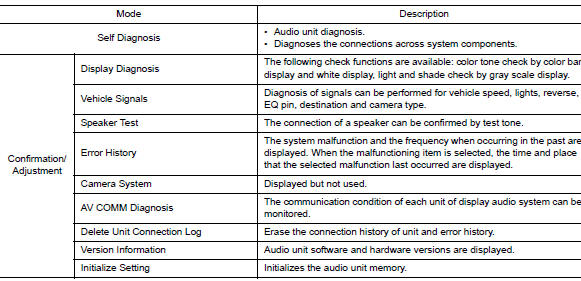

The audio unit on board diagnosis performs the functions listed in the table below:

Description

On Board Diagnosis Function

METHOD OF STARTING

  1.  Turn the ignition ON.
  2.  Turn the audio system OFF.

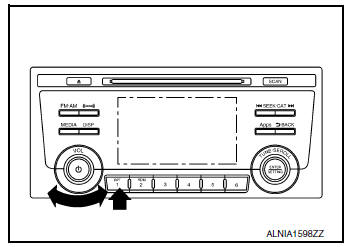

  3.  While pressing the preset 1 button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. Shifting from current screen to previous screen is performed by pressing BACK button.

Method of starting

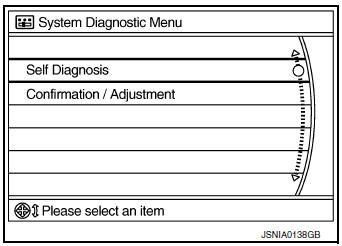

  1. The trouble diagnosis initial screen is displayed, and Self Diagnosis or Confirmation/Adjustment can be selected.

Method of starting

SELF DIAGNOSIS MODE

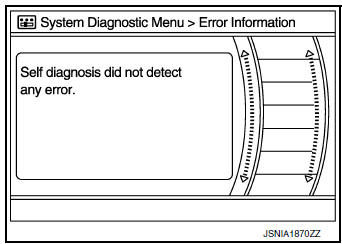

Audio Unit Self Diagnosis

  1.  Select Self Diagnosis.
  2. Self diagnosis screen is displayed. The bar graph visible in center of screen indicates progress of self diagnosis.
  3.  Diagnosis results are displayed after the self diagnosis is completed.

    The unit names and the connection lines are color coded according to the diagnostic results.

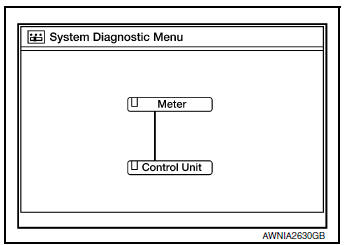

Audio Unit Self Diagnosis

Audio Unit Self Diagnosis

1: Control unit (audio unit) is displayed in red.

  1.  Comments of self diagnosis results can be viewed in the diagnosis result screen.

Audio Unit Self Diagnosis

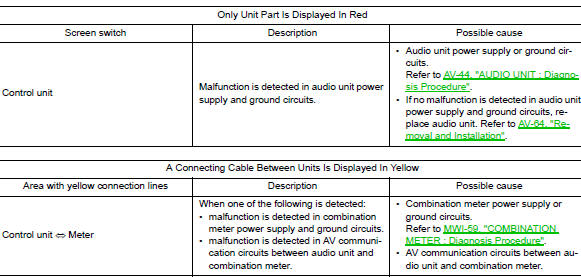

Audio Unit Self Diagnosis Results

Audio Unit Self Diagnosis Results

Audio Unit Confirmation/Adjustment

  1.  Select Confirmation/Adjustment.
  2.  Select each switch on the Confirmation/Adjustment screen to display the relevant trouble diagnosis screen. Press the BACK switch to return to the initial Confirmation/Adjustment screen.

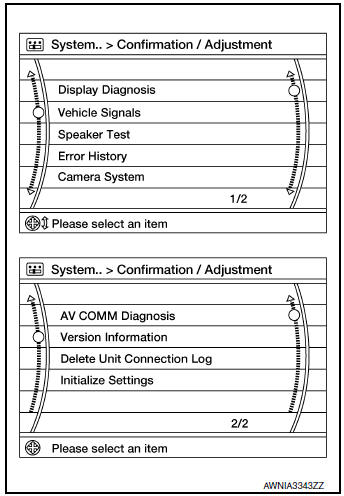

Audio Unit Confirmation/Adjustment

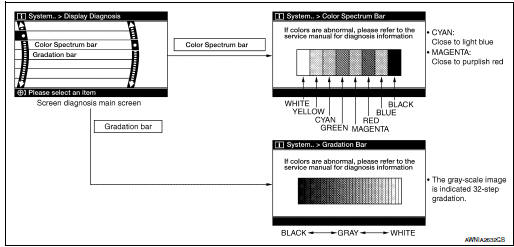

Display Diagnosis

Display Diagnosis

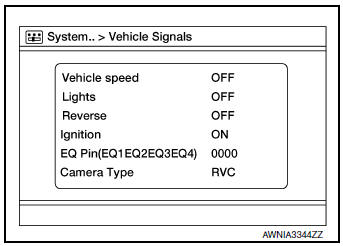

Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Vehicle Signals

Speaker Test

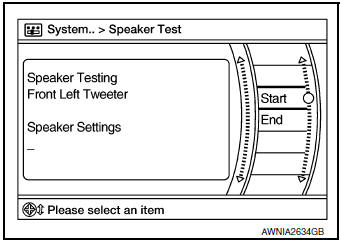

Select Speaker Test to display the Speaker Diagnosis screen. Press Start to generate a test tone in a speaker. Press Start again to generate a test tone in the next speaker. Press End to stop the test tones.

Speaker Test

Error History

The self diagnosis results are judged depending on whether any error occurs from when Self Diagnosis is selected until the self diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned ON and then no error has occurred until the self diagnosis start. Check the Error Record to detect any error that may have occurred before the self diagnosis start because of this situation.

The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item.

Count up method A

Count up method B

Count up method B

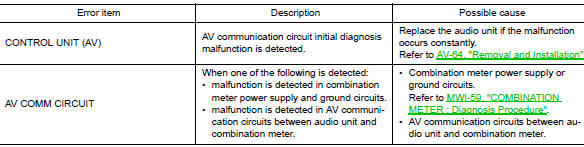

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items

Error item

Camera System

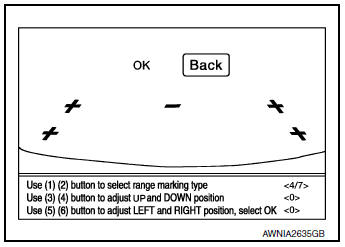

This mode is used to adjust the guide line display position of the rear view camera.

Camera System

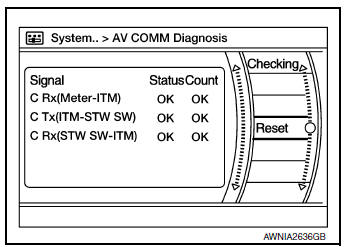

AV COMM Diagnosis

AV COMM Diagnosis

AV COMM Diagnosis

NOTE: “???” indicates UNKWN.

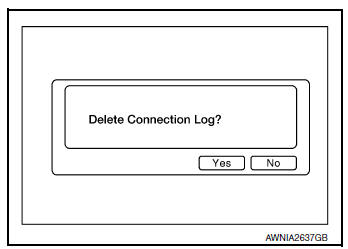

Delete Unit Connection Log

Deletes any unit connection records and error records from the audio unit memory (clears the records of the unit that has been removed).

Delete Unit Connection Log

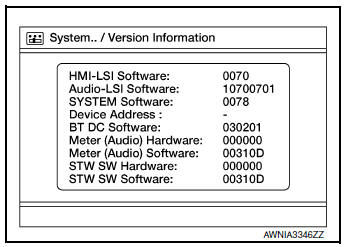

Version Information

Displays audio unit software and hardware version numbers.

Version Information

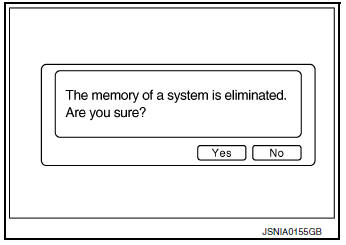

Initialize Settings

Deletes data stored from the audio unit.

Initialize Settings

Preparation
Special Service Tool The actual shape of the tools may differ from those illustrated here. Tool number (TechMate No.) Tool name Description — (J-46534) Trim ...

ECU diagnosis information
AUDIO UNIT Reference Value TERMINAL LAYOUT PHYSICAL VALUES ...
