Nissan Rogue Service Manual: Steering gear and linkage

Exploded View

REMOVAL AND INSTALLATION

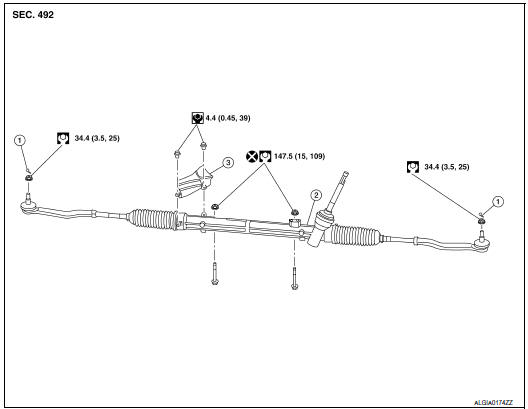

Exploded View

  1. Cotter pin
  2.  Steering gear
  3.  Heat shiel

Removal and Installation

REMOVAL

  1.  Set the front wheels and tires to the straight-ahead position.
  2.  Remove the floor cover. Refer to ST-12, "Exploded View".
  3.  Remove the floor seal. Refer to ST-12, "Exploded View".

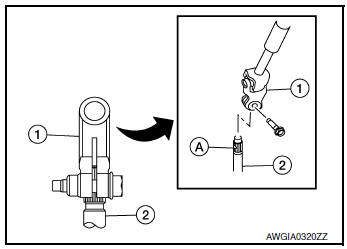

  4.  Remove the joint retaining bolt and separate the steering column yoke from the steering gear pinion shaft.

    Refer to ST-12, "Exploded View".

  5.  Remove the cotter pins (LH/RH), nuts (LH/RH) and disconnect the outer sockets (LH/RH).
  6.  Separate the stabilizer connecting rods (LH/RH) from the stabilizer bar. Refer to FSU-20, "Exploded View".
  7.  Disconnect the harness connector for oxygen sensor 2. Refer to EX-5, "Exploded View"
  8.  Remove the front exhaust tube. Refer to EX-5, "Exploded View".
  9.  Remove the center exhaust tube. Refer to EX-5, "Exploded View".
  10. . Remove the lower torque rod. Refer to EM-81, "Exploded View".
  11. . Remove front suspension member stay and support the front suspension using a suitable jack. Refer to FSU-20, "Exploded View".
  12.  Remove bolts and remove the steering gear.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Installation

Inspection

INSPECTION AFTER INSTALLATION
