Nissan Rogue Service Manual: Spark plug

Nissan Rogue Service Manual / Engine / Engine Mechanical / Periodic maintenance / Spark plug

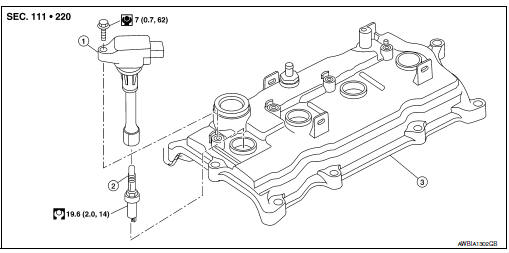

Exploded view

Exploded view

Ignition coil
Spark plug
Rocker cover

Removal and installation

REMOVAL

Remove air duct assembly.
Remove ignition coil. Refer to EM-36, "Exploded View".

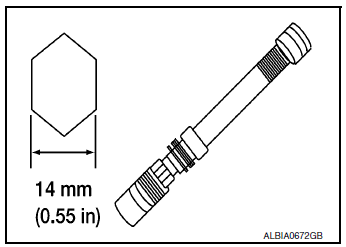

Remove spark plug using Tool.

Tool number : — (J-48891)

Removal and Installation

INSPECTION AFTER REMOVAL

Visually check the electrode for dirt and wear and the insulator for burning.

Removal and Installation

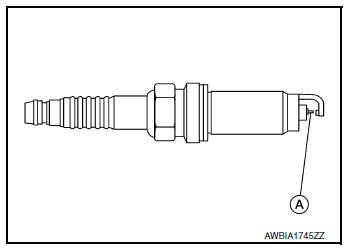

(A) : Iridium alloy

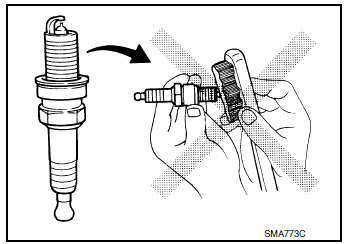

Do not use a wire brush for cleaning the spark plugs. Replace as necessary.

Removal and installation

If plug is covered with carbon, a spark plug cleaner may be used.

Cleaner air pressure : less than 588 kPa (6 kg/cm2, 85 psi)
Cleaning time : less than 20 seconds

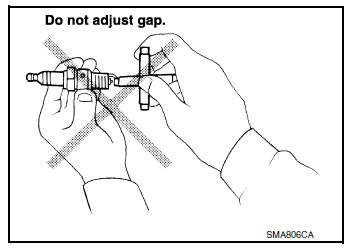

Checking and adjusting plug gap is not required between change intervals. If the gap is out of specification, replace the spark plug.

CAUTION: Do not drop or shock plug.

Removal and installation

INSTALLATION

Installation is in the reverse order of removal.

Standard type*	DENSO
Standard type*	FXE20HE11C
Gap (nominal)	1.1 mm (0.043 in)

*: Always check with the Parts Department for the latest parts information.
